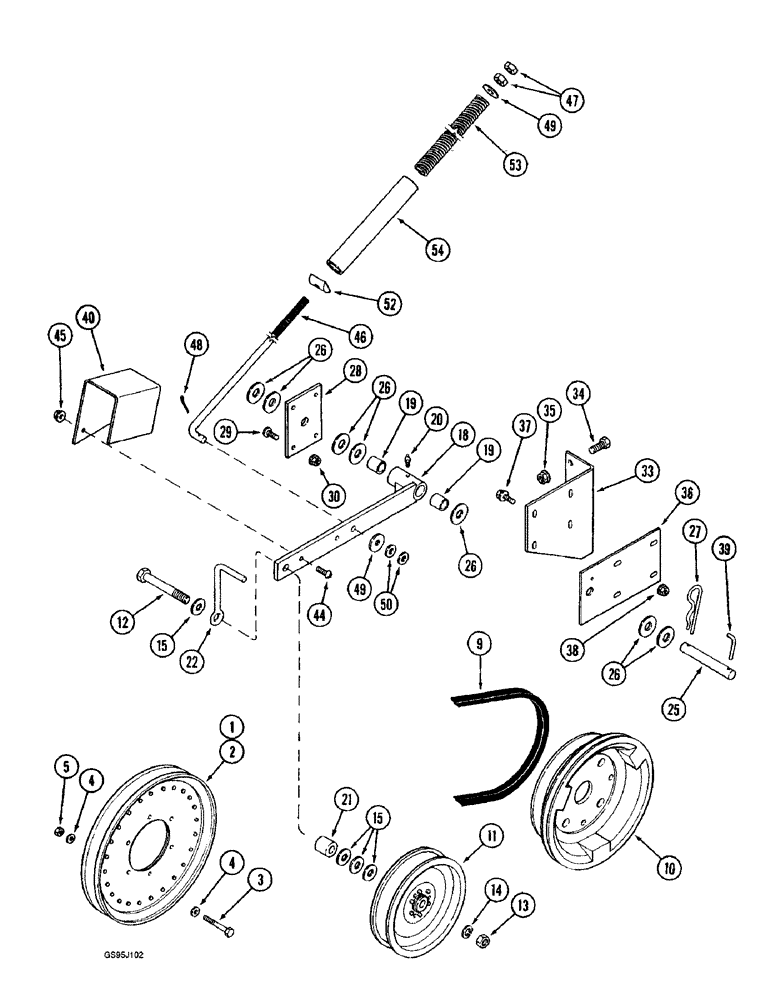

Запчасти Case IH 1682 (9-150) - CLEANING UNIT BELT DRIVE (09) - CHASSIS ATTACHMENTS

1

183325C1

PULLEY

- driven, cleaning unit, 13 inch

1шт.

2

1308402C1

PULLEY

- driven, cleaning unit, 12-1/2 inch

1шт.

3

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

3шт.

4

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch (Replaces washer 142619H)

6шт.

5

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

3шт.

9

185712C1

BELT,22.33 mm W x 3492.69 mm L

V-BELT , Drive 22.33 mm W x 3492.69 mm L

1шт.

10

1324825C1

PULLEY

- drive, jackshaft

1шт.

11

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

- idler, jackshaft drive, 8 inch

1шт.

12

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

- hex, 5/8 NC x 4-1/4 inch

1шт.

13

129-107

NUT,5/8"-11, G5

(Replaces nut 124589) 5/8"-11, G5

1шт.

14

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

15

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

4шт.

18

189631C92

LEVER

ASSEMBLY - idler, Includes: Ref. 19

1шт.

19

556448R1

BUSHING,19.07mm ID x 22.23mm OD x 25.4mm L

- lever, pivot, lever

2шт.

20

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

21

184944C1

SPACER

- pulley, tightener

1шт.

22

194894C1

ROD

- belt, upper, belt support

1шт.

25

187165C1

PIN

- stud, pivot arm

1шт.

26

495-81044

WASHER,0.78" ID x 1.75" OD x 0.12" Thk

- flat, 25/32 x 1-3/4 x 5/32 inch (Replaces washer 21713R1)

7шт.

27

471194R1

AXLE PIN

PIN - cotter, 1/4 inch hair type

1шт.

28

191466C1

BAR

PLATE - arm, drive

1шт.

29

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

4шт.

30

231-5146

FLANGE NUT,3/8"-16

4шт.

33

184946C1

SUPPORT

- idler

1шт.

34

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

- hex, 1/2 NC x 1-1/4 inch, grade 8 (Replaces bolt 455000)

2шт.

35

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

2шт.

36

184945C1

BAR

PLATE - idler, jackshaft

1шт.

37

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

4шт.

38

231-5146

FLANGE NUT,3/8"-16

4шт.

39

55074C1

PIN

STOP - idler lever

1шт.

40

1313968C1

SHIELD

- belt, jackshaft

1шт.

44

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

2шт.

45

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

46

191531C2

ROD

- idler lever, tightener

1шт.

47

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

48

432-1216

COTTER PIN,3/16" x 1"

1шт.

49

495-81163

WASHER,17/32" x 1 1/2" x .120"

- flat, 17/32 x 1-1/2 x 7/64 inch (Replaces washer 460908R1)

2шт.

50

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

52

194652C1

PIVOT

- rod, seat

1шт.

53

155311C1

SPRING

- rod, arm

1шт.

54

192938C2

TUBE

SPACER - spring, rod

1шт.
