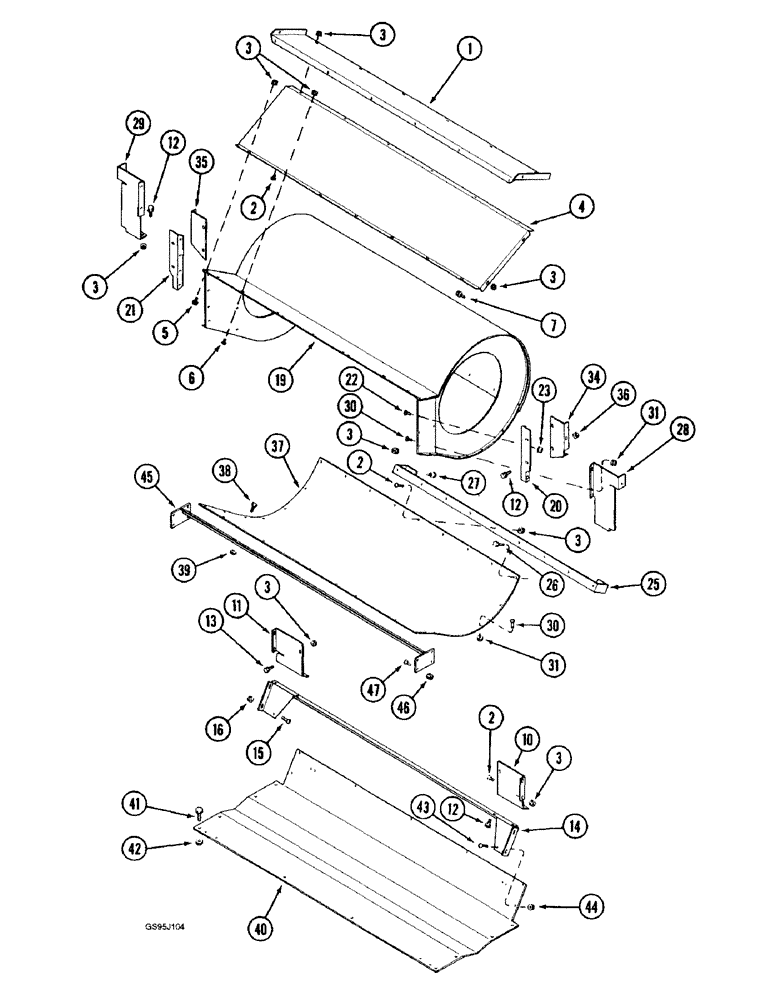

Запчасти Case IH 1682 (9-154) - CLEANING FAN SHIELDS (09) - CHASSIS ATTACHMENTS

1

192065C1

SUPPORT

- seal, chaffer front

1шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

4

192067C1

SUPPORT

- pan, trough

1шт.

5

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

2шт.

6

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

1шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

10

188113C2

SUPPORT

- intake, fan front right-hand

1шт.

11

188112C2

SUPPORT

- intake, fan front left-hand

1шт.

12

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

13

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

2шт.

14

194715C2

SUPPORT

- fan, bottom (Replaces support 194715C1)

1шт.

15

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

4шт.

16

231-5146

FLANGE NUT,3/8"-16

4шт.

19

1324002C91

KIT

HOUSING KIT - cleaning fan, Includes: Ref. 20 - 23

1шт.

20

186714C2

EXTENSION

- filler, housing right-hand

1шт.

21

186713C2

KIT

EXTENSION - filler, housing left-hand

1шт.

22

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, (Replaces nut 188471C1) Flg, 5/16"-18

8шт.

23

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

8шт.

25

191930C1

STRIP

SUPPORT - front

1шт.

26

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

27

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

28

188115C2

SUPPORT

- rear, intake right-hand

1шт.

29

188114C2

SUPPORT

- rear, intake left-hand

1шт.

30

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 NC x 1/2 inch

1шт.

31

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

34

186716C1

SUPPORT

- side, fan right-hand

1шт.

35

186715C1

SUPPORT

- fside, fan left-hand

1шт.

36

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, (Replaces nut 188471C1) Flg, 5/16"-18

1шт.

37

191927C1

SUPPORT

- bottom, housing

1шт.

38

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 inch - 18 NC x 3/4 inch (Replaces bolt 180077)

6шт.

39

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, (Replaces nut 188471C1) Flg, 5/16"-18

6шт.

40

194718C1

SUPPORT

- bottom, housing

1шт.

41

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch

8шт.

42

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

43

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

7шт.

44

231-5146

FLANGE NUT,3/8"-16

7шт.

45

191928C1

SUPPORT

- fan housing, rear

1шт.

46

231-5146

FLANGE NUT,3/8"-16

8шт.

47

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

8шт.
