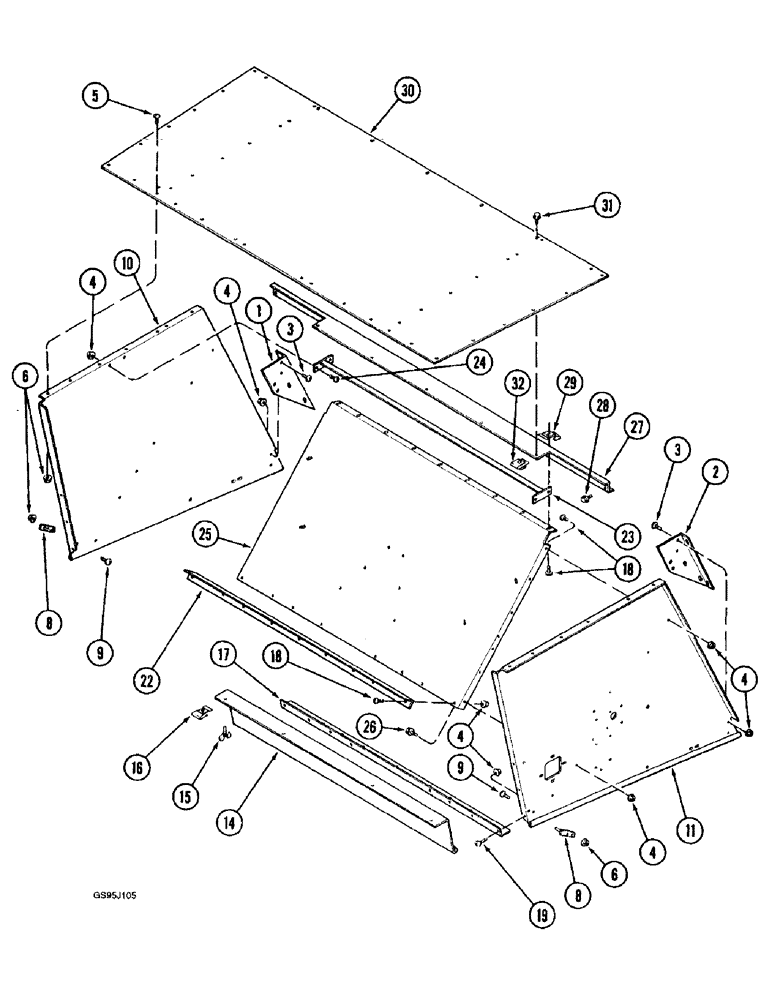

Запчасти Case IH 1682 (9-156) - SEPARATOR HOOD (09) - CHASSIS ATTACHMENTS

1

195447C1

SUPPORT

- support, hood extension left-hand

1шт.

2

195448C1

SUPPORT

- support, hood extension right-hand

1шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

4шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

5

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

1шт.

6

231-5146

FLANGE NUT,3/8"-16

1шт.

8

189593C1

BAR

- rear door

2шт.

9

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

1шт.

10

1307276C91

SHEET

SUPPORT - hood, left-hand

1шт.

11

1307277C91

SHEET

SUPPORT - hood, right-hand

1шт.

14

189592C1

DOOR

- lower, rear

1шт.

15

176978C1

THUMB SCREW,5/16" - 18 x 0.75"

- thumb, 5/16 NC x 3/4 inch

4шт.

16

488837C1

SPRING NUT

- speed, 5/16 inch NC

4шт.

17

192304C1

ANGLE

- rear support

1шт.

18

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

1шт.

19

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

- slotted truss head, 5/16 NC x 1-1/4 inch

1шт.

22

194306C1

ANGLE

- stiffener, deflector

1шт.

23

189595C1

ANGLE

- support

1шт.

24

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

4шт.

25

192306C6

SHIELD

DEFLECTOR - discharge, straw (Replaces deflector 192306C5)

1шт.

26

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

9шт.

27

189586C1

SUPPORT

- tie, rear deck

1шт.

28

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

29

670472R1

SPRING NUT,J, Ret, 5/16"-18

- retainer, J-type

2шт.

30

189590C1

PROTECTION PLATE

PLATE - cover, separator top

1шт.

31

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

3шт.

32

488837C1

SPRING NUT

- speed, 5/16 inch NC

3шт.
