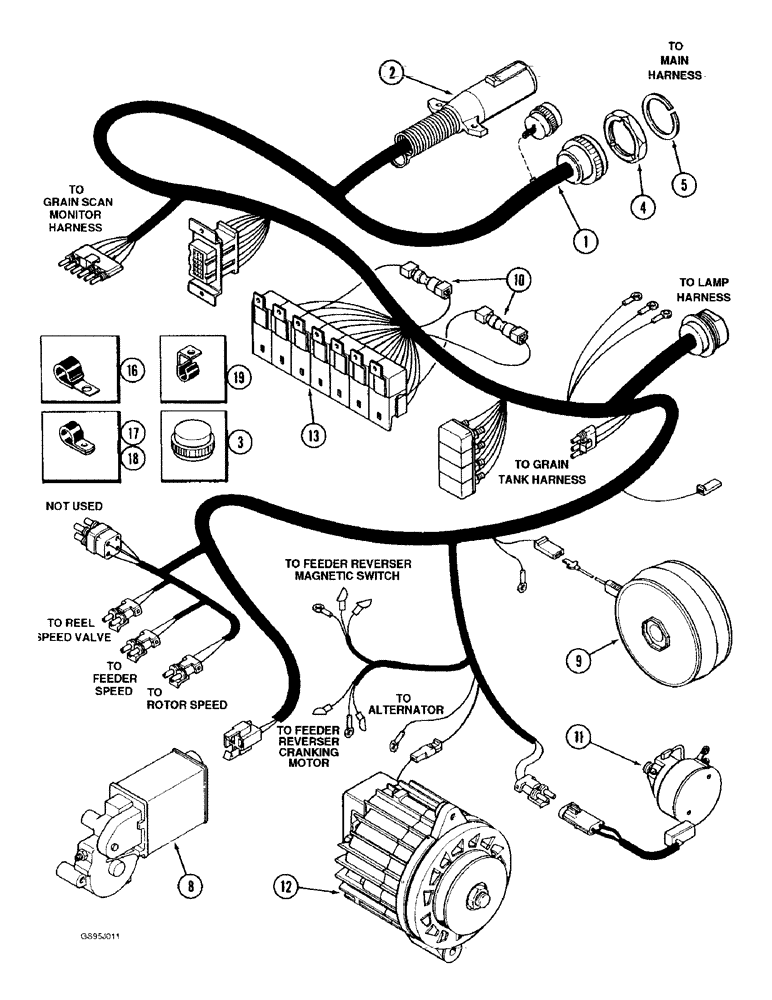

Запчасти Case IH 1682 (4-12) - MAIN HARNESS (06) - ELECTRICAL

1

91749C3

HARNESS

ASSEMBLY - main (Replaces harness assembly 91749C2), Includes: Ref. 2

1шт.

2

121646C1

TERMINAL CONNECTOR,Female

CONNECTOR - male, 7 pin, coupler

1шт.

3

245043C1

CAP

- connector, multiple

1шт.

4

459329C1

NUT

- hex, No. 24

1шт.

5

459330C1

LOCK WASHER

WASHER - lock, No. 24

1шт.

8

126573C1

MOTOR, ELECTRIC

MOTOR - variable speed, fan speed

1шт.

9

196978C91

LIGHT

LAMP ASSEMBLY - flasher, right-hand front, parts list Figure 4-9

1шт.

10

548239R2

RECTIFIER

DIODE - nonlocking, 2-31/64 inch long, harness

2шт.

11

91807C1

BRUSH HOLDER

HOLDER - brush, feeder clutch

1шт.

12

91900C91

ALTERNATOR

ASSEMBLY - reverser, parts list Figure 4-22

1шт.

13

146461C1

RELAY

- air conditioning, electrical (Replaces relay 3221235R2)

7шт.

16

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type, harness

12шт.

17

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type (Replaces clip 406381C1) 1", Insul, 3/8" Bolt

10шт.

18

401275R1

CLIP - harness

6шт.

19

91658C1

CLIP

- harness

8шт.
