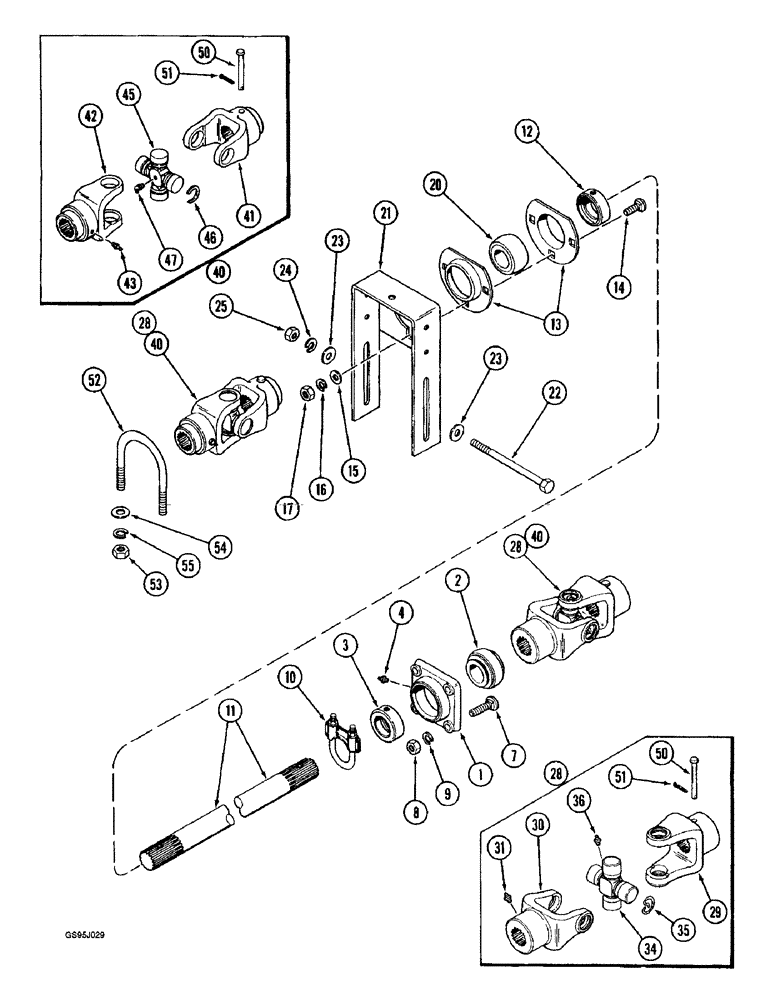

Запчасти Case IH 1682 (9-004) - MAIN DRIVE SHAFT AND SUPPORTS (09) - CHASSIS ATTACHMENTS

189515C91

BEARING ASSY

BEARING ASSEMBLY - front, PTO shaft, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - bearing

1шт.

2

483350R91

BALL BEARING,41.27mm ID x 85mm OD x 22mm W

BEARING - shaft

1шт.

3

557119R11

COLLAR

COLLAR - bearing

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

7

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - carriage, 1/2 NC x 1-3/4 inch (Replaces bolt 466972R1)

4шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

10

549914C91

CLAMP

- shaft

1шт.

11

189495C1

SHAFT

- drive, power

1шт.

12

557119R11

COLLAR

COLLAR - shaft

2шт.

13

189490C1

FLANGE

- bearing, front and rear

4шт.

14

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch

6шт.

15

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

6шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

20

187241C91

BEARING

- center and rear

2шт.

21

189507C1

SUPPORT

- bearing, center and rear

2шт.

22

413-8136

BOLT,Hex, 1/2" - 13 x 8-1/2", Gr 5

- hex, 1/2 NC x 8-1/2 inch (Replaces bolt 20497R1)

2шт.

23

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER - flat, special, 17/32 x 1-1/2 x 3/16 inch (13 x 38 x 5 mm)

4шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

25

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

28

181902C91

JOINT ASSY.

JOINT ASSEMBLY - PTO (Walterscheid), Includes: Ref. 29 - 36

1шт.

29

1313962C1

FORK

YOKE - spline

1шт.

30

1313963C1

FORK

YOKE - slip

1шт.

31

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

133137C91

KIT

- universal joint

1шт.

34

NSS

NOT SOLD SEPARAT

CROSS - bearing

1шт.

35

913713R1

RING, SNAP

RING - retaining

4шт.

36

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 65 degree, 1/8 PT x 7/8 inch

1шт.

40

189618C92

GASKET

JOINT ASSEMBLY - PTO (Rexnord), Includes: Ref. 41 - 47

1шт.

41

189619C1

FORK

YOKE - spline

1шт.

42

1313805C1

FORK

YOKE - slip

1шт.

43

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4-28 special threads x 1/2 inch

1шт.

802496

JOURNAL

KIT - universal joint (Replaces kit 493849R91), Includes: Ref. 45 - 47

1шт.

45

NSS

NOT SOLD SEPARAT

CROSS - bearing

1шт.

46

540057R1

RING

- retaining, internal

4шт.

47

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING - grease, 65 degree, 1/8 PT, if used

1шт.

47

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper, if used 1/4"-28 NPT x .54" lg

1шт.

47

933731R91

LUBE NIPPLE,45 Degree, M10 x 1

FITTING - grease, 45 degree, 10 mm-1, if used

1шт.

50

189654C1

PIN

- headed, 3/8 x 3-1/4 inch

1шт.

51

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

52

1305511C1

BOLT

- U-type, drive gear

1шт.

53

425-1010

NUT,5/8"-11, G5

2шт.

54

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

2шт.

55

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
