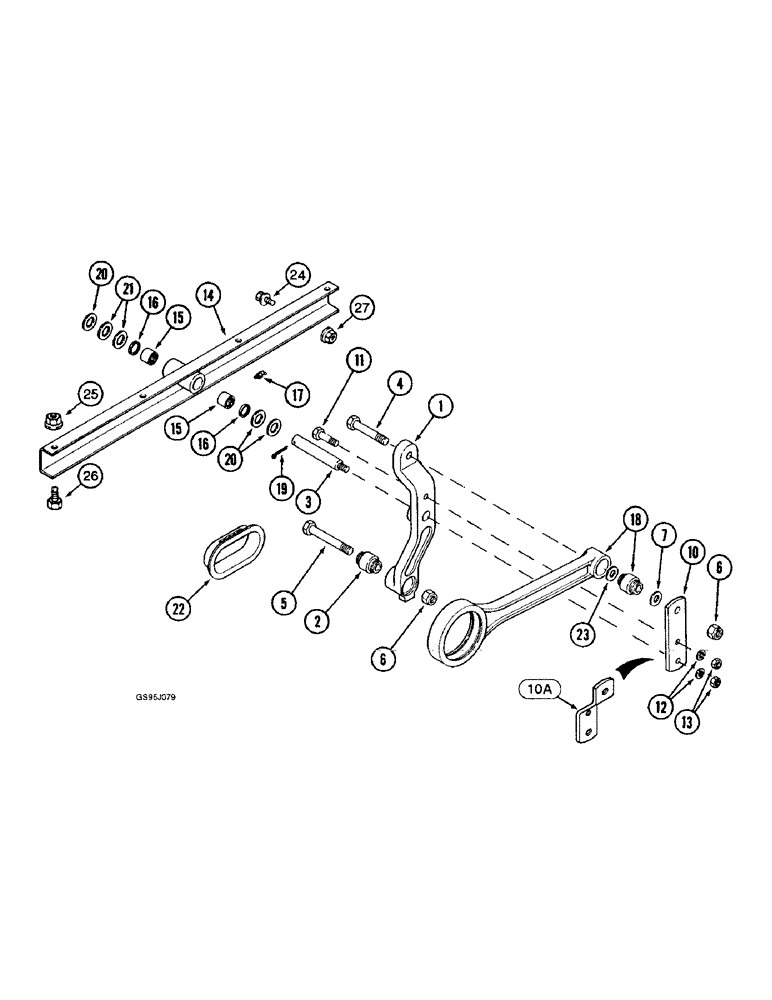

Запчасти Case IH 1682 (9-104) - SHOE CHAFFER HANGER AND SUPPORT (09) - CHASSIS ATTACHMENTS

1

1321374C91

LEVER ASSY.

LEVER ASSEMBLY - chaffer drive hanger, no longer used, order lever assembly 1957467C2, Includes: Ref. 2 & 3

2шт.

1

1957467C2

LEVER

ASSEMBLY - chaffer drive hanger, replaces lever assembly 1321374C91, Includes: Ref. 2 & 3

2шт.

2

1330323C2

BUSHING

- chaffer drive hanger, 5/8 x 1-1/2 x 2-57/64 inch, used with lever assembly 1957467C2

1шт.

2

186597C1

BUSHING,16mm ID x 38.23mm OD x 44.7mm L

- chaffer drive hanger arm, used with lever assembly 1321374C91

1шт.

3

1979251C1

SHAFT

- hanger arm, used with lever assembly 1957467C1

1шт.

3

186740C1

PIN,22.25mm OD x 147.32mm L

SHAFT - hanger arm, used with lever assembly 1321374C91

1шт.

4

326-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- hex, 5/8 NC x 3-1/2 inch, grade 8 (Replaces bolt 22228R1)

2шт.

5

326-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

- hex, 5/8 NC x 4-1/2 inch, grade 8 (Replaces bolt 21217R1)

2шт.

6

232-41110

NUT,5/8"-11, GC

NUT, LOCK, (Replaces nut 9412231) 5/8"-11, GC

4шт.

7

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

1шт.

10

186752C1

BAR

- pitman stablizer, if used

2шт.

10a

1957462C1

BAR

- pitman stabilizer, if used

2шт.

11

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

14

186651C92

SUPPORT

ASSEMBLY - front hanger (Replaces support 186651C91), Includes: Ref. 15 & 16

2шт.

15

G10642

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 19.05mm W

BEARING - hanger (Replaces bearing 551139R91)

2шт.

16

372756R91

OIL SEAL,20.45mm ID x 28.68mm OD x 3.17mm Thk

- support bearing

2шт.

17

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

FITTING - grease, 45 degree, 1/4-28 special taper x 13/16 inch

2шт.

18

REF

INSTRUCTION

PITMAN - shaker shaft, parts list Figure 9-106

2шт.

19

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

2шт.

20

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

- flat, 29/32 x 1-1/2 x 7/64 inch (Replaces washer 21714R1)

6шт.

21

495-81056

WASHER,29/32" x 1 1/2" x 3/64

- flat, 29/32 x 1-1/2 x 3/64 inch (Replaces washer 21761R1)

4шт.

22

1302644C2

SEAL

- chaffer rail, pivot, front (Replaces seal 1302644C2)

2шт.

23

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, special, 41/64 x 1-1/4 x 1/8 inch

4шт.

24

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

25

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

12шт.

26

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

12шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.
