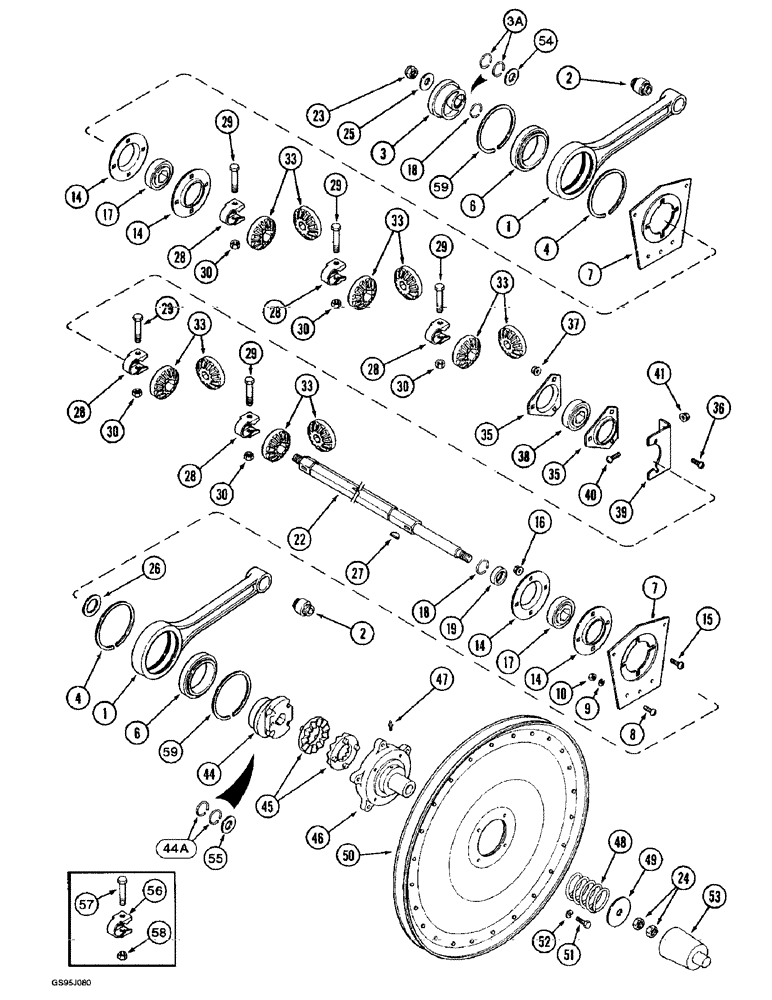

Запчасти Case IH 1682 (9-106) - SHOE SHAKER SHAFT AND AUGER DRIVE (09) - CHASSIS ATTACHMENTS

1

186738C91

PITMAN

ASSEMBLY - shaker shaft, Includes: Ref. 2

2шт.

1

1957458C2

ARM ASSY.

PITMAN ASSEMBLY - shaker shaft, used with heavy duty cleaning system, Includes: Ref. 2

2шт.

2

186597C1

BUSHING,16mm ID x 38.23mm OD x 44.7mm L

- pivot, pitman, used with pitman assembly 186738C91

1шт.

2

1330323C2

BUSHING

- pivot, pitman, used with pitman assembly 1957458C2

1шт.

3

183053C2

ECCENTRIC

CAM - drive, pitman left-hand

1шт.

3

1322573C1

CAM

- drive, pitman left-hand, used with retaining ring 1322623C1, item 3 below

1шт.

REF 3 1322573C1. TSG GAVE US THIS NOTE: "KEYWAY IS 5/16 IN THIS CAM. THE WIDTH AND DEPTH HAVE BEEN INCREASED. THE 1/4 INCH KEY PART NO DID NOT CHANGE. THE KEY IS USED FOR TIMIN GONLY AND THE STD KEYWAY TOLERANCES ARE NOT REQUIRED." CNS/CAM 6/19/98

1шт.

3a

1322623C1

RETAINER

RING - retaining, internal, 1-13/64 inch, used with cam 1322573C1, item 3 above

2шт.

4

1322624C1

SNAP RING

RING - snap (Replaces ring 892775C1)

2шт.

6

193132C91

BALL BEARING,82.55mm ID x 120.65mm OD x 25.4mm W

BEARING - shaker shaft pitman

2шт.

6

1322676C1

BALL BEARING,3.1496" ID x 4.9213" OD x 0.8661"

- shaker shaft pitman

2шт.

7

1302221C1

PLATE

- shaker shaft

2шт.

8

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

8шт.

10

425-106

NUT,3/8"-16, Cl 5

8шт.

14

181383C1

FLANGED BEARING,72.01mm ID x 122.24mm OD

FLANGE - bearing

4шт.

15

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

8шт.

16

231-5146

FLANGE NUT,3/8"-16

8шт.

17

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING - ball, shaft, shaker

2шт.

18

575186R1

SNAP RING

RING - snap, shaft, no longer used, order items 56 - 58, See Figure 9-107B

2шт.

19

935856R1

BUSHING

- shaft, shaker, no longer used, order items 56 - 58, See Figure 9-107B

1шт.

22

194176C1

SHAFT

- shaker, drive

1шт.

22

1322616C1

SHAFT

- shaker, drive

1шт.

23

232-41112

NUT,3/4"-10, GC

NUT, LOCK, , LH end of shaft 3/4"-10, GC

1шт.

24

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NC, right-hand end of shaft (Replaces nut 426897)

2шт.

25

495-81045

WASHER,25/32" x 1 3/4" x .179"

- flat, 25/32 x 1-3/4 x 5/32 inch (Replaces washer 23245R1)

1шт.

25

1979580C1

WASHER,19.05mm ID x 44.5mm OD x 11mm L

- shaker cam, if used

1шт.

26

495-81215

WASHER,35.71mm ID x 57.15mm OD x 3.4mm Thk

- flat, 1-13/32 x 2-1/4 x 7/64 inch

1шт.

27

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

28

225265R1

CLAMP

- gear auger

5шт.

29

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

5шт.

30

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

5шт.

33

1300639C1

GEAR-SET

GEAR - auger drive, set of two

5шт.

35

180955C1

FLANGED BEARING,0.375"

FLANGE - bearing

2шт.

36

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

3шт.

37

231-5146

FLANGE NUT,3/8"-16

3шт.

38

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING - ball, shaft, cross

1шт.

39

186589C1

SUPPORT

- center bearing

1шт.

40

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

2шт.

41

231-5146

FLANGE NUT,3/8"-16

2шт.

44

191429C2

CAM

- drive, pitman right-hand

1шт.

44

1322574C1

CAM

- drive, pitman right-hand, used with retaining ring 1322623C1, item 44A below

1шт.

44a

1322623C1

RETAINER

RING - retaining, internal, 1-13/64 inch, used with cam 1322574C1, item 44 above

2шт.

45

B12170

RATCHET,Clutch Slip, 94.49mm

- slip, shaft drive

2шт.

46

1303136C1

HUB

- clutch, slip ratchet

1шт.

47

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

48

19302K

SPRING

- shaker shaft drive, slip clutch

1шт.

49

388418C1

SPECIAL WASHER,19.84mm ID x 81.28mm OD x 6.35mm Thk

- special, retainer, spring

1шт.

50

1979876C1

PULLEY

- driven, shaker shaft, 24 inch (Replaces pulley 193682C1)

1шт.

51

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

52

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

53

182544C1

SHIELD

- insulator, shaker shaft spring

1шт.

54

1330336C1

WASHER,24mm ID x 31.65mm OD x 3mm Thk

- flat, special, 29/32 x 1-1/4 x 1/8 inch

1шт.

55

1979191C1

WASHER,27mm ID x 31.65mm OD x 3mm Thk

- flat, 1-1/16 x 1-1/4 x 1/8 inch

1шт.

56

225265R1

CLAMP

- gear auger

1шт.

57

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

58

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

1шт.

59

1979190C1

RETAINER

RING - retaining, external

2шт.
