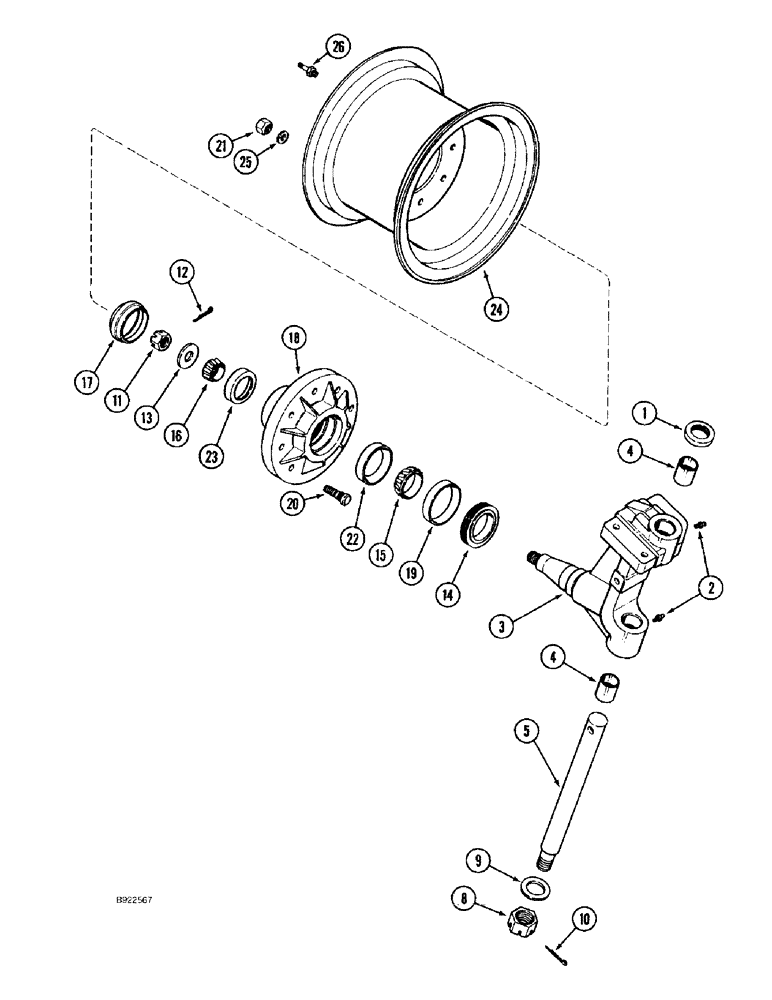

Запчасти Case IH 1688 (5-16) - STEERING KNUCKLE, HUB AND WHEELS (04) - STEERING

1

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

roller, steering knuckle, thrust

2шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

3

185439C91

STEERING KNUCKLE

steering, left hand, not shown, Includes: Ref. 4

1шт.

3

185440C91

STEERING KNUCKLE

steering, right hand, Includes: Ref. 4

1шт.

4

186680C1

BUSHING,50.93mm ID x 55.56mm OD x 50.8mm L

king pin

2шт.

5

186052C1

PIN,50.8mm OD x 508mm L

king

2шт.

8

25-1224

SLOTTED NUT,1 1/2"-6, G5

hex, slotted, 1-1/2 inch NC

2шт.

9

95-81041

WASHER,38.89mm ID x 76.2mm OD x 3.4mm Thk

flat, 1-17/32 x 3 x 7/64 inch

2шт.

10

432-1648

COTTER PIN,1/4" x 3"

1/4" x 3"

2шт.

11

425-1316

NUT,1"-14, G5

hex, slotted, 1 inch NS

2шт.

12

432-1228

COTTER PIN,3/16" x 1 3/4"

2шт.

13

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

flat, 1-1/32 x 2-1/4 x 1/4 inch

2шт.

14

169329C91

OIL SEAL,63.3mm ID x 95.81mm OD x 8mm Thk

oil

2шт.

15

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

tapered roller bearing, 2-1/16 inch ID

2шт.

16

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

tapered roller bearing, 1-5/8 inch ID

2шт.

17

560950R1

HUB CAP

wheel hub

2шт.

18

169293C11

HUB

ASSEMBLY wheel, Includes: Ref. 19 - 23

2шт.

19

169328C1

SLEEVE

RING wear, oil

1шт.

20

366021R2

BOLT,Round, 5/8" - 18 x 2 1/4"

fluted, 5/8 NF x 2-9/16 inch

8шт.

21

554480R1

WHEEL NUT

hex, special, 5/8 inch NF

8шт.

22

625743C1

BEARING CUP,90mm OD x 18.5mm W

tapered roller bearing, 3-35/64 inch OD

1шт.

23

663558R1

BEARING CUP

tapered roller bearing, 2-57/64 inch OD

1шт.

24

186642C2

WHEEL

18.4-16 inch tire, corn and grain

2шт.

24

1541719C1

RIM

WHEEL 12 x 24 inch, for 14.9 x 24 inch tire, corn, grain, or rice

2шт.

25

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

flat, 21/32 x 1-1/2 x 3/16 inch, hardened, used with 186642C2 wheel only

16шт.

26

179482C1

VALVE STEM

inflation, 7/16 inch diameter, used with 1541719C1 wheel

2шт.

26

407184R1

VALVE

inflation, tubeless

2шт.
