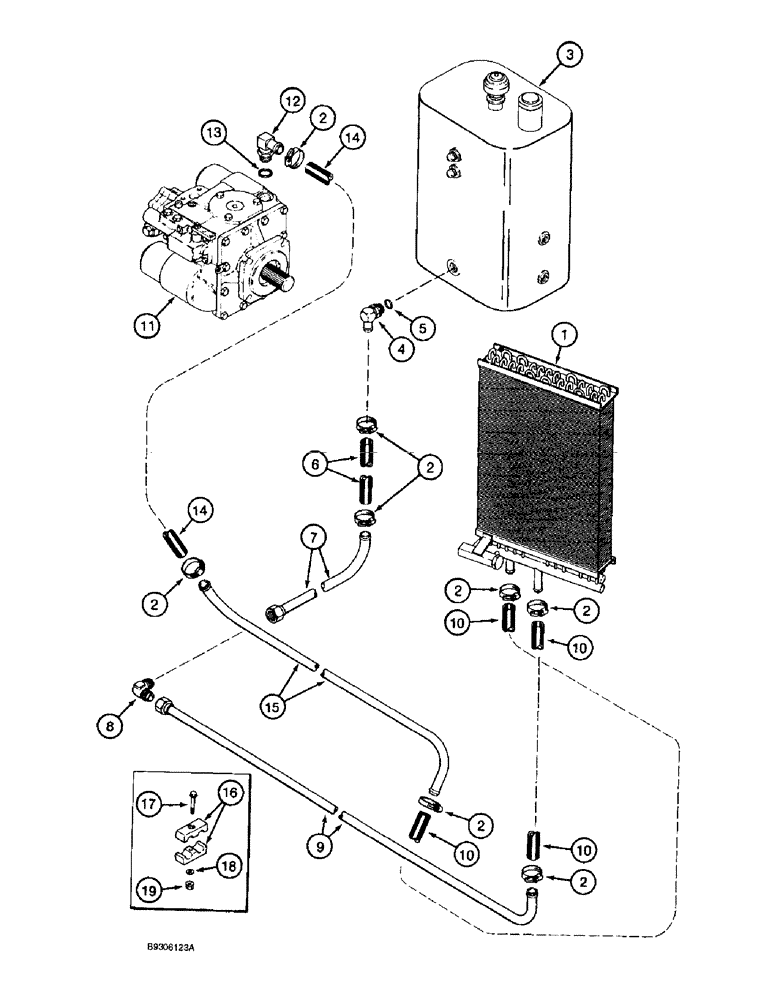

Запчасти Case IH 1688 (8-12) - OIL COOLER SYSTEM, CORN AND GRAIN COMBINE, WITHOUT POWER GUIDE AXLE (07) - HYDRAULICS

1

111078A3

COOLER

ASSEMBLY hydraulic oil, parts list Figure 8-20

1шт.

2

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

Adjustable

8шт.

3

1343660C1

RESERVOIR

ASSEMBLY hydraulic oil, 10 gallon, parts list Figure 8-2

1шт.

4

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

90 degree, 1 stem end x 1-5/16-12 inch adj O-ring boss, Includes: Ref. 5

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

6

1979763C2

HOSE

15-1/2 inch (394 mm) long, cut from 364361C1 bulk, see this Figure

1шт.

7

1979666C1

HYD TUBE,1" OD

cooler to reservoir

1шт.

8

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

ELBOW 90 degree, 1-5/16-12 inch flare x flare

1шт.

9

1324941C1

HYD TUBE,1" OD, 1790.5, 127 mm Length

TUBE oil cooler return

1шт.

10

1977227C2

HYDRAULIC HOSE

40-15/16 inch (1040 mm) long, cut from 364361C1 bulk, see this Figure

2шт.

11

1343716C2

PUMP, HYDROSTATIC

HYDROSTATIC PUMP ASSEMBLY parts list Figures 6-22 - 6-32

1шт.

87637528R

REMAN-HYDROSTAT PUMP

1688 (1/93-12/94), Reman for New P/N 1343716C2

1шт.

87637528C

CORE-HYDROSTAT PUMP

Return Number

1шт.

12

1546404C1

ELBOW

90 degree, 1-1/16-12 O-ring x 1 inch stem end, Includes: Ref. 13

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

1979762C2

HOSE

24-1/4 inch (610 mm) long, cut from 364361C1 bulk, see this Figure

1шт.

15

1979658C1

HYD TUBE,1" OD

oil cooler supply

1шт.

16

1347071C1

CLAMP

CLAMP 1 inch OD

2шт.

17

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

18

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

2шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

364361C1

HOSE

bulk, 1 (25) ID x 600 inch (15240 mm) long

1шт.
