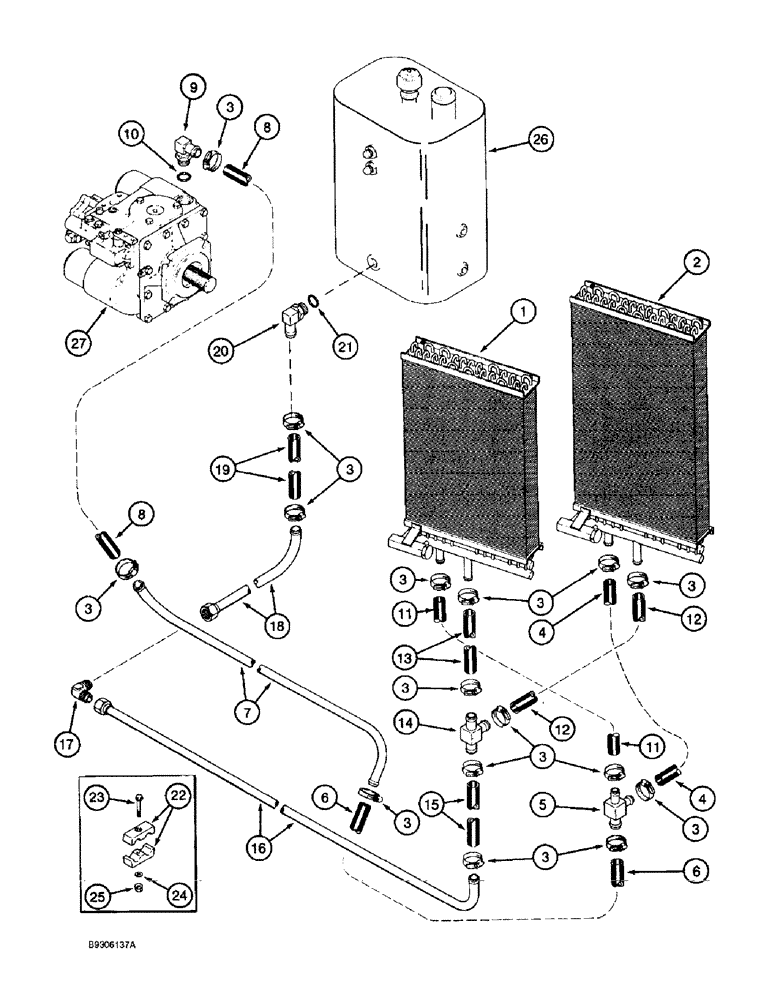

Запчасти Case IH 1688 (8-14) - OIL COOLER SYSTEM, RICE COMBINE, WITHOUT POWER GUIDE AXLE (07) - HYDRAULICS

1

111078A3

COOLER

ASSEMBLY hydraulic oil, standard, parts list Figure 8-20

1шт.

2

111078A3

COOLER

ASSEMBLY hydraulic oil, auxiliary, parts list Figure 8-22

1шт.

3

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

Adjustable

16шт.

4

1979763C1

HOSE

15-1/2 inch (394 mm) long, cut from 364361C1 bulk, tee to auxiliary cooler, see this Figure

1шт.

5

1979672C1

TEE

1 inch stem end, hose stem, cooler supply

1шт.

6

87707C2

HYDRAULIC HOSE,24.50 mm ID x mm

Cut From 364361C1 Bulk, Supply, Pump to Auxilary Cooler, See This Figure

1шт.

7

1979658C1

HYD TUBE,1" OD

oil cooler supply, to pump

1шт.

8

1979762C2

HOSE

24-1/4 inch (610 mm) long, cut from 364361C1 bulk, supply, pump to auxiliary cooler, see this Figure

1шт.

9

1546404C1

ELBOW

90 degree, 1-1/16-12 O-ring x 1 inch stem end, Includes: Ref. 10

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

87707C2

HYDRAULIC HOSE,24.50 mm ID x mm

Cut From 364361C1 Bulk, Supply, Tee to Standard Cooler, See This Figure

1шт.

12

87707C2

HYDRAULIC HOSE,24.50 mm ID x mm

Cut From 364361C1 Bulk, Return, Auxilary Cooler to Tee, See This Figure

1шт.

13

1979762C2

HOSE

24-1/4 inch (610 mm) long, cut from 364361C1 bulk, return, standard cooler to tee, see this Figure

1шт.

14

1979672C1

TEE

1 inch stem end, cooler return

1шт.

15

87707C2

HYDRAULIC HOSE,24.50 mm ID x mm

Cut From 364361C1 Bulk, Return to Reservoir, See This Figure

1шт.

16

1324941C1

HYD TUBE,1" OD, 1790.5, 127 mm Length

TUBE oil cooler return, to reservoir

1шт.

17

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

ELBOW 90 degree, 1-5/16-12 inch flare x flare

1шт.

18

1979666C1

HYD TUBE,1" OD

cooler to reservoir

1шт.

19

1979763C2

HOSE

15-1/2 inch (394 mm) long, cut from 364361C1 bulk, cooler to reservior, see this Figure

1шт.

20

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

90 degree, 1 stem end x 1-5/16-12 inch adj O-ring boss

1шт.

21

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

22

1347071C1

CLAMP

CLAMP 1 inch OD, tube retaining

2шт.

23

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

24

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

2шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

26

1343660C1

RESERVOIR

ASSEMBLY hydraulic oil, 10 gallon, parts list Figure 8-2

1шт.

27

108113A1

PUMP, HYDROSTATIC

SPARE PART ASSEMBLY hydrostatic, parts list Figures 6-22 - 6-28 and 6-32

1шт.

27

87637529R

REMAN-HYDROSTAT PUMP

1688 CASE IH AXIAL-FLOW COMBINE, SPARE PART ASSEMBLY hydrostatic (1/93-12/94), Reman for New PN 108113A1

1шт.

27

87637529C

CORE-HYDROSTAT PUMP

Return Number

1шт.

364361C1

HOSE

bulk, 1 (25) ID x 600 inch (15240 mm) long

1шт.
