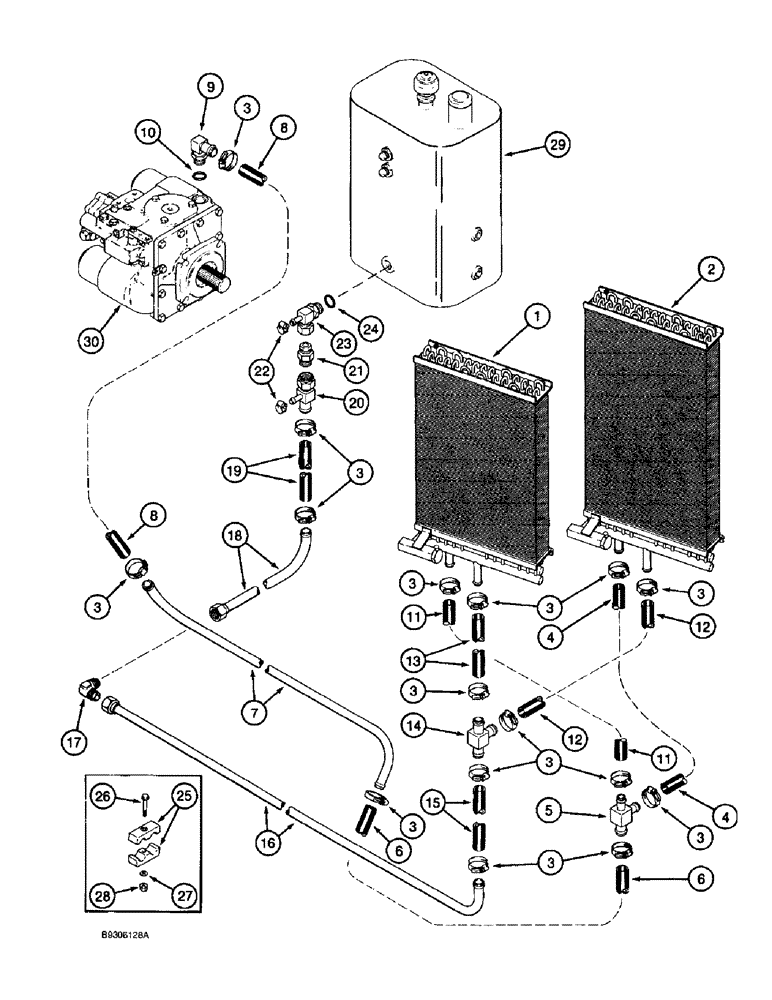

Запчасти Case IH 1688 (8-18) - OIL COOLER SYSTEM, RICE COMBINE, WITH POWER GUIDE AXLE (07) - HYDRAULICS

1

111078A3

COOLER

ASSEMBLY hydraulic oil, standard, parts list Figure 8-20

1шт.

2

111078A3

COOLER

ASSEMBLY hydraulic oil, hydraulic, parts list Figure 8-22

1шт.

3

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

Adjustable

16шт.

4

1979763C1

HOSE

15-1/2 inch (394 mm) long, cut from 364361C1 bulk, tee to auxiliary cooler, see this Figure

1шт.

5

1979672C1

TEE

1 inch stem end, cooler supply

1шт.

6

87707C2

HYDRAULIC HOSE,24.50 mm ID x mm

Cut From 364361C1 Bulk, Supply, Pump to Auxilary Cooler, See This Figure

1шт.

7

1979658C1

HYD TUBE,1" OD

oil cooler supply, to pump

1шт.

8

1979762C2

HOSE

24-1/4 inch (610 mm) long, cut from 364361C1 bulk, supply, pump to auxiliary cooler, see this Figure

1шт.

9

1546404C1

ELBOW

90 degree, 1-1/16-12 O-ring x 1 inch stem end, Includes: Ref. 10

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

87707C2

HYDRAULIC HOSE,24.50 mm ID x mm

Cut From 364361C1 Bulk, Supply, Tee to Standard Cooler, See This Figure

1шт.

12

87707C2

HYDRAULIC HOSE,24.50 mm ID x mm

Cut From 364361C1 Bulk, Return, Auxilary Cooler to Tee, See This Figure

1шт.

13

1979762C2

HOSE

24-1/4 inch (610 mm) long, cut from 364361C1 bulk, return, standard cooler to tee, see this Figure

1шт.

14

1979672C1

TEE

1 inch stem end, cooler return

1шт.

15

87707C2

HYDRAULIC HOSE,24.50 mm ID x mm

Cut From 364361C1 Bulk, Return to Reservoir, See This Figure

1шт.

16

1324941C1

HYD TUBE,1" OD, 1790.5, 127 mm Length

TUBE oil cooler return, to reservoir

1шт.

17

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

ELBOW 90 degree, 1-5/16-12 inch flare x flare

1шт.

18

1979666C1

HYD TUBE,1" OD

cooler to reservoir

1шт.

19

1979764C2

HOSE

10-1/2 inch (267 mm) long, cut from 364361C1 bulk, cooler return to tee, see this Figure

1шт.

20

1979655C1

TEE

return, hose to bypass valve

1шт.

21

1343558C1

VALVE

bypass, power guide axle

1шт.

22

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

Adj

2шт.

23

1979760C1

TEE

return, at reservoir, Includes: Ref. 24

1шт.

24

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

25

1347071C1

CLAMP

CLAMP 1 inch OD, tube retaining

2шт.

26

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

27

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

2шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

29

1343660C1

RESERVOIR

ASSEMBLY hydraulic oil, 10 gallon, parts list Figure 8-2

1шт.

30

108113A1

PUMP, HYDROSTATIC

SPARE PART ASSEMBLY parts list Figures 6-22 - 6-28 and 6-32

1шт.

30

87637529R

REMAN-HYDROSTAT PUMP

1688 CASE IH AXIAL-FLOW COMBINE, SPARE PART ASSEMBLY (1/93-12/94), Reman for New PN 108113A1

1шт.

30

87637529C

CORE-HYDROSTAT PUMP

Return Number

1шт.

364361C1

HOSE

bulk, 1 (25) ID x 600 inch (15240 mm) long

1шт.
