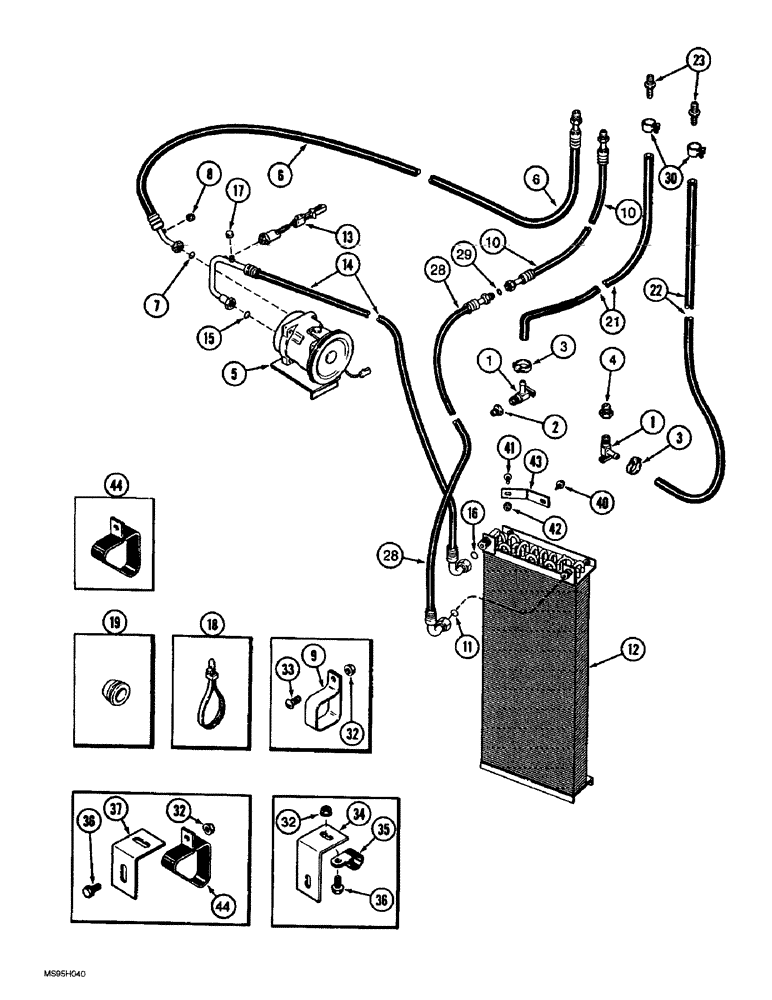

Запчасти Case IH 1688 (9G-40) - HEATER AND AIR CONDITIONING SYSTEM, CHASSIS CONNECTIONS (10) - CAB & AIR CONDITIONING

1

301803R1

SHUT-OFF VALVE

heater

2шт.

2

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

1шт.

3

1954736C1

HOSE CLAMP,#24

Spring

2шт.

4

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

REDUCER pipe, 3/4 male x 3/8 inch female

1шт.

5

1977959C1

COMPRESSOR

ASSEMBLY air conditioning, parts list Figure 9G-46

1шт.

5

1977959C1R

REMAN-A/C COMPRESSOR

1688 CASE IH AXIAL-FLOW COMBINE, ASSEMBLY (1/93-12/94)

1шт.

5

1977959C1C

CORE-A/C COMPRESSOR

Return Number

1шт.

6

98042C2

HOSE ASSY.

187 inch (4750 mm) long, compressor to cab, Includes: Ref. 7 and 8

1шт.

7

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

8

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

hex, 7/16-20 inch female 45 degree flare

1шт.

9

154695C2

CLAMP

hose, heater only

1шт.

9

1301387C2

CLIP

CLAMP square, 2 inch ID, heater and air conditioning

1шт.

10

1321292C4

HOSE

187 inch (4743 mm) long, condenser to cab, Includes: Ref. 11

1шт.

11

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

12

84581C1

CONDENSER

air conditioning

1шт.

13

92038C1

SWITCH, A/C HIGH PRE

SWITCH high pressure, air conditioning

1шт.

14

98043C2

HOSE ASSY.

71 inch (1800 mm) long, compressor to condenser, Includes: Ref. 15 -17

1шт.

15

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

16

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

17

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

hex, 7/16-20 inch female 45 degree flare

2шт.

18

291207C1

CLAMP

STRAP tie, 14 inch long, maximum bundle

1шт.

18

702093C1

CABLE TIE

CABLE STRAP 3 inch maximum

1шт.

19

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

5/8 inch ID, hose

3шт.

19

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

3/4 inch ID, hose

3шт.

20

198827C1

GROMMET,22.22mm ID x 41.1mm OD x 26.9mm Thk

heater hose, 7/8 inch ID, not shown

4шт.

20

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

deck harness, right, not shown

1шт.

21

1958955C1

HOSE

255 inch (6477 mm) long, cut from 97252CX bulk, heater, see this Figure

1шт.

22

1979229C1

LARGE HOSE

SPARE PART 358 inch (9100 mm) long, cut from 97252CX bulk, heater, see this Figure

1шт.

23

1301342C1

FITTING

ADAPTER straight, special, heater hose inlet fitting

2шт.

24

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

REDUCER pipe, 3/4 male x 3/8 inch female, not shown

1шт.

28

98045C2

HOSE ASSY.

62 inch (1560 mm) long, condenser to cab, Includes: Ref. 29

1шт.

29

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

30

1954736C1

HOSE CLAMP,#24

Spring

4шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

33

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

1шт.

34

194756C2

ANGLE

clamp mounting front

1шт.

35

28123R1

CLAMP

1-1/2 inch coated medium, closed

1шт.

36

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

3шт.

37

1301560C1

SUPPORT

BRACKET mounting, clamp, rear

2шт.

40

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

4шт.

41

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

2шт.

42

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

43

1324915C2

SUPPORT

BRACKET condenser

2шт.

44

1994983C2

CLAMP

hose, heater and air conditioning

3шт.

97252CX

HOSE

bulk, 5/8 (16) x 1 (25) x 600 inch (15240 mm) long, see Refs. 21 and 22

1шт.
