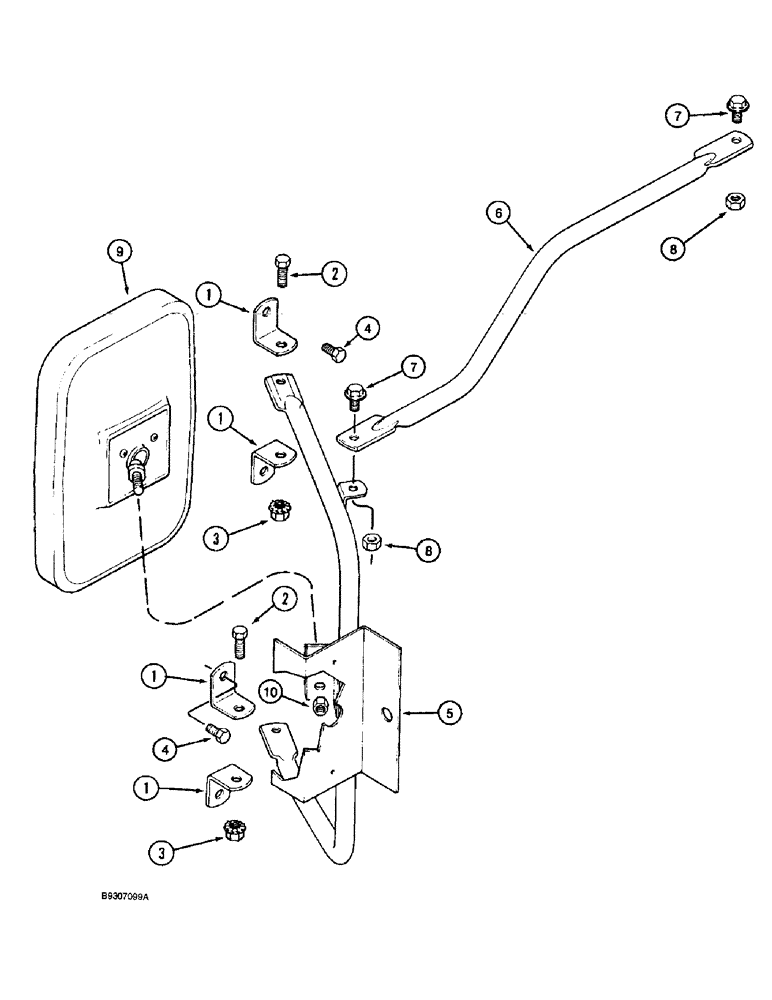

Запчасти Case IH 1688 (9G-48) - REAR VIEW MIRROR, RIGHT HAND (10) - CAB & AIR CONDITIONING

1

1281917C1

ANGLE

bracket mounting

4шт.

2

1990501C1

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT hex, special locking, 5/16 NC x 1 inch

2шт.

3

1330064C1

FLANGE NUT

hex flange, self-locking, polyseal, 5/16 inch NC

2шт.

4

1987299C1

BOLT

BOLT hex, 5/16 NC x 3/4 inch

4шт.

5

1281914C1

TUBE,438.5, 246.7 mm Length

BRACKET mirror mounting

1шт.

6

1281916C3

LEVER

SUPPORT mirror bracket

1шт.

7

121-230

SERRATED BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

8

122379A1

FLANGE NUT

hex serrated flange, 3/8 inch NC

2шт.

9

1283403C1

MIRROR

rear view

1шт.

10

122379A1

FLANGE NUT

hex serrated flange, 3/8 inch NC

1шт.
