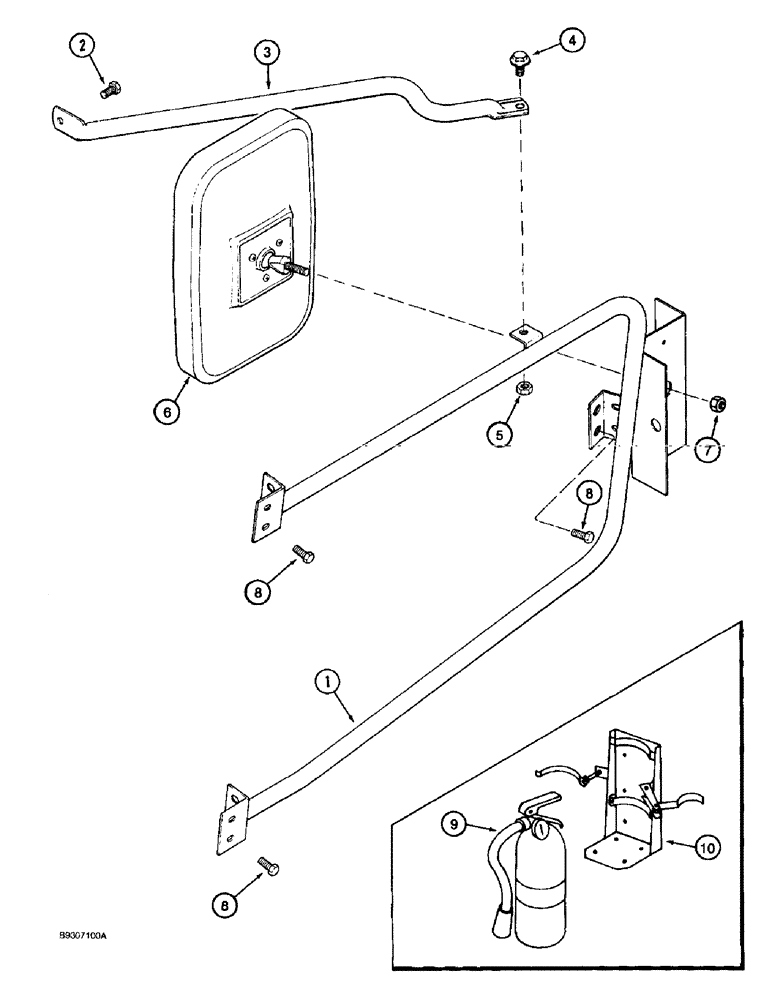

Запчасти Case IH 1688 (9G-50) - REAR VIEW MIRROR, LEFT HAND, FIRE EXTINGUISHER (10) - CAB & AIR CONDITIONING

1

1281911C1

TUBE,694, 476 mm Length

BRACKET mirror mounting, rear view, left hand

1шт.

2

1987299C1

BOLT

BOLT hex, 5/16 NC x 3/4 inch, rear view mirror, left hand

4шт.

3

1281913C1

TUBE,19.05 mm OD, 444, 303.5 mm Length

SUPPORT mirror bracket, rear view, left hand

1шт.

4

121-230

SERRATED BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Rear view mirror, LH

1шт.

5

122379A1

FLANGE NUT

hex serrated flange, 3/8 inch NC, rear view mirror, left hand

2шт.

6

1283403C1

MIRROR

rear view, left hand

1шт.

7

122379A1

FLANGE NUT

hex serrated flange, 3/8 inch NC, rear view mirror, left hand

1шт.

8

1990501C1

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT hex, special locking, 5/16 NC x 1 inch, rear view mirror, left hand

3шт.

9

549975C91

FIRE EXTINGUISHER

ABC dry chemical

1шт.

10

549978C91

BRACKET

extinguisher mounting, fire

1шт.
