(9B-28) - CONCAVES, ANCHOR SUPPORTS

Запчасти Case IH 1688 (9B-28) - CONCAVES, ANCHOR SUPPORTS (14) - ROTOR, CONCANVES & SIEVE

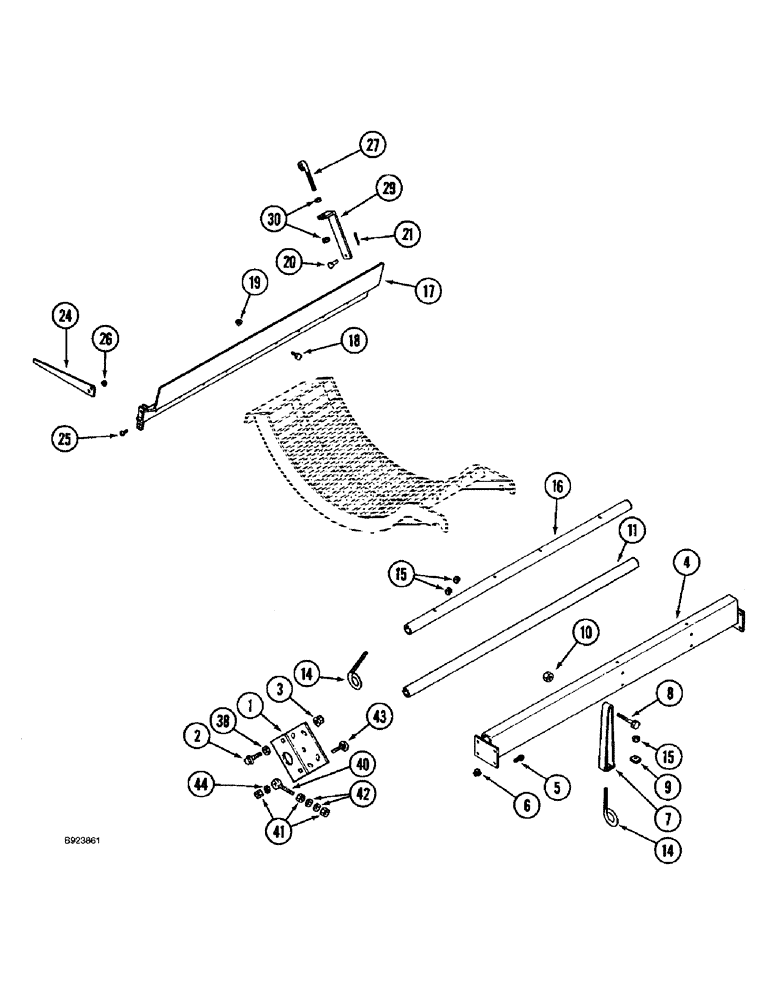

Схема запчастей Case IH 1688 - (9B-28) - CONCAVES, ANCHOR SUPPORTS (14) - ROTOR, CONCANVES & SIEVE
17
14
4
11
15
26
20
40
38
19
25
30
15
8
1
44
42
43
29
10
2
24
41
7
3
18
6
5
21
27
9
16
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1338041C2

SUPPORT

concave anchor

2шт.

2

1338052C1

SCREW,Hex, 5/8" - 11 x 1 1/2", W/ Scotch Grip

BOLT self-locking, hex flange, special, 5/8 NC x 1-1/2 inch, front support

5шт.

3

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

hex serrated flange, 5/8 inch NC, grade 8

5шт.

3

1338079C1

FLANGE NUT

self-locking, hex flange, special, 5/8 inch NC, rear support

5шт.

4

1317229C1

SUPPORT

Concave, RH

1шт.

5

1302142C1

BOLT,Flng, 1/2" - 13 x 1-1/4"

BOLT hex flange, special, 1/2 NC x 1-1/4 inch

6шт.

6

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

6шт.

7

1317233C1

SUPPORT

concave strap

2шт.

8

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

2шт.

9

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

flat, 17/32 x 1-1/4 x 3/16 inch, hardened

2шт.

10

232-4118

NUT,1/2"-13, GC

2шт.

11

195255C1

PIPE

concave control

1шт.

14

1317280C1

BOLT,1/2" - 13 x 152mm, Full Thd

EYE concave

6шт.

15

425-108

NUT,1/2" - 13, Gr 5

12шт.

16

193790C3

PIPE

PIPE concave control

1шт.

17

1318433C1

SUPPORT

concave anchor

1шт.

18

410-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 8

BOLT hex serrated flange, 3/8 NC x 1 inch, grade 8

12шт.

19

231-5146

FLANGE NUT,3/8"-16

12шт.

20

439-1823

HEADED PIN,12.7mm OD x 22.23mm L

headed, 1/2 x 1-7/16 inch, grade 2

2шт.

21

432-1216

COTTER PIN,3/16" x 1"

2шт.

24

1318880C1

SUPPORT

concave indicator

1шт.

25

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

slotted truss head, 1/4 NC x 1/2 inch

2шт.

26

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

27

1317348C1

BOLT,1/2" - 13 x 114mm, Cl 5, Full Thd

EYE concave adjusting

1шт.

29

1318894C2

SUPPORT

SUPPORT concave adjusting, replaces 1318894C1

1шт.

30

425-108

NUT,1/2" - 13, Gr 5

2шт.

38

396-31066

WASHER,21/32" x 1 5/16" x .188", HDN

flat, 21/32 x 1-5/16 x 3/16 inch

10шт.

40

177662C2

EYEBOLT

EYE anchor support

2шт.

41

425-108

NUT,1/2" - 13, Gr 5

6шт.

42

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

43

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2 NC x 1-1/2 inch

2шт.

44

80679

LOCK WASHER,1/20.507 CST ZND

2шт.
