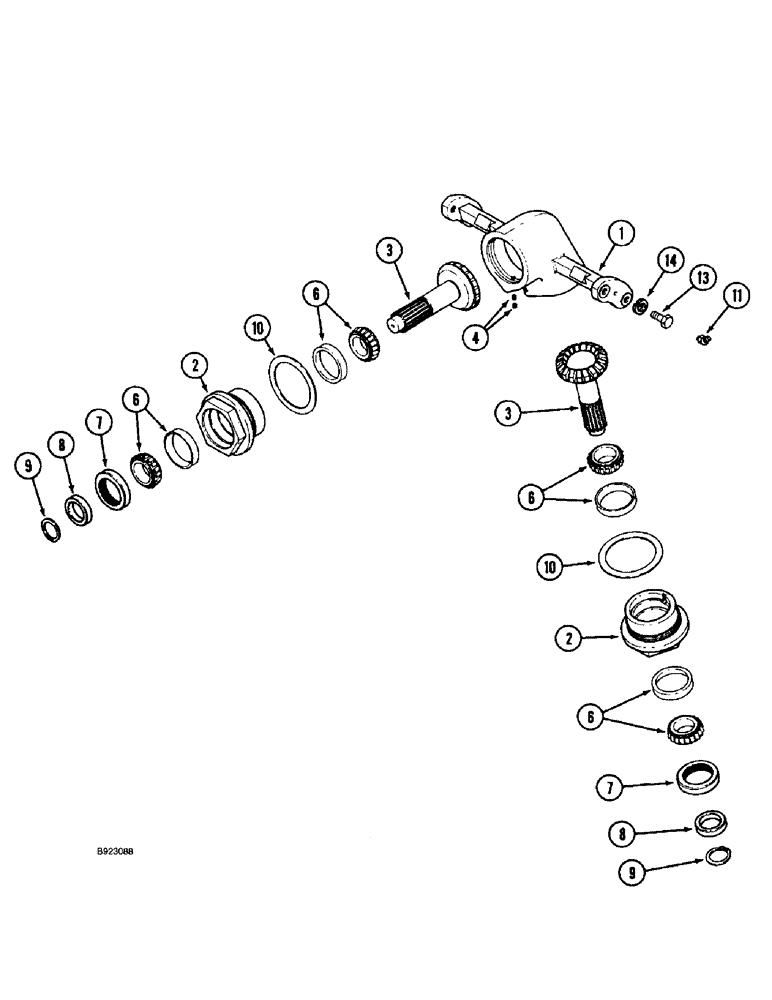

Запчасти Case IH 1688 (9E-34) - UNLOADER, UPPER GEAR HOUSING (17) - GRAIN TANK & UNLOADER

1347351C1

HOUSING

ASSEMBLY upper gear, unloader, Includes: Ref. 1 - 11

1шт.

1347351C2R

REMAN-GEARBOX

1688 (1/93-12/94), Reman for New PN 1347351C1

1шт.

1347351C2C

CORE-TRANSMISSION

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING upper gear

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING gear bearing

2шт.

3

1347260C1

PINION

GEAR 18 teeth, upper housing unloader

2шт.

4

83-1316

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

set, hex socket headless, 5/16 NC x 3/8 inch, cup point

4шт.

6

1347431C1

TAPERED BEARING,1.25" ID x 2.328" OD x 0.625"

tapered roller, gear housing

4шт.

7

1347339C1

SEAL,44.45mm ID x 62.1mm OD x 6.35mm Thk

oil

2шт.

8

1347312C1

RETAINER

gear, housing

2шт.

9

100-16125

SNAP RING,#125, Ext

2шт.

10

1347338C1

SHIM,76.45mm ID x 96mm OD x 0.1mm Thk

upper bearing

1шт.

11

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

grease, 45 degree, 1/4-28 special taper x 13/16 inch

1шт.

13

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

4шт.

14

492-11038

LOCK WASHER,3/8"

4шт.
