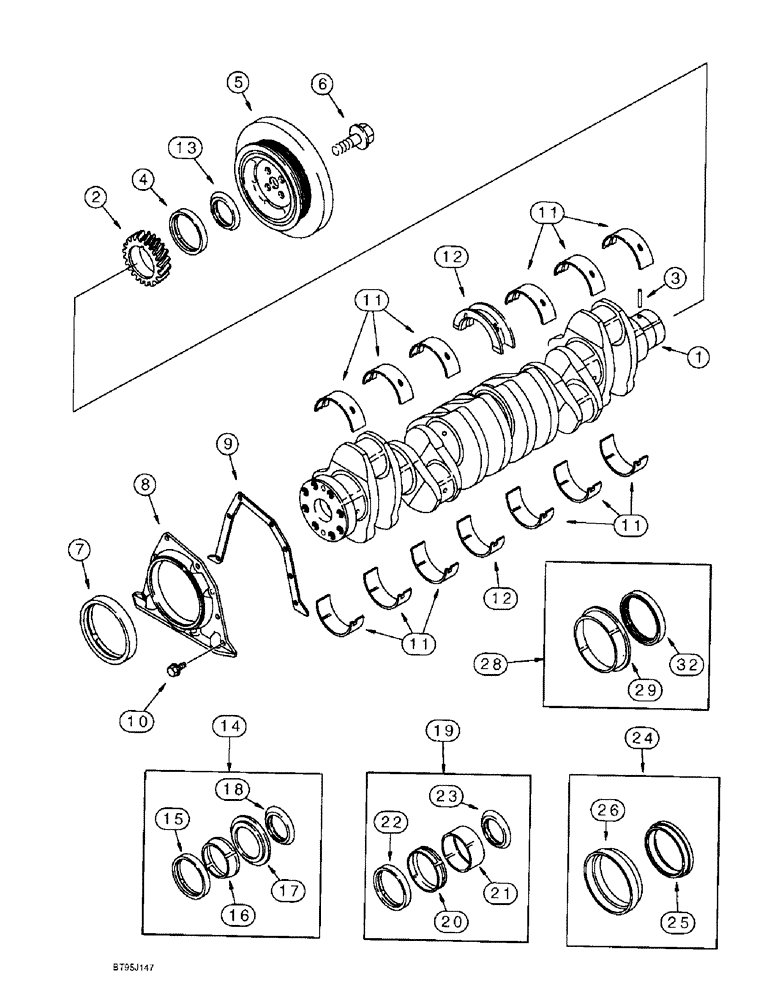

Запчасти Case IH 1688 (2-48) - CRANKSHAFT, 6TA-830 ENGINE (01) - ENGINE

JR917443

REMAN-CRANKSHAFT

ASSEMBLY engine, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 2 and 3

1шт.

JC917443

CORE-CRANKSHAFT

RETURN NUMBER use this part number to return crankshaft for credit when using a remanufactured assembly, Includes: Ref. 2 and 3

1шт.

1

J917443

CRANKSHAFT

ASSEMBLY engine, new, Includes: Ref. 2 and 3

1шт.

2

J918380

GEAR

crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL oil, front, order Ref. 14, A77790 kit

1шт.

5

J925568

DAMPER,246mm OD

PULLEY crankshaft vibration, replaces J914456

1шт.

6

J906733

BOLT,Hex Flg, M14 x 1.5 x 35mm, Cl 12.9

hex flange, special, 14 x 35 mm

4шт.

7

NSS

NOT SOLD SEPARAT

SEAL oil, rear, order Ref. 24, A77809 kit

1шт.

8

J921042

REAR COVER

RETAINER seal

1шт.

9

J914301

GASKET

rear cover retainer

1шт.

10

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

Heavy

8шт.

11

A77711

BEARING LINER

main, upper and lower set, standard

6шт.

11

A77712

BEARING LINER

main, upper and lower set, 0.25 mm undersize

6шт.

11

A77713

BEARING LINER

main, upper and lower set, 0.50 mm undersize

6шт.

11

A77714

BEARING LINER

main, upper and lower set, 0.75 mm undersize

6шт.

11

A77715

BEARING LINER

main, upper and lower set, 1.0 mm undersize

6шт.

12

A77843

BEARING LINER

main thrust, upper and lower set, standard, replaces A77706

1шт.

12

A77844

BEARING LINER

main thrust, upper and lower set, 0.25 mm undersize, replaces A77707

1шт.

12

A77845

BEARING LINER

main thrust, upper and lower set, 0.50 mm undersize, replaces A77708

1шт.

12

A77846

BEARING LINER

main thrust, upper and lower set, 0.75 mm undersize, replaces A77709

1шт.

12

A77847

BEARING LINER

main thrust, upper and lower set, 1.0 mm undersize, replaces A77710

1шт.

12

A77848

CRANKSHAFT BEARING

main thrust, upper and lower set, standard journal diameter, 0.25 mm oversize thrust width

1шт.

12

A77849

CRANKSHAFT BEARING

main thrust, upper and lower set, standard journal diameter, 0.50 mm oversize thrust width

1шт.

12

A77850

CRANKSHAFT BEARING

main thrust, upper and lower set, 0.50 mm undersize journal diameter, 0.50 mm oversize thrust width

1шт.

13

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

dust, front seal, order Ref. 14, A77790 kit

1шт.

14

A77790

SEAL KIT

oil seal, crankshaft front, Includes: Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

17

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

18

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

dust, front seal

1шт.

19

A77808

SERVICE KIT

wear sleeve, crankshaft front, replaces A77791 kit, if used, Includes: Ref. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

21

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

23

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

dust

1шт.

24

A77809

GASKET KIT

oil seal, crankshaft rear, replaces J909410 kit, Includes: Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

28

A77810

SERVICE KIT

KIT wear sleeve, crankshaft rear, replaces J906081 kit, if used, Includes: Ref. 29 and 32

1шт.

29

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

32

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.
