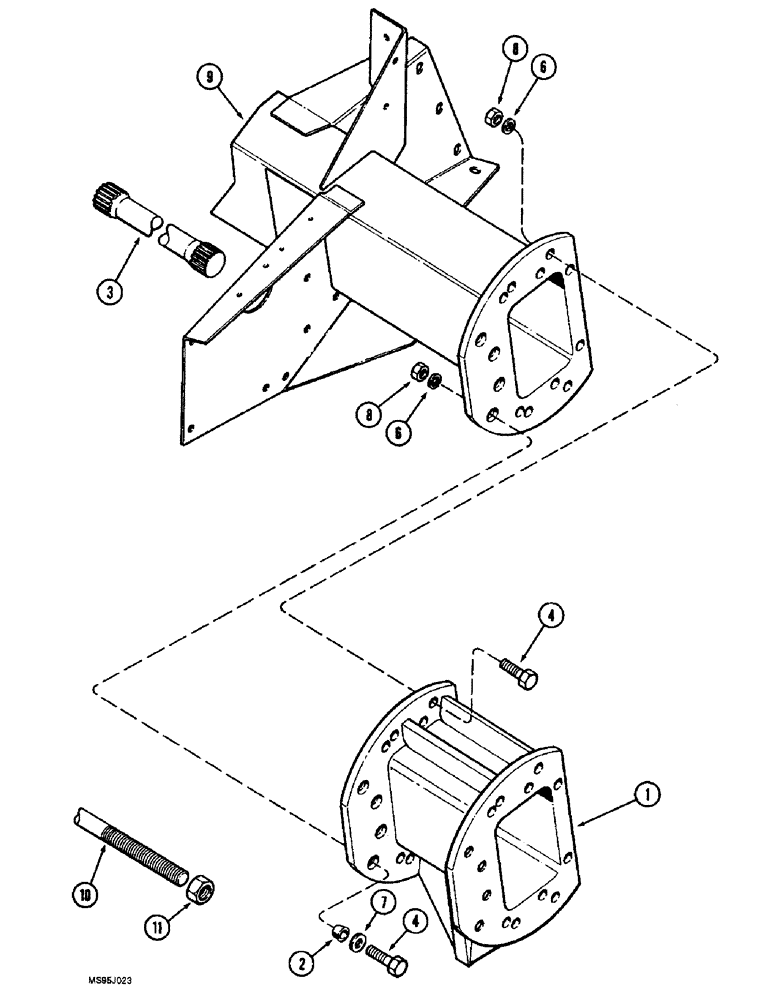

Запчасти Case IH 1688 (6-62) - DUAL WHEEL AXLE EXTENSION (03) - POWER TRAIN

1

184353C1

AXLE

EXTENSION drive

2шт.

2

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

tapered, end plate

8шт.

3

184374C1

SHAFT

axle

2шт.

4

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

BOLT hex, full threads, 20 - 2.5 x 60 mm, class 10.9

16шт.

6

392-21075

LOCK WASHER,3/4"

3/4"

16шт.

7

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat

8шт.

8

832-41320

NUT,M20 x 2.5, Cl 10

16шт.

9

REF

INSTRUCTION

AXLE drive, parts list Figure 6-58 Ref. 1

1шт.

10

184358C1

ROD

reinforcement, extension

1шт.

11

232-41320

LOCK NUT,1 1/4"-7, GC

4шт.
