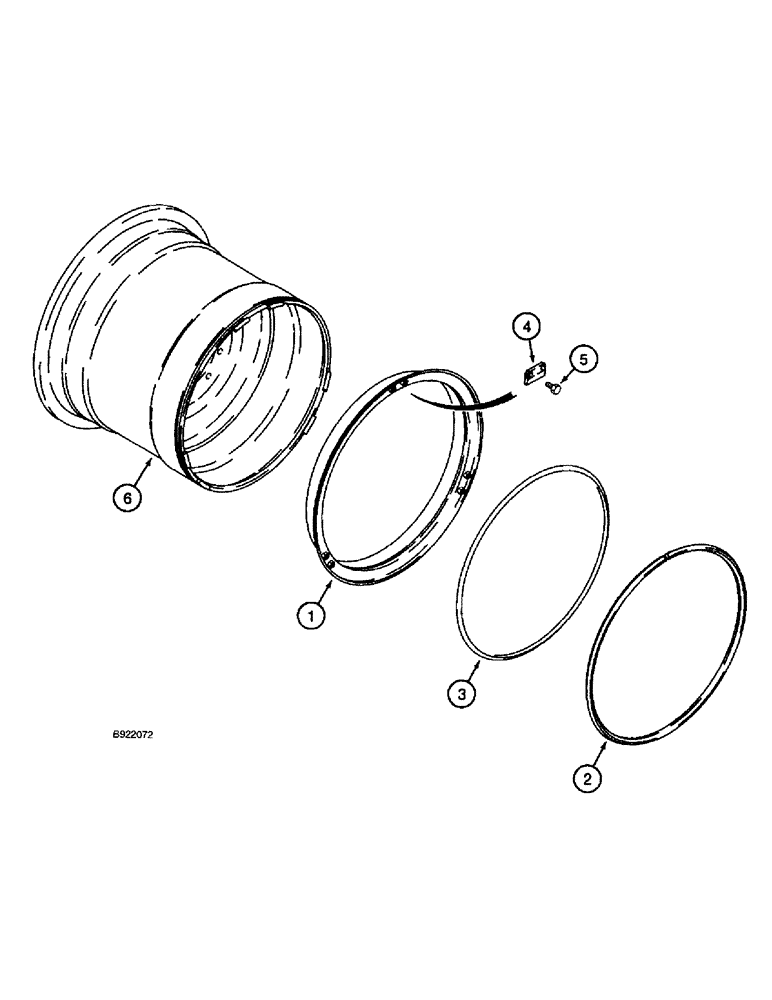

Запчасти Case IH 1688 (6-68) - THREE PIECE WHEEL, FOR 73 X 44-32 TIRE (03) - POWER TRAIN

112012A1

WHEEL ASSY.

drive, 73 x 44-32 inch tire, includes decal, Ref. 21, shown on Figure 9H-42, Includes: Ref. 1 - 6

2шт.

1

184471C1

WHEEL

wheel, side

1шт.

2

184472C1

RING

wheel, locking

1шт.

3

184473C1

O-RING,7mm Thk x 757mm ID, 65 Duro

Wheel sealing

1шт.

4

184474C1

LARGE PLATE

PLATE, LARGE wheel ring

3шт.

5

413-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5

hex, 5/8 NC x 1 inch

6шт.

6

NSS

NOT SOLD SEPARAT

RIM wheel

1шт.
