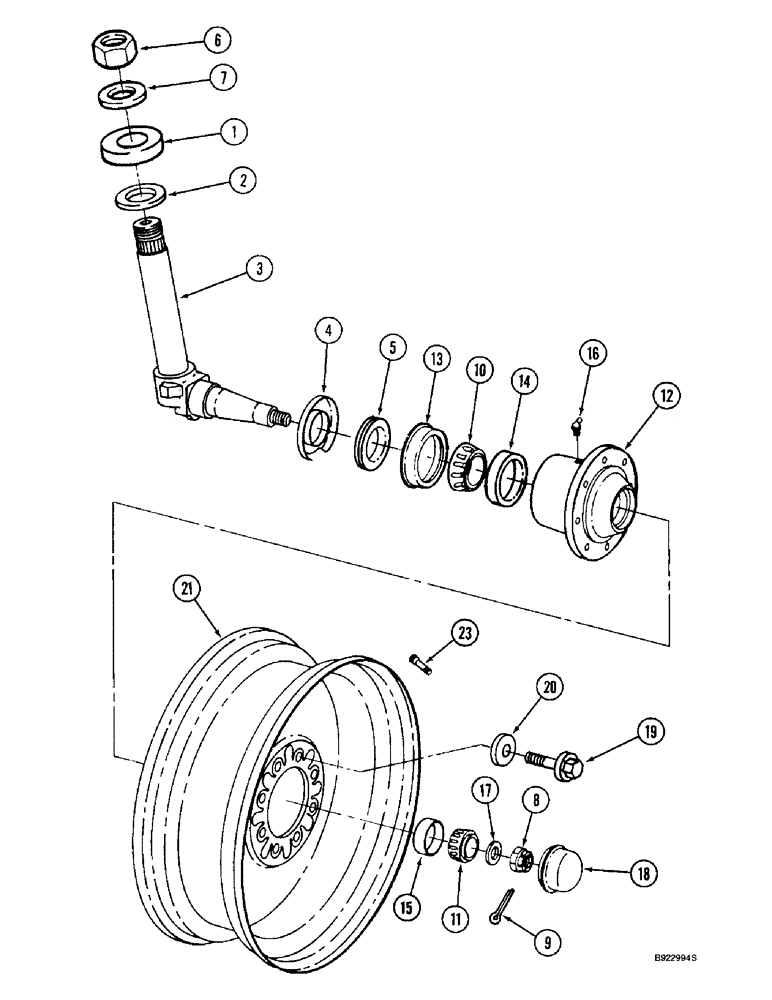

Запчасти Case IH 2144 (5-18) - STEERING KNUCKLE, HUB AND WHEELS, NONADJUSTABLE AND ADJUSTABLE AXLES, W/O POWER GUIDE AXLE (04) - STEERING

1

185106C91

BEARING ASSY,44.2mm ID x 70.1mm OD x 19.05mm W

BEARING - thrust

2шт.

2

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

- Felt, Special

2шт.

3

1315374C1

STEERING KNUCKLE

KNUCKLE ASSEMBLY - steering, Includes: Ref. 4 and 5

2шт.

4

1259522C1

SHIELD

- dust

1шт.

5

491641C1

SEAL

- dust shield

1шт.

6

425-1522

JAM NUT,Jam, 1 3/8"-12, G5

- hex jam, 1-3/8 inch NF

2шт.

7

495-81218

WASHER,35.71mm ID x 69.85mm OD x 1.37mm Thk

- flat, 1-13/32 x 2-3/4 x 3/64 inch

2шт.

8

1259683C1

NUT

- hex, slotted, 30 mm - 1.5

2шт.

9

732-6363

COTTER PIN,M6.3 x 63

PIN - cotter, 6 x 63 mm

2шт.

10

ST753B

BEARING ASSY,66.67mm ID x 22mm W

BEARING - tapered roller, 2-5/8 inch ID

2шт.

11

130504H

ROLLER BEARING,42.887 mm ID x 25.48 mm

BEARING - tapered roller

2шт.

12

1259528C1

HUB

ASSEMBLY - wheel, Includes: Ref. 13 - 16

2шт.

13

1264549C1

SEALING WASHER,106mm ID x 130mm OD x 1.6mm Thk

RETAINER - hub seal

1шт.

14

29214H

BEARING CUP,110mm OD x 18.82mm W

CUP - tapered roller bearing (Replaces cup A26744)

1шт.

15

130503H

BEARING CUP

CUP - tapered roller bearing, 3-17/64 inch OD

1шт.

16

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

2шт.

16

219-404

LUBE NIPPLE,45 Degree Elbow, 3/16" NPTF

FITTING - grease, 45°, 3/16 drive type x 13/16"

2шт.

17

896-12030

WASHER,33mm ID x 56mm OD x 5mm Thk

- flat, 33 x 56 x 5 mm, hardened

2шт.

18

189425C1

HUB CAP

CAP - wheel hub

2шт.

19

414064C1

BOLT,Hex, 9/16" - 18 x 1 1/2"

- hex flange, special

16шт.

20

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

- flat, 21/32 x 1-1/2 x 3/16 inch, hardened

16шт.

21

186642C2

WHEEL

- 18.4-16 inch, for 18.4 x 16.1 tire

2шт.

21

188759C2

RIM

WHEEL - 10 x 24 inch, for 11.25 x 24 inch tire

2шт.

21

1541719C1

RIM

WHEEL - 12 x 24 inch, for 14.9 x 24 inch tire

2шт.

21

1970153C2

RIM

WHEEL - drive, steering, for 16.9 x 26 and 18.4 x 26 tire

2шт.

23

536705R91

VALVE

- inflation, 5/8 inch diameter

2шт.

23

179482C1

VALVE STEM

VALVE - inflation, 7/16 inch diameter

2шт.
