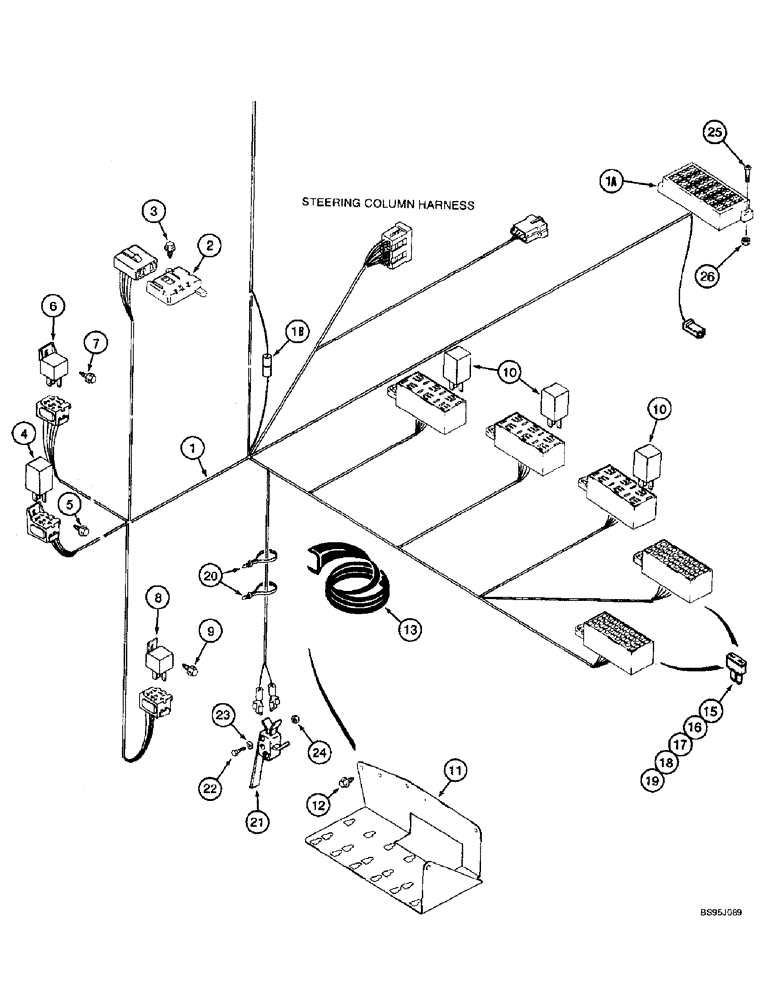

Запчасти Case IH 2144 (4-21E) - CAB HARNESS, TO PEDESTAL, RELAY AND FUSE BLOCK, COMBINE S/N JJC0172845 AND AFTER (06) - ELECTRICAL

1

184513A4

HARNESS

ASSEMBLY - cab, includes items 1A - 2A on figure 4-21A, items 2 and 3 on figure 4-21E and items 1A and 1B on this figure, combine P.I.N. JJC0172845 - JJC0173149, Start Serial: JJC0172845

1шт.

1

243186A2

HARNESS

ASSEMBLY - cab, includes items 1A - 2A on figure 4-21A, items 2 and 3 on figure 4-21C and items 1A and 1B on this figure, combine P.I.N. JJC0173150 and after, Start Serial: JJC0173150

1шт.

1a

122845A1

JUNCTION BLOCK

MODULE - feedback

1шт.

1b

113699A1

RECTIFIER

- locking, 2-5/8 inch long

1шт.

2

A162294

CONNECTOR, ELEC

MODULE - low coolant

1шт.

4

92389C2

FLASHER UNIT

FLASHER - hazard

1шт.

6

1987452C1

RELAY

- 12 volt, 70 amp

1шт.

8

1502351C1

RELAY

- 12 volt, dipping

1шт.

10

105849A1

RELAY

- continuous duty, 20 amp

19шт.

11

123116A1

PANEL

BRACKET - support, fuse and relay

1шт.

13

70-5848T1

SEAL

TRIM - edge, 5-1/2 inch (140 mm) long, cut from F64277X bulk trim below

2шт.

14

225531A1

DECAL

- lower fuse and relay, English, not shown, for illustration and French and Spanish part numbers see Figure 9H-38, item 3

1шт.

15

121850A1

FUSE,3A, Mini, Violet

- mini, 3 ampere

1шт.

16

121412A1

FUSE,10A, Mini, Red

1шт.

17

121413A1

FUSE,15A, Mini, Blue

1шт.

18

121414A1

FUSE,20A, Mini, Yellow

- mini, 20 ampere

1шт.

19

121416A1

FUSE,30A, Mini, Green

- mini, 30 ampere

1шт.

20

702093C1

CABLE TIE

STRAP - tie, 3rd gear lockout switch wire

2шт.

21

60-6515T1

SWITCH

- 3rd gear lockout

1шт.

22

463-10412

SCREW,Hex Hd, #4-40 x 3/4"

- machine, hex head, No. 4 NC x 3/4 inch

2шт.

23

495-31012

WASHER,#4

- flat, 1/8 x 5/16 x 1/32 inch

2шт.

24

225-14104

NUT,#4-40

2шт.

25

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

2шт.

26

231-14106

NUT,#6-32, GB

NUT - hex, self-locking, No. 6 NC

2шт.

222699A1

FUSE KIT

KIT - fuse, includes (1) each of 3, 5, 7.5, 10, 15, 20, 25, and 30 amp fuses

1шт.

F64277X

SEAL

TRIM - bulk, 47 foot (14326 mm) long

1шт.

3

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10 x 5/8"

2шт.

5

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10 x 5/8"

1шт.

7

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10 x 5/8"

1шт.

9

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10 x 5/8"

1шт.

12

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10 x 5/8"

3шт.
