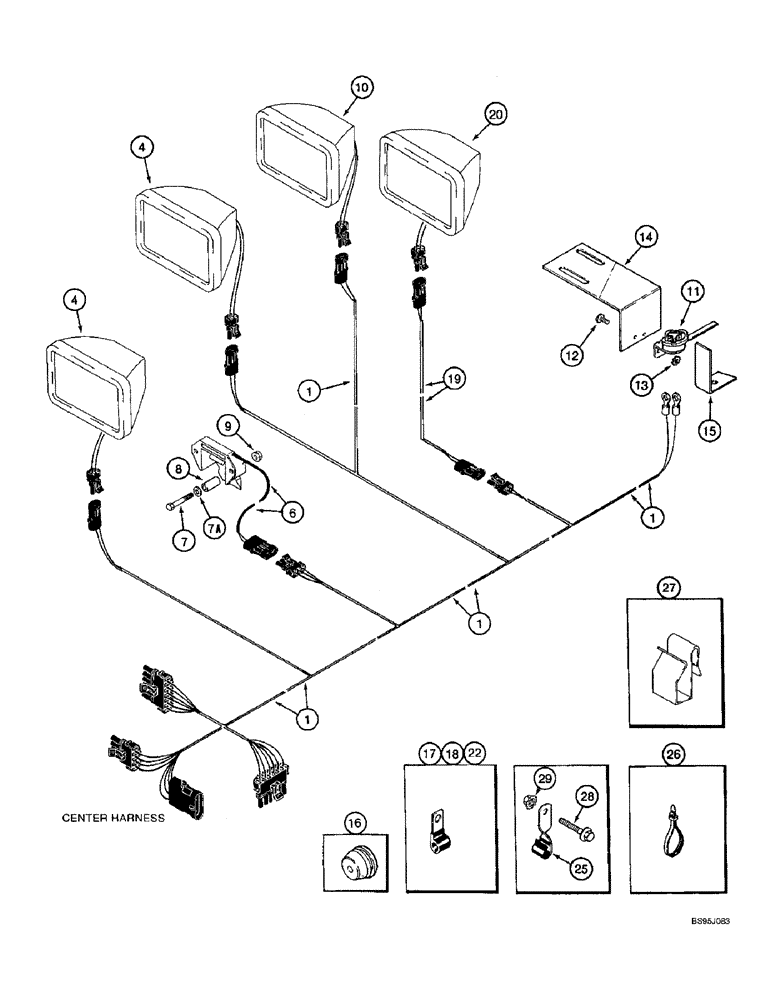

Запчасти Case IH 2144 (4-30) - GRAIN TANK AND UNLOADER LAMP HARNESSES (06) - ELECTRICAL

1

184737A1

HARNESS

ASSEMBLY - grain tank, Includes: Ref. 2 and 3

1шт.

2

187308A1

CAP

- splice connector, not shown

2шт.

3

187309A1

BAR

- buss, 6 terminal, not shown, cut as needed

2шт.

4

185118A1

HEADLIGHT,12V, 37.5W

LAMP ASSEMBLY - flood, left-hand and right-hand side

2шт.

5

139119A1

BULB,#886, 12V, 50W

Lamp, Not shown #886, 12V, 50W

1шт.

6

1987377C1

SWITCH

- grain tank level

1шт.

7

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch, if used

2шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

7a

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), If used

2шт.

8

121606A1

SPACER

- pipe, 1/4 x 1 inch, if used

2шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

10

185119A1

HEADLIGHT,12V, 37.5W

LAMP ASSEMBLY - grain tank, parts list and mounting Figure 4-50

1шт.

11

537641R2

SWITCH ASSY

SWITCH - limit, unloader out

1шт.

12

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch

2шт.

14

1338003C1

BRACKET

SUPPORT - unloader out switch

1шт.

15

1338004C1

BRACKET

- unloader out switch

1шт.

16

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- 3/4 inch ID, grain tank harness

1шт.

17

362126R1

CLIP

CLAMP - grain tank harness to front harness

3шт.

18

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, Grain tank harness 3/4", Insul, 3/8" Bolt

6шт.

19

184740A1

HARNESS

- unloader lamp

1шт.

20

185116A1

HEADLIGHT,12V, 37.5W

LAMP ASSEMBLY - unloader, Includes: Ref. 21

1шт.

21

139120A1

BULB

- lamp, Type C-6, No. 894, not shown

1шт.

22

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type, Unloader lamp harness 5/8", Insul, 3/8" Bolt

5шт.

23

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

4шт.

24

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8

4шт.

25

363660R1

CLIP

- unloader lamp harness

1шт.

26

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch, Unloader lamp harness

1шт.

27

197991A1

CLIP,ELECTRICAL

CLIP - grain tank level switch harness

2шт.

28

409-7524

BOLT,Hex Flg, 5/16" - 18 x 1 1/2", Spcl

- hex serrated flange, 5/16 NC x 1-1/2 inch

1шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

13

493-81000

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

2шт.
