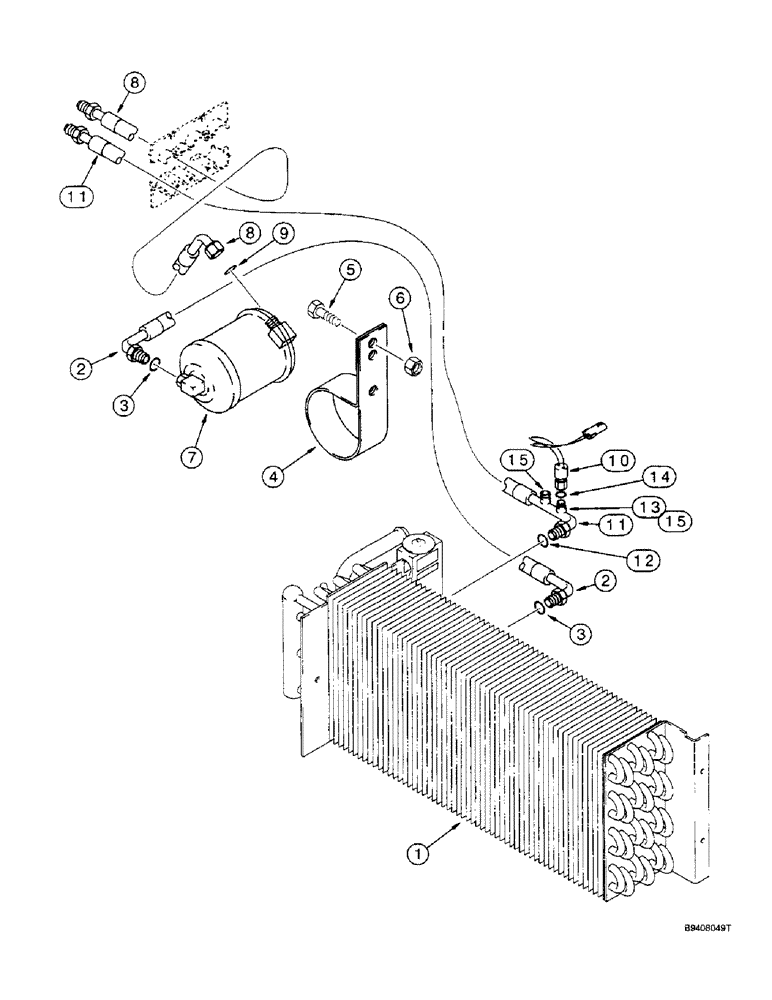

Запчасти Case IH 2144 (9G-48) - HEATING AND AIR CONDITIONING SYSTEM, RECEIVER AND DRIER SYSTEM (10) - CAB & AIR CONDITIONING

1

121590A2

BODY

CORE ASSEMBLY - evaporator, parts list Figure 9G-42

1шт.

2

124912A1

LARGE HOSE

HOSE ASSEMBLY - evaporator core valve to receiver-drier reservoir, 21-11/16 inch (551 mm) long, Includes: Ref. 3

1шт.

3

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

- 5/16 ID x 1/16 inch wide

2шт.

4

D145289

SUPPORT

BRACKET - receiver-drier

1шт.

5

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Full Thd Hex, M12 x 30, 10.9

2шт.

6

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

7

1990758C2

RECEIVER-DRYER

RECEIVER-DRIER - air conditioning

1шт.

8

124914A1

HOSE

ASSEMBLY - receiver-drier reservoir to cab/chassis connections, 26-1/16 inch (662 mm) long, Includes: Ref. 9

1шт.

See Figure 9G-44 for cab/chassis bulkhead bracket and hardware.

1шт.

9

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

- 5/16 ID x 1/16 inch wide

1шт.

10

122579A1

SWITCH, A/C LOW PRES

SWITCH - low pressure

1шт.

11

124913A2

HOSE

ASSEMBLY - evaporator core valve to cab/chasis connections, 35-7/16 inch (900 mm) long, Includes: Ref. 13 - 15

1шт.

See Figure 9G-44 for cab/chassis bulkhead bracket and hardware.

1шт.

12

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- 9/16 ID x 1/16 inch wide

1шт.

13

NSS

NOT SOLD SEPARAT

FITTING - special, pressure switch, order hose assembly 124913A2

1шт.

14

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

- 5/16 ID x 1/16 inch wide

1шт.

15

1250594C1

CORE

VALVE - core

2шт.
