(2-04) - ROTARY AIR SCREEN BAFFLE SEALS

Запчасти Case IH 2144 (2-04) - ROTARY AIR SCREEN BAFFLE SEALS (01) - ENGINE

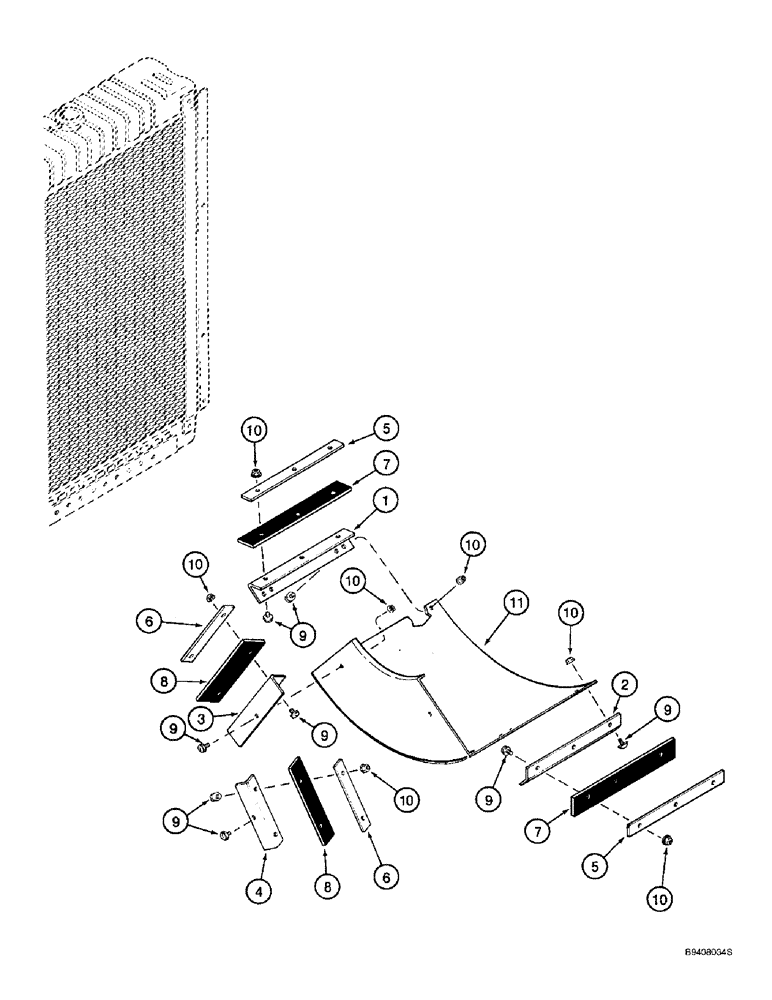

Схема запчастей Case IH 2144 - (2-04) - ROTARY AIR SCREEN BAFFLE SEALS (01) - ENGINE
8
5
3
10
11
9
10
7
10
10
5
2
9
1
10
9
7
8
9
6
10
6
4
9
9
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1977159C1

SUPPORT

- baffle, left-hand

1шт.

2

1977160C1

SUPPORT

- baffle, right-hand

1шт.

3

1977161C1

SUPPORT

- baffle, left-hand rear

1шт.

4

1977162C1

SUPPORT

- baffle, right-hand rear

1шт.

5

1977163C1

LARGE PLATE

STRIP - baffle side, 11-13/16 inch (300mm) long

2шт.

6

1977164C1

SEALING STRIP

- baffle rear, 6-1/2 inch (165mm) long

2шт.

7

1977165C1

SEAL

- baffle side, 12 inch (304mm) long

2шт.

8

1977166C1

SEAL

- baffle rear, 8 inch (203mm) long

2шт.

9

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

12шт.

10

231-4144

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

12шт.

11

194224C1

BAFFLE ASSY.

BAFFLE - rotary air screen, see Fig. 2-10 Includes: Ref. 6

1шт.
