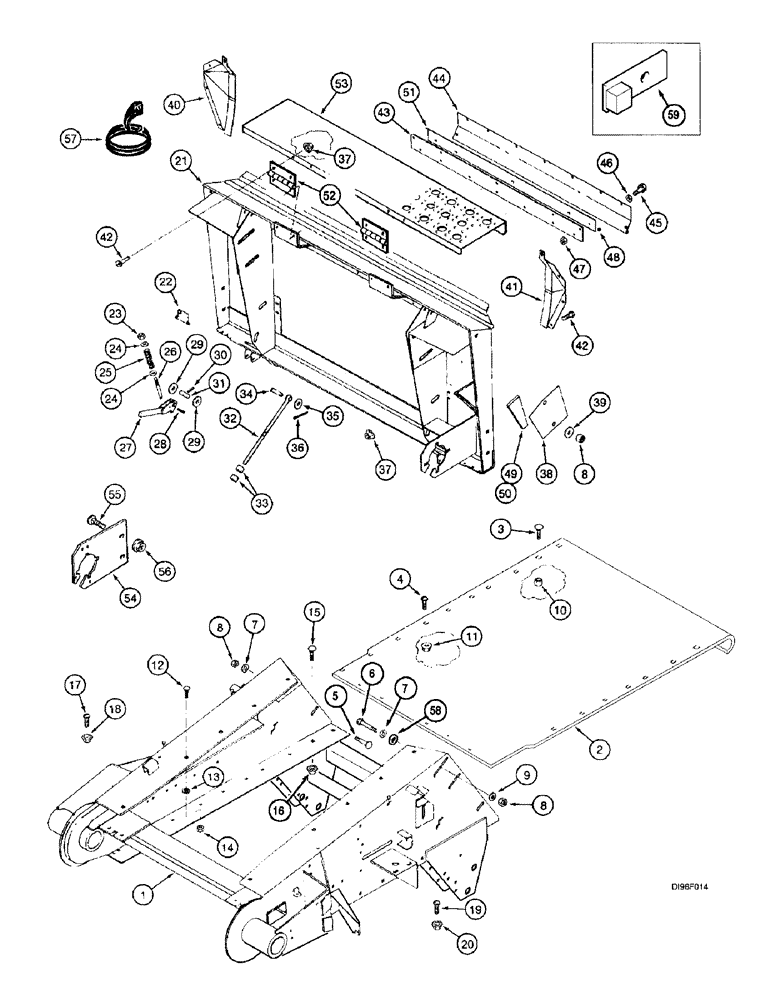

Запчасти Case IH 2144 (9A-32) - FEEDER, HOUSING AND ADAPTER (13) - FEEDER

1

239801A2

HOUSING

- feeder, includes decal, 60 inch feeder (Replaces housing 136481A1)

1шт.

1

120873A2

HOUSING

- feeder, includes decal, 54-1/2 inch feeder, Serial Range: -JJC0173150

1шт.

REF: #1A - REMOVE PART 120873A2, ALSO REMOVE ANY SERIAL NUMBER REFERENCE ON THIS PAGE.

1шт.

1

239800A2

HOUSING

- feeder, includes decal, 54-1/2 inch feeder, Start Serial: JJC0173150

1шт.

2

1994217C1

SHEET

PLATE - lower support, 60 inch feeder

1шт.

2

118845A1

BOTTOM

PLATE - lower support, perforated, 60 inch feeder

1шт.

2

1324578C2

PLATE

- lower support, 54-1/2 inch feeder

1шт.

2

1313970C1

PANEL

PLATE - lower support, perforated, 54-1/2 inch feeder

1шт.

3

415-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 8

BOLT - carriage, 1/2 NC x 1-1/4 inch, grade 8

4шт.

5

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - carriage, 5/8 NC x 1-3/4 inch

2шт.

6

433-1036

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

BOLT - carriage, 5/8 NC x 2-1/4 inch

4шт.

7

498-81008

SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole

- square hole, 21/32 x 1-1/4 x 1/16 inch

6шт.

8

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

6шт.

9

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

4шт.

10

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, self-locking, special, 1/2 inch NC, grade 8

4шт.

11

329-286

FLANGE NUT,Flg, 3/8"-16, G8

8-10шт.

12

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

2шт.

13

492-11038

LOCK WASHER,3/8"

2шт.

14

425-106

NUT,3/8"-16, Cl 5

2шт.

15

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

4шт.

16

231-5146

FLANGE NUT,3/8"-16

4шт.

17

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

19

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

3шт.

20

231-5146

FLANGE NUT,3/8"-16

3шт.

21

241769A1

ADAPTER

- feeder, heavy duty, Australia only (Replaces feeder 140765A1)

1шт.

22

1338021C1

PIN,7.94mm OD

- retaining

2шт.

23

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

24

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

25

367833R1

SPRING

- rod

2шт.

26

177138C1

ROD

- latch

2шт.

27

179024C1

HINGE

HANDLE - lock

2шт.

28

38-1816

LOCK PIN,1/8" x 1", Slotted

Pin, 1/8" x 1", Slotted

2шт.

29

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch

4шт.

30

38-11616

LOCK PIN,1/4" x 1", Slotted

Pin, (Replaces spirol pin 138-2005) 1/4" x 1", Slotted

2шт.

31

177141C1

PIN,15.88mm OD x 41mm L

- pivot

2шт.

32

1321735C2

BOLT,1/2" - 13 x 310mm, Gr 8

EYEBOLT - adjusting

2шт.

33

429-108

NUT,1/2"-13, G8

- hex, 1/2 inch NC, grade 8

4шт.

34

439-5836

HEADED PIN,12.7mm OD x 57.15mm L

PIN - headed, 1/2 x 2-1/4 inch

2шт.

35

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

36

432-1216

COTTER PIN,3/16" x 1"

2шт.

37

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

16шт.

38

1327737C2

PLATE

COVER - side

2шт.

39

95-81018

WASHER,0.66" ID x 2.5" OD x 0.12" Thk

- flat, 21/32 x 2-1/2 x 7/64 inch

2шт.

40

184853C1

DEFLECTOR

- front, left-hand

1шт.

41

184854C1

DEFLECTOR

- front, right-hand

1шт.

42

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

16шт.

43

1319474C1

BAND

COVER - top, feeder

1шт.

44

1319479C1

COVER

- adapter, feeder

1шт.

45

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

12шт.

46

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

5шт.

46

495-81001

WASHER,5/16"

- flat, 3/8 x 1-1/8 x 1/16 inch

7шт.

47

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

5шт.

47

231-5345

FLANGE NUT,Flg, 5/16"-18

NUT - hex flange, self-locking, 5/16 inch NC

7шт.

48

1321640C1

GROMMET

- cover

2шт.

49

1327752C1

FOAM INSULATION

- side, left-hand

1шт.

50

1327753C1

FOAM INSULATION

- side, right-hand

1шт.

51

109253A1

LARGE PLATE

STRIP - feeder cover

1шт.

52

140767A1

HINGE

- step

2шт.

53

140768A3

STEP

- header beam

1шт.

54

138178A2

SUPPORT

- jackshaft bearing, left-hand, if used

1шт.

55

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch

2шт.

56

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

57

126046A1

GASKET,287.02mm L

TRIM - edge, black, 11-1/2 inch (292 mm) long, cut from 1330108CX bulk trim below

2шт.

58

495-81030

WASHER,21/32" x 2" x .179"

- flat, 21/32 x 2 x 11/64 inch

4шт.

59

242957A1

COVER

- adapter slot, top left-hand and bottom right-hand, Australia only

2шт.

60

195-81030

WASHER

- flat, 17/32 x 1-1/2 x 3/16 inch, not shown, Australia only

4шт.

61

495-81030

WASHER,21/32" x 2" x .179"

- flat, 21/32 x 2 x 11/64 inch, not shown, Australia only

2шт.

62

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened, not shown, Australia only

2шт.

1330108CX

SEAL,304.8mm L

TRIM - edge, bulk, 600 inch (15240 mm) long

1шт.

4

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

8-10шт.
