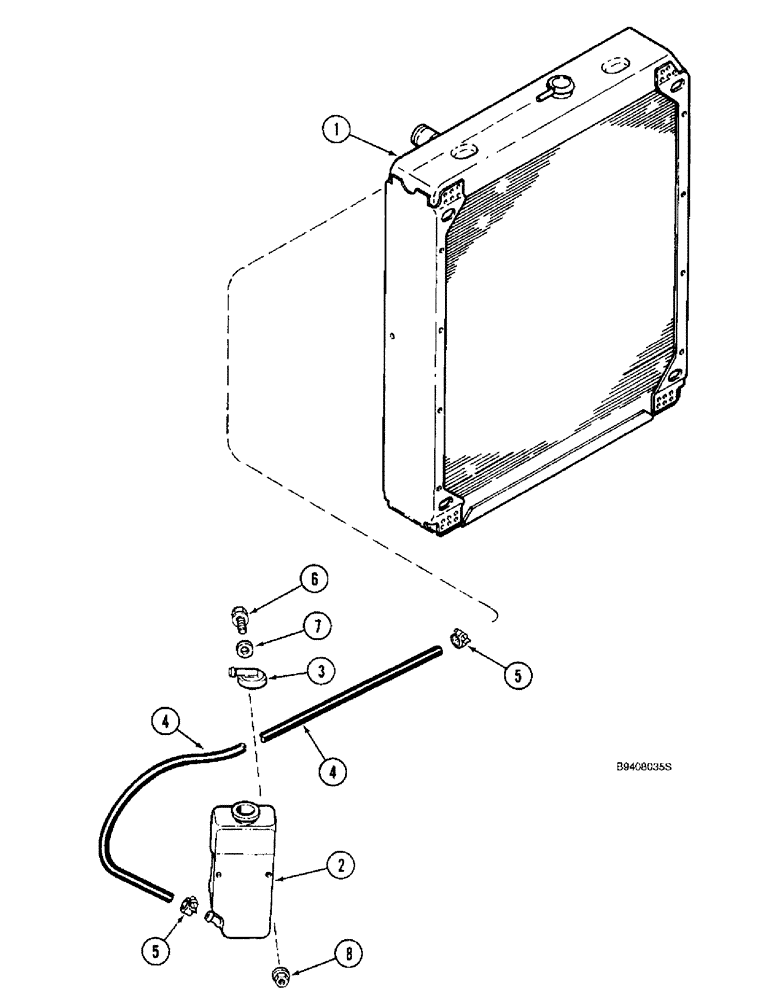

Запчасти Case IH 2144 (2-08) - COOLANT RECOVERY SYSTEM (01) - ENGINE

1

A189067

RADIATOR

- engine cooling, see Fig. 2-02 for mounting

1шт.

2

437703C2

TANK

RESERVOIR - coolant recovery

1шт.

3

437702C1

CAP

- reservoir tank

1шт.

4

1347455C1

LARGE HOSE,8.30 mm ID x 1175.00 mm, SAE J30

HEATER HOSE - Reservoir to radiator, Cut from hose L126767 8.30 mm ID x 1175.00 mm, SAE J30

1шт.

5

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

2шт.

6

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

3шт.

7

495-81109

WASHER,.281" x 1" x .048"

- flat, 9/32 x 1 x 3/64 inch

3шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3-6шт.

L126767

HOSE,7.9mm ID x 2336mm L, SAE 30R6

1шт.
