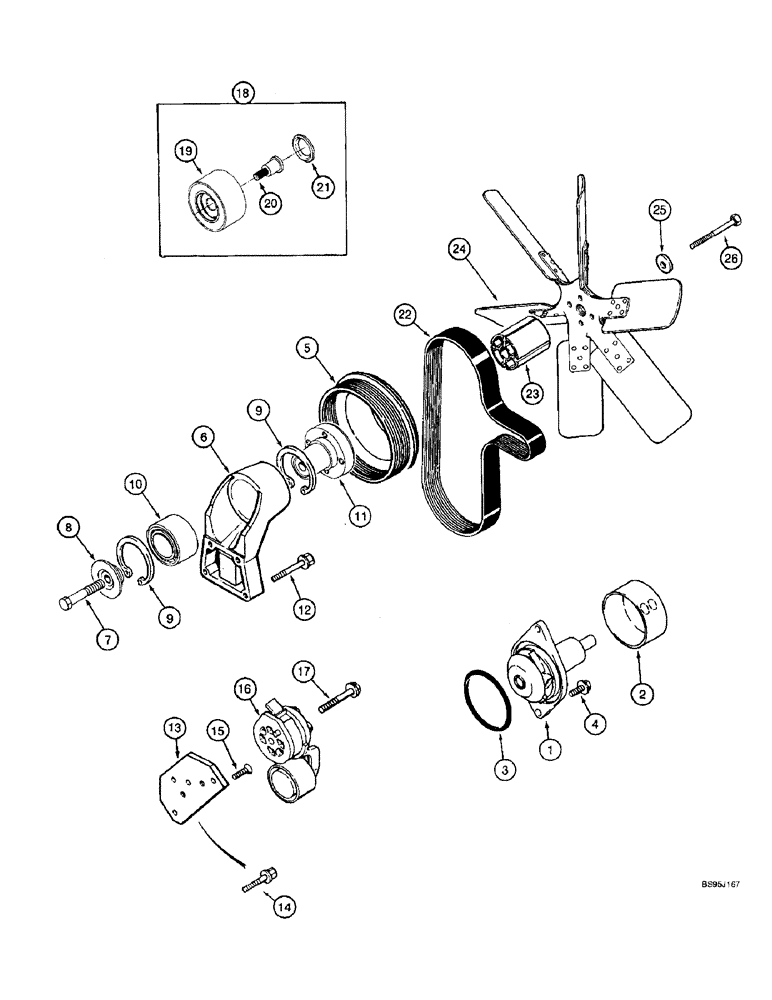

Запчасти Case IH 2144 (2-20) - WATER PUMP, FAN AND BELT, 6TA-590 ENGINE, 6TA-590 EMISSIONS CERTIFIED ENGINE (01) - ENGINE

A77703

PUMP, WATER

KIT - water pump, Includes: Ref. 1 - 3

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

Reman for new P/N A77703

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP - water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - water pump

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J914462

PULLEY,163mm OD

- fan, 1.1 to 1 ratio

1шт.

6

J913433

BRACKET

ASSEMBLY - fan pulley, includes: Ref. 7 - 11

1шт.

7

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

- hex, special, 10 - 1.5 x 70 mm, class 12.9

1шт.

8

J923044

RETAINER

- fan hub

1шт.

9

100-21250

SNAP RING,2.50", Int, #250

Ring, Snap, 2.50", Int, #250

2шт.

10

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

BEARING - ball

1шт.

11

J911924

HUB

- fan

1шт.

12

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 40 mm, 8.8, Fan bracket to cylinder block

4шт.

13

J925207

SUPPORT

BRACKET - belt tensioner (Replaces bracket J919985)

1шт.

14

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm

1шт.

15

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, torx, special, 8 - 1.25 x 25 mm

1шт.

16

J918944

BELT TENSIONER

TENSIONER - belt

1шт.

17

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 70 mm, class 10.9, Belt tensioner mounting

1шт.

18

A77817

KIT

KIT - belt tensioner pulley, used to replace pulley of J918944 belt tensioner, Includes: Ref. 19 -21

1шт.

19

NSS

NOT SOLD SEPARAT

PULLEY - belt tensioner

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT - pulley

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - bolt

1шт.

22

J911565

V-BELT,27.92mm W x 1473.2mm L, 8 Ribs

Fan 3.56 mm W x 1473.20 mm L, 8 Ribs

1шт.

23

A184548

SPACER,Fan, 89/90mm Thk

- fan, 90 mm long

1шт.

24

111898A1

FAN

- engine

1шт.

25

96-81004

WASHER,0.41" ID x 1.25" OD x 0.24" Thk

- flat, 13/32 x 1-1/4 x 15/64 inch, hardened, if used

4шт.

26

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

- hex, 10 - 1.5 x 130 mm, if used

4шт.

26

814-10125

BOLT,Hex, M10 x 1.5 x 125mm, Cl 8.8

- hex, 10 - 1.5 x 125 mm

4шт.
