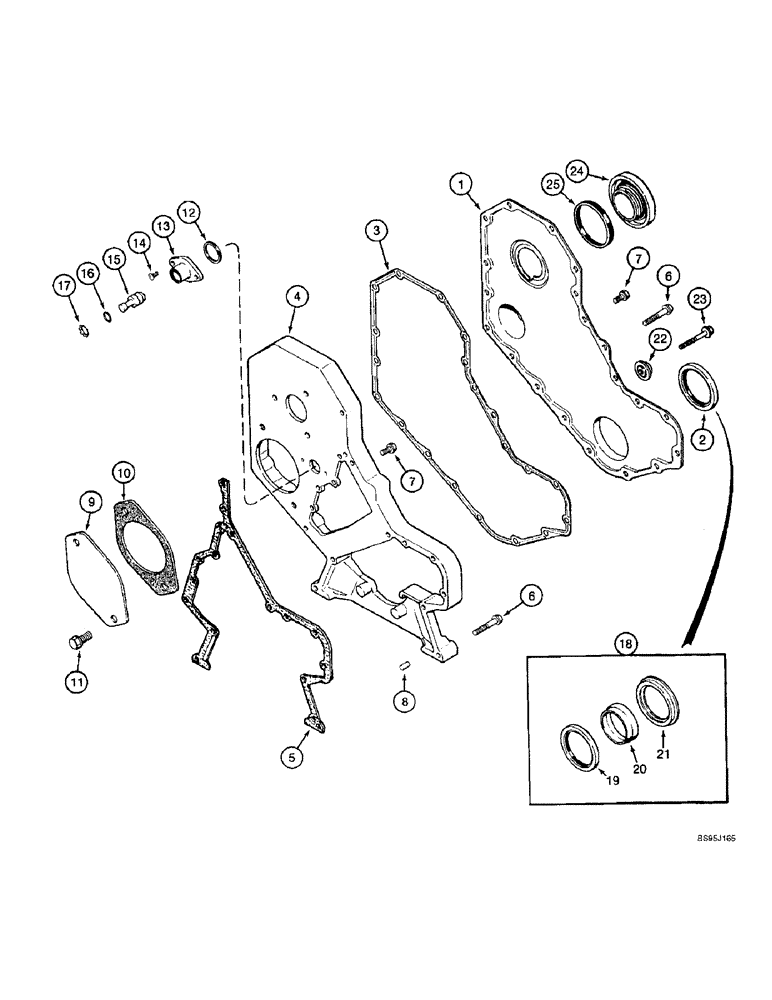

Запчасти Case IH 2144 (2-22) - FRONT GEAR COVER, 6TA-590 ENGINE, PRIOR TO COMBINE S/N JJC0173150 (01) - ENGINE

1

J903794

COVER

- gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, front, order J904353 seal kit, item 18

1шт.

3

J914385

GASKET,1.02mm Thk

- front cover

1шт.

4

J920758

HOUSING

- timing gear

1шт.

5

J916131

GASKET

- gear housing

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 50 mm

10шт.

7

J924962

FLANGE BOLT

BOLT - hex flange, special, 8 - 1.25 x 16 mm (11) for front gear cover to timing gear housing and (5) for timing gear housing to engine block

16шт.

8

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 mm long, locating

2шт.

9

J914868

COVER

PLATE - access cover, flat

1шт.

10

J919601

GASKET

- access cover plate

1шт.

11

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

12

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - quad, timing pin housing

1шт.

13

J919683

HOUSING

- timing pin

1шт.

14

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

15

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

16

J913994

O-RING

- sealing

1шт.

17

100-2587

SNAP RING,0.875", Int, #87

Ring, Snap, , Timing pin (Replaces J904849) 0.875", Int, #87

1шт.

18

J904353

GASKET KIT

KIT - oil seal, crankshaft front, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front

1шт.

20

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

21

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

22

J912772

RETAINER

- bolt

1шт.

23

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 60 mm

1шт.

24

J903463

PLUG,M63 x 5

- front access

1шт.

25

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover

1шт.
