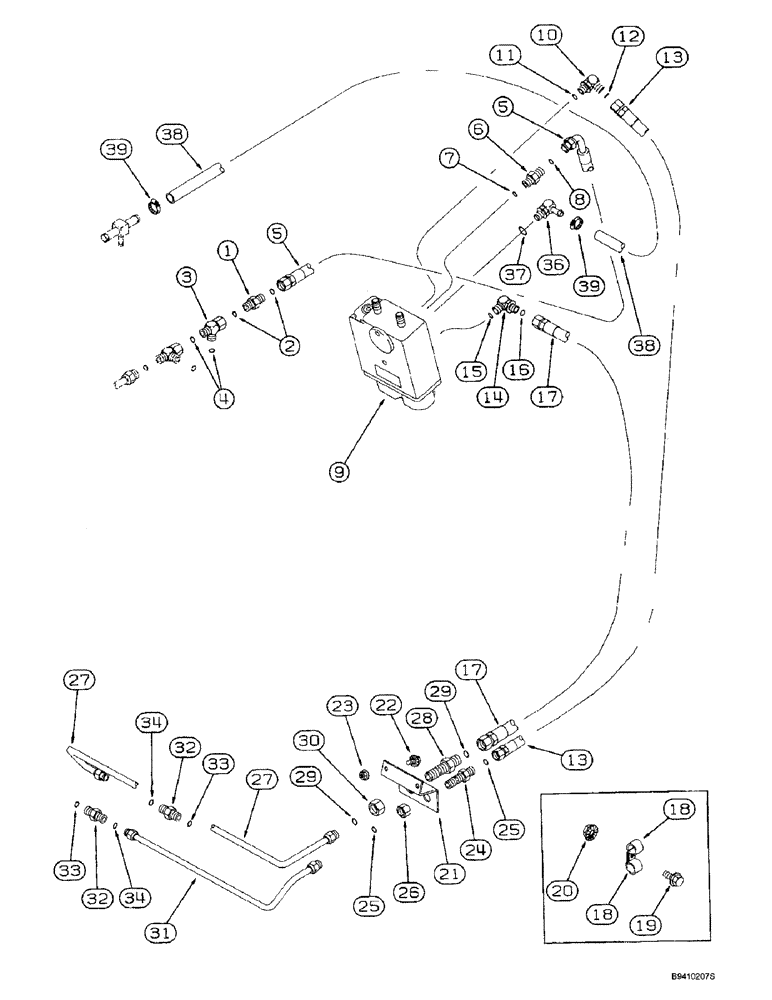

Запчасти Case IH 2144 (7-04) - MASTER BRAKE HYDRAULIC SYSTEM (5.1) - BRAKES

1

235705A1

VALVE

- check, replaces 235705A1 check valve, Includes: Ref. 2

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

3

201-416

TEE,13/16"-16 ORFS x 13/16"-16 Sw Run

- 13/16-16 inch face branch x face x swivel face, Includes: Ref. 4

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

5

128051A1

HOSE

- 2340 mm (92-1/8 inch) long, master brake valve supply

1шт.

6

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

ADAPTER - straight, 13/16-16 face seal x 9/16-18 inch O-ring boss, Includes: Ref. 7 and 8

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

137449A2

BRAKE VALVE

VALVE ASSEMBLY - master brake control, parts list Figure 7-8

1шт.

10

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90 degree, 11/16-16 face seal x 9/16-18 inch adj O-ring boss, Includes: Ref. 11 and 12

1шт.

12

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

13

128058A2

HOSE

- 1980 mm (78 inch) long, valve to left-hand brake

1шт.

14

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90º, 13/16-16 face seal x 9/16-18 inch Adj O-ring boss, Incl Ref 15 and 16

1шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

17

128056A2

HOSE

- 1980 mm (78 inch) long, valve to right-hand brake

1шт.

18

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

P-type 1 7/8", Insul, 1/2" Bolt

2шт.

19

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

21

128542A1

SUPPORT

- brake tube, bulkhead

1шт.

22

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

24

201-120

HYD CONNECTOR,11/16"-16, Blkhd, ORFS

ADAPTER - straight, 11/16-16 inch face seal x bulkhead face seal, Includes: Ref. 25

1шт.

25

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

26

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

NUT, LOCK, Blkhd, 11/16"-16

1шт.

27

128748A1

HYD TUBE

TUBE - brake valve to left-hand brake

1шт.

28

201-121

HYD CONNECTOR,13/16"-16, Blkhd, ORFS

CONNECTOR, HYD, , Includes Ref. 29 13/16"-16, Blkhd, ORFS

1шт.

29

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

30

201-903

TUBE NUT,Blkhd, 13/16"-16

NUT, LOCK, Blkhd, 13/16"-16

1шт.

31

183800A1

TUBE

- brake valve to right-hand brake

1шт.

32

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adapter - straight, Incl Ref. 33 and 34 11/16"-16 ORFS x 9/16"-18 ORB

2шт.

34

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

35

1997983C1

BRAKE ASSY.

BRAKE ASSEMBLY - master, parts list figure7-6, not shown

2шт.

35

1997983C1R

REMAN-BRAKE ASSY.

Reman for New PN 1997983C1

2шт.

35

1997983C1C

CORE-BRAKE ASSY.

Return Number

2шт.

36

217-363

FITTING,90 Degree Elbow, 5/8" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW, 90°, 5/8" Hose x 1 1/16"-12 ORB Beaded

1шт.

37

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

38

128053A1

HYDRAULIC HOSE,15.88 mm ID x 2130.00 mm

- Cut from S118576X bulk hose, Brake return to valve 15.88 mm ID x 2130.00 mm

1шт.

39

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable #10, 0.56/1.06 Type F Worm

2шт.

S118576X

LARGE HOSE,15.88mm ID x 7620mm L

HOSE - bulk, 16 (5/8) ID x 7620 mm (300 inch) long, 5/8 (16) ID x 300 inch (7620 mm) long

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

33

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
