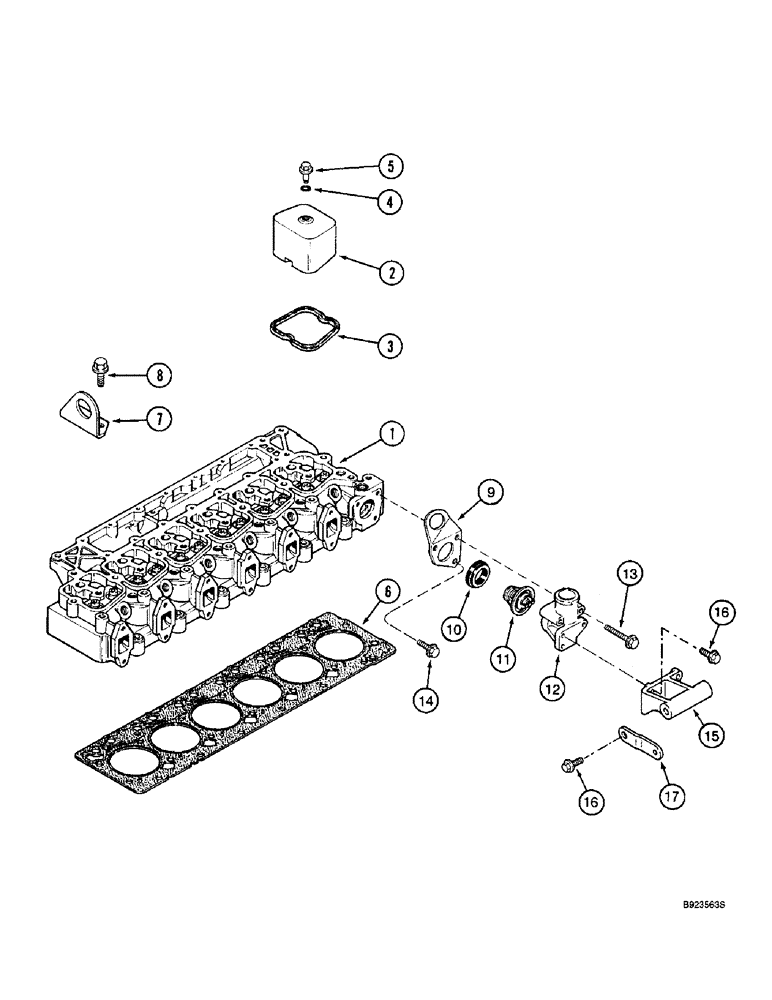

Запчасти Case IH 2144 (2-34) - CYLINDER HEAD COVERS AND GASKET, THERMOSTAT AND HOUSING, 6TA-590 ENGN, BEFORE COMBINE S/N JJC0173150 (01) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, parts list Fig.2-37A

1шт.

2

J902604

COVER

- rocker arm

6шт.

3

J930906

GASKET

SEAL - rocker arm cover (Replaces seal J902666)

6шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt (Replaces O-ring J282133)

6шт.

5

J907049

BOLT,Hex

- hex flange, special, 8 - 1.25 x 21.25 mm

6шт.

6

J283335

GASKET,2.32mm Thk

- head (Replaces gasket J921394)

1шт.

6

J283000

GASKET

- head, 2 notches, 0.25 mm overthick (Replaces gasket J921396)

1шт.

6

J921398

GASKET

- head, 3 notches, 0.50 mm overthick

1шт.

7

J908118

BRACKET

- lifting, rear

1шт.

8

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

9

J903757

BRACKET

- lifting, front, thermostat and housing

1шт.

A77736

THERMOSTAT

KIT - coolant thermostat and housing, Includes: Ref. 10 and 11

1шт.

10

J923331

GASKET

- thermostat housing

1шт.

11

NSS

NOT SOLD SEPARAT

THERMOSTAT - coolant, order kit A77736

1шт.

12

J914409

HOUSING

- thermostat, and housing

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 70 mm, Thermostat and housing

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm, Thermostat and housing

1шт.

15

J917484

BRACE

SUPPORT - alternator mounting, thermostat and housing

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm, Thermostat and housing

4шт.

17

J910924

PLATE

BRACE - alternator mounting (Replaces brace J903104), thermostat and housing

1шт.
