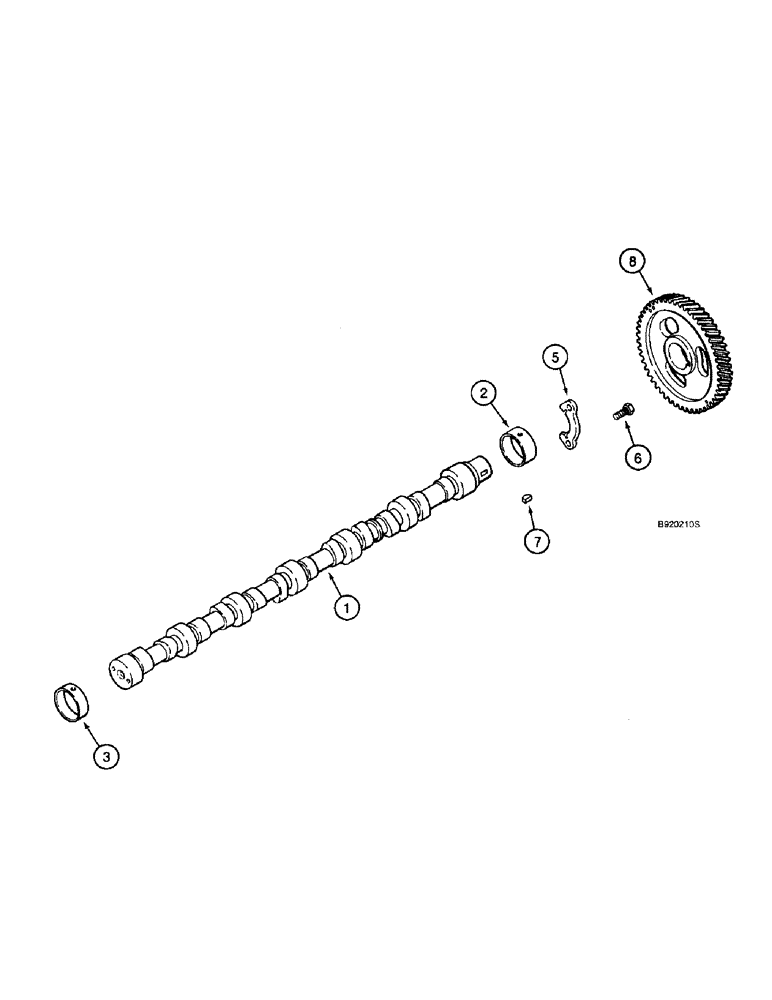

Запчасти Case IH 2144 (2-38) - CAMSHAFT, 6TA-590 ENGINE, PRIOR TO COMBINE P.I.N. JJC0173150 (01) - ENGINE

1

J929042

CAMSHAFT

- engine (Replaces camshaft J914639)

1шт.

J929042R

REMAN-CAMSHAFT

2144 AXIAL-FLOW COMBINE CAMSHAFT, 6TA-590 ENGINE, PRIOR TO COMBINE P.I.N. JJC0173150 (1/95 - 12/97)

1шт.

J929042C

CORE-CAMSHAFT

Return Number

1шт.

2

J901306

BUSHING

- camshaft, front

1шт.

2

J904369

BUSHING

- camshaft, front, oversize, 58 mm OD

1шт.

3

J903242

BUSHING,54.12mm ID x 57.38mm OD x 18mm L

- camshaft, intermediate and rear, service repair only

6шт.

When the intermediate and the rear cylinder block camshaft bores are reamed in engine repair, order and install Ref. 3, J903242 bushings.

1шт.

5

J927155

SUPPORT

- thrust, camshaft

1шт.

6

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

7

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Camshaft gear #6, 5/32" x 5/8", HT

1шт.

8

J929030

PINION

GEAR - camshaft (Replaces gear J907431)

1шт.
