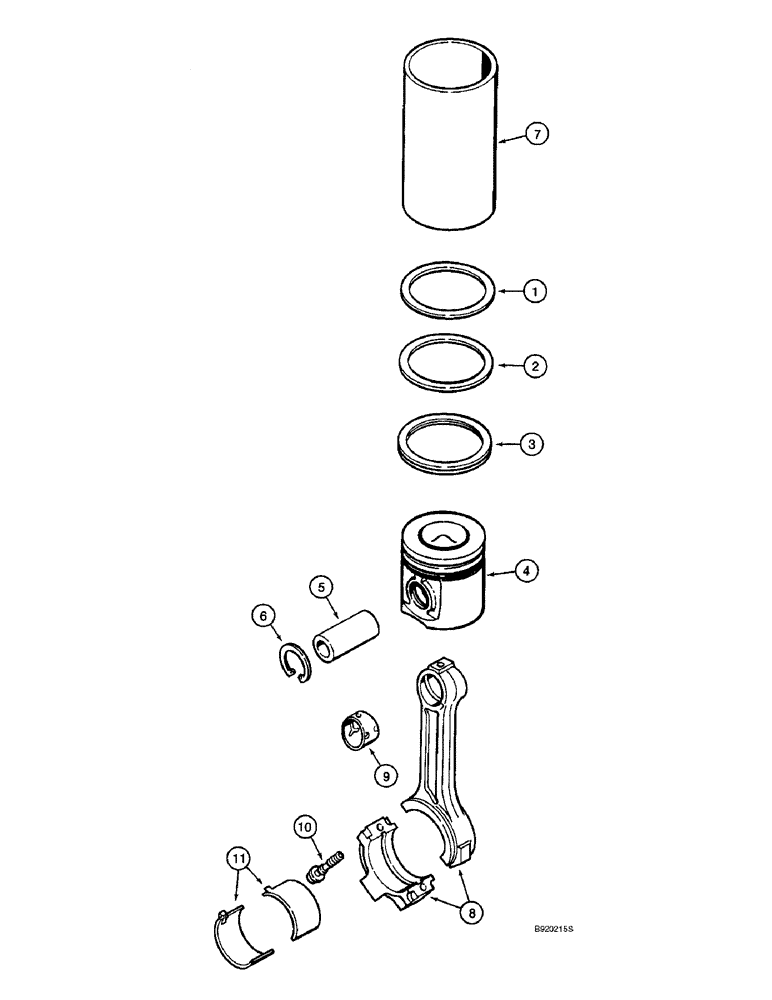

Запчасти Case IH 2144 (2-51A) - PISTON AND CONNECTING ROD, 6TA-590 EMISSIONS CERTIFIED ENGINE, COMBINE S/N JJC0173150 & AFTER (01) - ENGINE

J802760

PISTON

KIT - piston, standard, Includes: Ref. 1 - 6

6шт.

J802750

PISTON RING SET

KIT - ring, standard, Includes: Ref. 1- 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, standard

1шт.

5

J919053

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

- snap

2шт.

J802761

PISTON

KIT - piston, 0.5 mm oversize, Includes: Ref. 1 - 6

6шт.

J802863

PISTON RING SET

KIT - ring, 0.5 mm oversize, Includes: Ref. 1- 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 0.5 mm oversize

1шт.

5

J919053

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

- snap

2шт.

J802762

PISTON

KIT - piston, 1.00 mm oversize, Includes: Ref. 1 - 6

6шт.

J802864

PISTON RING SET

KIT - ring, 1.00 mm oversize, Includes: Ref. 1- 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 1.00 mm oversize

1шт.

5

J919053

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

- snap

2шт.

7

J904166

SLEEVE

LINER - piston, used only in engine block repair, when liner is installed, use A77813 piston kit

1шт.

J925232

ROD, CONNECTING

ROD ASSEMBLY - connecting, new, Includes: Ref. 8 - 10

6шт.

JR925232

ROD

Assembly - connecting, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly

6шт.

JC925232

CORE-ROD CONNECTING

Return Number

6шт.

84145405R

REMAN-CONNECTING ROD

2144 COMBINE S/N JJC0173150 & AFTER (1/95-12/97), Reman For New PN J925232

6шт.

84145405C

CORE-ROD CONNECTING

Return Number

6шт.

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

6шт.

JC942581

CORE-ROD CONNECTING

Return Number

6шт.

JC901569

CORE-ROD CONNECTING

Return Number - use this part number to return connecting rod for credit when using a remanufactured assembly

6шт.

8

NSS

NOT SOLD SEPARAT

ROD - connecting, includes both halves

1шт.

9

J901085

BUSHING

- connecting rod

1шт.

J901085 subs to J941476. J941476 does not use the lube hole in the top of the bushing. Lube grooves are cut in the ID of the bushing to provide lubrication. TS - TSG 06/01

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT - hex, special, connecting rod

2шт.

11

A77465

BEARING SET

KIT - bearing, upper and lower set, standard, connecting rod

6шт.

11

A77466

BEARING SET

KIT - bearing, upper and lower set, 0.25 mm oversize, connecting rod

6шт.

11

A77467

BEARING LINER

KIT - bearing, upper and lower set, 0.50 mm oversize, connecting rod

6шт.

11

A77468

BEARING SET

KIT - bearing, upper and lower set, 0.75 mm oversize, connecting rod

6шт.

11

A77469

BEARING SET

KIT - bearing, upper and lower set, 1.00 mm oversize, connecting rod

6шт.
