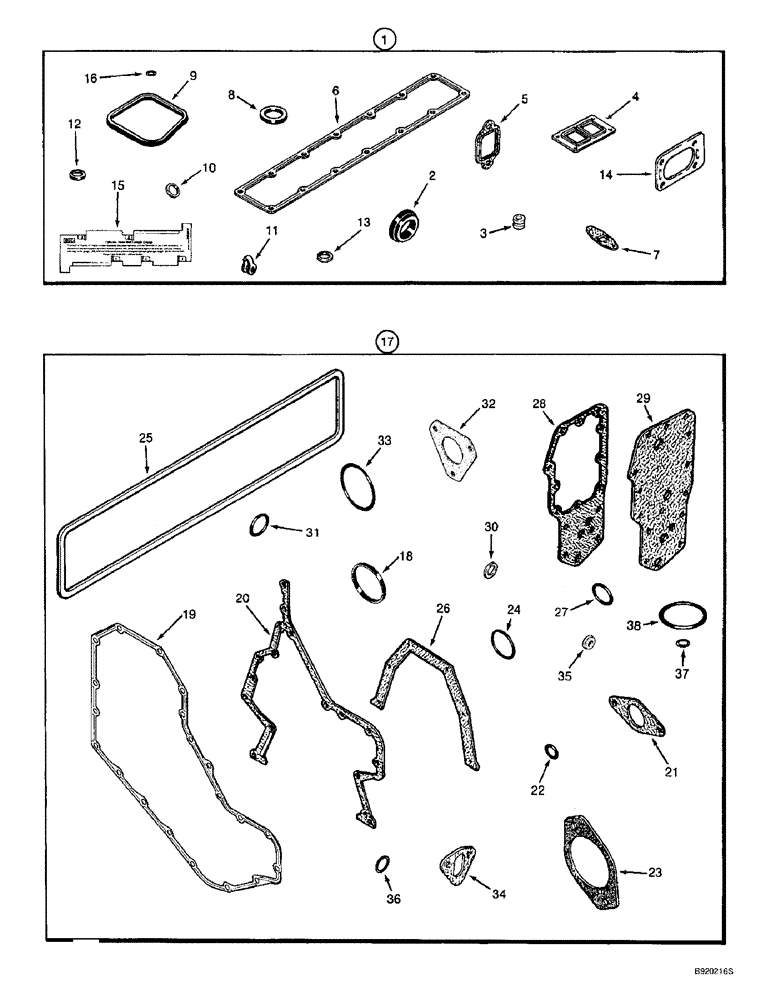

Запчасти Case IH 2144 (2-52) - GASKET KITS, 6TA-590 ENGINE, PRIOR TO COMBINE S/N JJC0173150 (01) - ENGINE

1

A77859

GASKET KIT

KIT - gasket, valve grind (Replaces kit A77793), Includes: Ref. 2 - 16

1шт.

When the valve grind gasket kit is used, also order the required cylinder head gasket, Ref. 6, Figure 2-34.

1шт.

2

J923331

GASKET

- thermostat housing

1шт.

3

J901097

SEAL

- intake and exhaust valves

12шт.

4

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

5

J905443

MANIFOLD GASKET

- exhaust manifold

6шт.

6

J914029

GASKET

- mounting, intake manifold cover

1шт.

7

J928919

GASKET

- turbo oil drain tube (Replaces gasket J914388)

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil fill cap, not used in this application

1шт.

9

J930906

GASKET

SEAL - rocker arm cover (Replaces seal J902666)

6шт.

10

J900808

SEAL

- injector nozzle, 9 mm injector tip, not used in this application

6шт.

11

J903380

SEAL

- connector, fuel return manifold tube

6шт.

12

J906659

SEAL

- injector nozzle, 7 mm injector tip

6шт.

13

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING - sealing, Serial Range: body-nut

6шт.

14

J914856

GASKET,1.02mm Thk

- air crossover connection

1шт.

15

J823921

GAUGE

- cylinder head, bolt length

1шт.

16

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt (Replaces O-ring J282133)

6шт.

16a

J928406

ISOLATOR

- noise, rocker arm cover, not shown

6шт.

17

A77861

GASKET KIT

KIT - gasket, cylinder block (Replaces kit A77674), Includes: Ref. 18 - 38

1шт.

For complete engine overhaul, order (1) valve grind kit, (1) cylinder block kit, Fig. 2-53A (1) oil pan kit, Fig. 2-32, and the required cylinder head gasket, Ref. 6, Figure 2-34.

1шт.

18

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover

1шт.

19

J914385

GASKET,1.02mm Thk

- front cover

1шт.

20

J931351

GASKET

- gear housing

1шт.

21

J905595

GASKET

- timing pin housing, not used in this application

1шт.

22

J913994

O-RING

- sealing

1шт.

23

J929751

GASKET

- access cover plate

1шт.

24

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Water pump to block -341, 70 Duro, 3.475" ID x .210" Thk

1шт.

25

J928832

GASKET

- tappet cover (Replaces gasket J907617)

1шт.

26

J928493

GASKET

- rear cover retainer, crankshaft (Replaces gasket J914386)

1шт.

27

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID, water inlet connection

1шт.

28

J929791

GASKET

- oil cooler core (Replaces gasket J918256)

1шт.

29

J929792

GASKET,1.2mm Thk

- filter head (Replaces gasket J918257)

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug, oil pan

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - 1-1/2 inch (38 mm) ID, not used in this application

1шт.

32

J931607

GASKET

- pump mounting, fuel

1шт.

33

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel, Serial Range: housing-block

1шт.

34

J931348

GASKET

- mounting, fuel transfer pump (Replaces gasket J914304)

1шт.

35

J928759

SEALING WASHER

- cover bolt, tappet

6шт.

36

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Flywheel backing plate plug -212, 70 Duro, .859" ID x .139" Thk

1шт.

37

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID, not used in this application

1шт.

38

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID, not used in this application

1шт.
