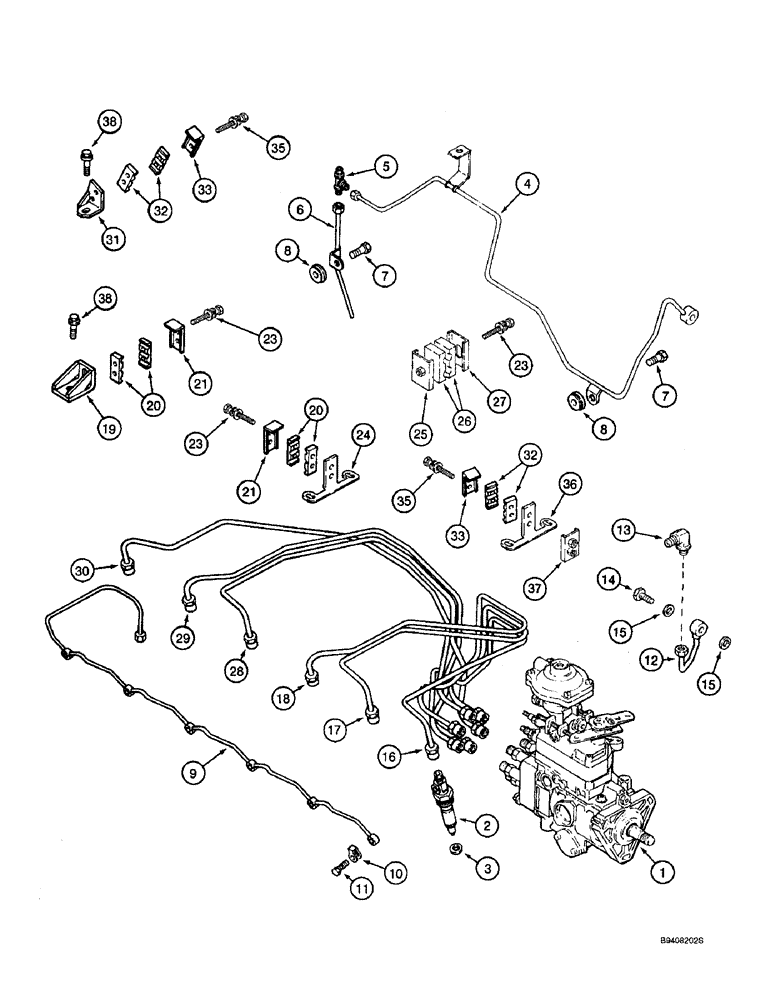

Запчасти Case IH 2144 (3-02) - FUEL INJECTION SYSTEM, 6TA-590 ENGINE, PRIOR TO COMBINE S/N JJC0173150 (02) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, new, parts list Figure 3-6

1шт.

2

J919339

NOZZLE INJECTION

NOZZLE ASSEMBLY - fuel injection, new, 7 mm tip, see Figure 3-8, Includes: Ref. 3

6шт.

2

JR919339

REMAN-FUEL INJECTOR

Remanufactured INJECTION NOZZLE

6шт.

2

JC919339

CORE-FUEL INJECTOR

Return Number, INJECTION NOZZLE

6шт.

3

J906659

SEAL

- injector nozzle, 7 mm injector tip

1шт.

4

J925279

FUEL TUBE,4.76 mm OD x 819.3 mm L

TUBE - fuel drain, fuel pump to tee

1шт.

5

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing, Remove and discard hex nuts before assembly, Fuel drain tubes

1шт.

6

J905692

FUEL TUBE

TUBE - fuel return, tee to fuel tank return

1шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

2шт.

8

J900267

SEAL

- cover bolt

2шт.

9

J909696

TUBE

TUBE - manifold, fuel drain

1шт.

10

J903380

SEAL

- connector

6шт.

11

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special, Fuel return manifold M6 x 1 x 14.3

6шт.

12

J910004

FUEL TUBE,4.76 mm OD x 101.9 mm L

TUBE - injection pump aneroid

1шт.

13

J910265

ELBOW

- male adapter

1шт.

14

J903729

BANJO BOLT,M8 x 1 x 17mm

BOLT - banjo, aneroid tube

1шт.

15

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

- sealing

2шт.

J926387

FUEL TUBE,252, 177.5 mm L

TUBE ASSEMBLY - fuel injector, Includes: Ref. 16 - 27

1шт.

16

J926389

FUEL TUBE,2 mm ID x 6.35 mm OD x 872.5 mm L

TUBE - fuel injector, No. 1 cylinder

1шт.

17

J926390

FUEL TUBE,2 mm ID x 6.35 mm OD x 872.5 mm L

TUBE - fuel injector, No. 2 cylinder

1шт.

18

J926391

FUEL TUBE,2 mm ID x 6.35 mm OD x 872.5 mm L

TUBE - fuel injector, No. 3 cylinder

1шт.

19

J282942

BRACKET

BRACE - fuel tube (Replaces brace J917777)

1шт.

20

J917747

CLAMP

- fuel tube

4шт.

21

J904519

SUPPORT

BRACE - tube retaining

2шт.

23

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

6шт.

24

J925301

BRACE

- tube

1шт.

25

J917717

BRACE

BRACKET - fuel tube

2шт.

26

J917746

CLAMP

- fuel tube

4шт.

27

J904711

SUPPORT

BRACKET - fuel tube

2шт.

J926388

FUEL TUBE,195.4, 160 mm L

TUBE ASSEMBLY - fuel injector, Includes: Ref. 28 - 37

1шт.

28

J926392

FUEL TUBE,2 mm ID x 6.35 mm OD x 872.5 mm L

TUBE - fuel injector, No. 4 cylinder

1шт.

29

J926393

FUEL TUBE,2 mm ID x 6.35 mm OD x 872.5 mm L

TUBE - fuel injector, No. 5 cylinder

1шт.

30

J926394

FUEL TUBE,2 mm ID x 6.35 mm OD x 872.5 mm L

TUBE - fuel injector, No. 6 cylinder

1шт.

31

J917778

BRACE

- fuel tube

1шт.

32

J917747

CLAMP

- fuel tube

6шт.

33

J904519

SUPPORT

BRACE - tube retaining

2шт.

35

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

6шт.

36

J924019

BRACE

- tube

1шт.

37

J917716

BRACE

BRACKET - fuel tube

2шт.

38

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special Hex Flg Hd, M8 x 1.25 x 25

2шт.
