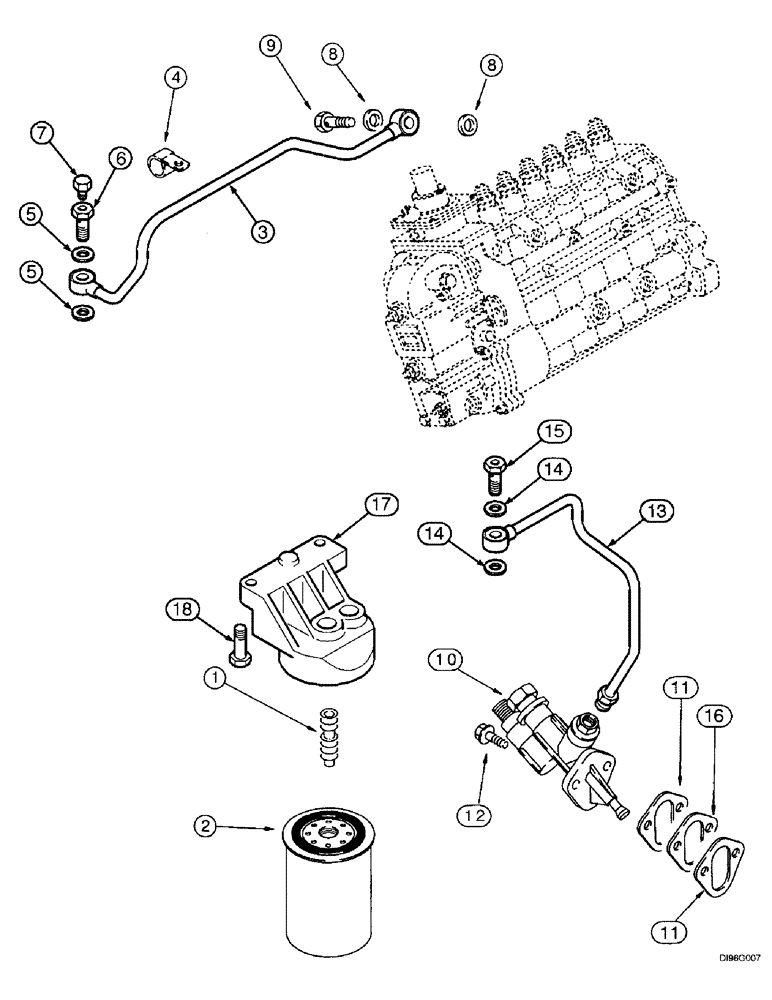

Запчасти Case IH 2144 (3-05A) - FUEL FILTER AND TRANSFER PUMP, 6TA-590 EMISSIONS CERTIFIED ENGINE, COMBINE S/N JJC0173150 AND AFTER (02) - FUEL SYSTEM

1

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

- fuel filter

1шт.

2

J903640

FILTER, FUEL

FILTER - fuel

1шт.

3

J930733

FUEL TUBE,8 mm OD

TUBE - supply, fuel

1шт.

4

J914711

CLIP

CLAMP - P-type

1шт.

5

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, special, Includes: Ref. 6 and 7

1шт.

6

J911446

BANJO BOLT,M12 x 1.5 x 24mm

BOLT, BANJO, M12 x 1.5 x 24

1шт.

7

J905403

CAPTIVE WASHER SCREW,Hex, M6 x 1 x 10mm, Cl 8.8

SCREW - hex, special, vent, order bolt assembly

1шт.

8

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm

2шт.

9

J924725

BANJO BOLT,M14 x 1.5 x 26mm

BOLT - banjo connector

1шт.

10

J930135

FEED PUMP

PUMP - fuel transfer

1шт.

11

J923054

GASKET

- mounting, fuel transfer pump

2шт.

12

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm

2шт.

13

J932176

FUEL TUBE,8 mm OD x 347 mm L

TUBE - supply, fuel pump to fuel filter

1шт.

14

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

15

J916361

BANJO BOLT

BOLT - banjo connector, 12 - 1.5 x 24 mm

1шт.

16

J914284

SPACER

- fuel transfer pump mounting

1шт.

17

J926788

HEAD

- fuel filter

1шт.

18

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm

2шт.
