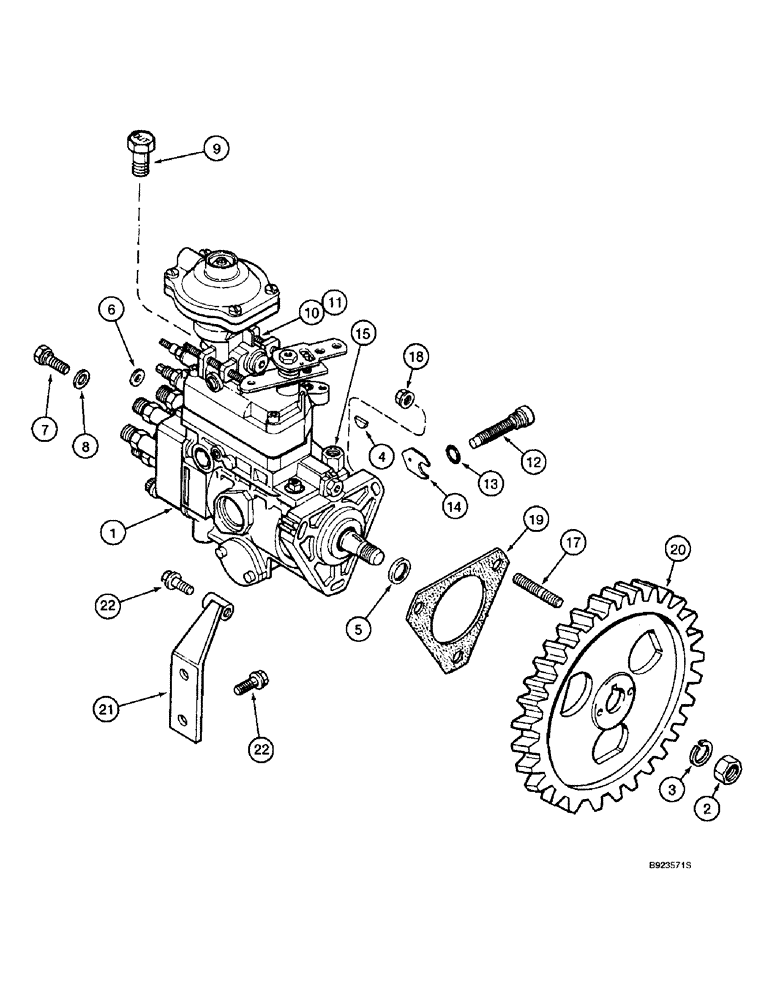

Запчасти Case IH 2144 (3-06) - FUEL INJECTION PUMP AND DRIVE, 6TA-590 ENGINE, PRIOR TO COMBINE S/N JJC0173150 (02) - FUEL SYSTEM

JR924062

REMAN-INJECTION PUMP

PUMP ASSEMBLY - fuel injection, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, prior to combine P.I.N. JJC0172845, no longer available, order new pump assembly

1шт.

JR928910

REMAN-INJECTION PUMP

PUMP ASSEMBLY - fuel injection, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, not yet available, order new pump assembly J928910 below, Serial Range: JJC0172845-JJC0173150

1шт.

JC917502

PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

1

J924062

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new

1шт.

1

J928910

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, Includes: Ref. 2 - 16, Serial Range: JJC0173150-JJC0172845

1шт.

2

J903738

NUT

- hex, special, 14 mm - 2.0

1шт.

3

92-11056

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

4

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

5

J920393

SEAL

- shaft

1шт.

6

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

- delivery valve

6шт.

7

J903572

BLEED SCREW,M8 x 1 x 23.10mm

SCREW - vent

1шт.

8

3053133R1

SEALING RING,M8 x 11.5 x 1

RING - gasket, vent screw

1шт.

9

J905465

BANJO BOLT

BOLT - banjo, overflow

1шт.

10

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

SCREW - low idle stop

1шт.

11

J904783

NUT

- low idle screw

1шт.

12

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

- timing lock

1шт.

13

J904785

O-RING,8 mm ID x 2.5 mm

- timing lock screw

1шт.

14

J904786

PLATE

- timing lock

1шт.

15

J903382

ADAPTER,M12 x 1.5 x M14 x 1.5

ADAPTER - tube

1шт.

16

J905697

SUPPORT

BRACKET - pump support, not shown

1шт.

17

J902501

STUD

- pump mounting, 8 - 1.25 x 48 mm, fuel pump to timing gear housing

3шт.

18

J900589

NUT

- hex flange, special, 8 mm, fuel pump to timing gear housing

3шт.

19

J914389

GASKET

- pump mounting

1шт.

20

J931387

GEAR

- pump drive (Replaces gear J920594)

1шт.

21

J905313

LEVER

BRACE - fuel pump

1шт.

22

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8-1.25 x 20 mm

3шт.
