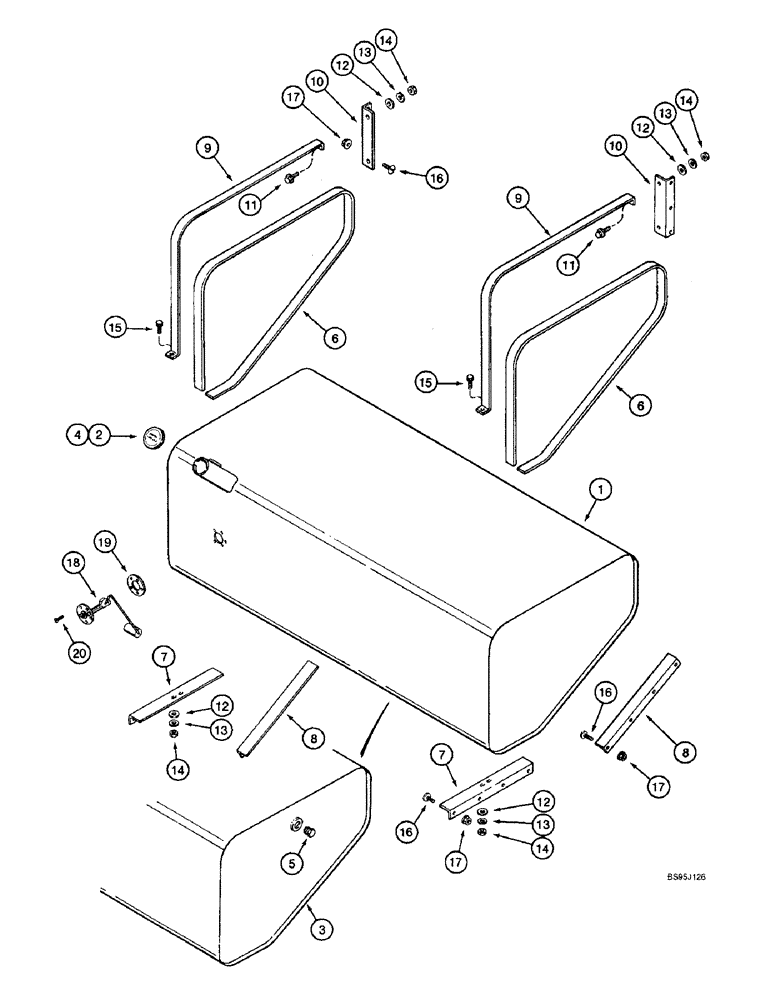

Запчасти Case IH 2144 (3-12) - FUEL TANK AND SUPPORTS (02) - FUEL SYSTEM

1

193550C95

FUEL TANK

TANK ASSEMBLY - fuel, 92-1/2 gallons, Includes: Ref. 2, Serial Range: -JJC0172845

1шт.

2

104781C1

CAP

- fuel tank, non-vented

1шт.

3

197681A2

FUEL TANK

TANK ASSEMBLY - fuel, Includes: Ref. 4, Start Serial: JJC0172845

1шт.

4

104781C1

CAP

- fuel tank, non-vented

1шт.

6

1308798C1

STRIP

- fuel tank support, lining, 72 inch (1829 mm) long, cut from 990541R1 bulk strip below

2шт.

7

192381C3

SUPPORT

ANGLE - lower support

2шт.

8

1302029C1

SUPPORT

ANGLE - front support

2шт.

9

1302031C1

STRAP

SUPPORT - fuel tank retainer

2шт.

10

1302030C1

ANGLE

ANGLE - front

2шт.

11

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

- hex serrated flange, 5/16 NC x 1-1/4 inch

2шт.

12

495-81112

WASHER,.344" x 3/4" x .120"

- flat, 11/32 x 3/4 x 7/64 inch

4шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

15

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

16

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

22-23шт.

16

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

If used Sltd Serr Truss Hd, 5/16"-18 x 1 1/4"

1шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

23шт.

18

198024C1

FUEL GAUGE

SENSOR - fuel level

1шт.

19

168515C1

GASKET,3.05mm Thk

- fuel tank sending unit

1шт.

20

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

990541R1

FIXING STRIP

STRIP - bulk, lining, 1-1/4 (32) wide x 600 inch (15240 mm) long

1шт.
