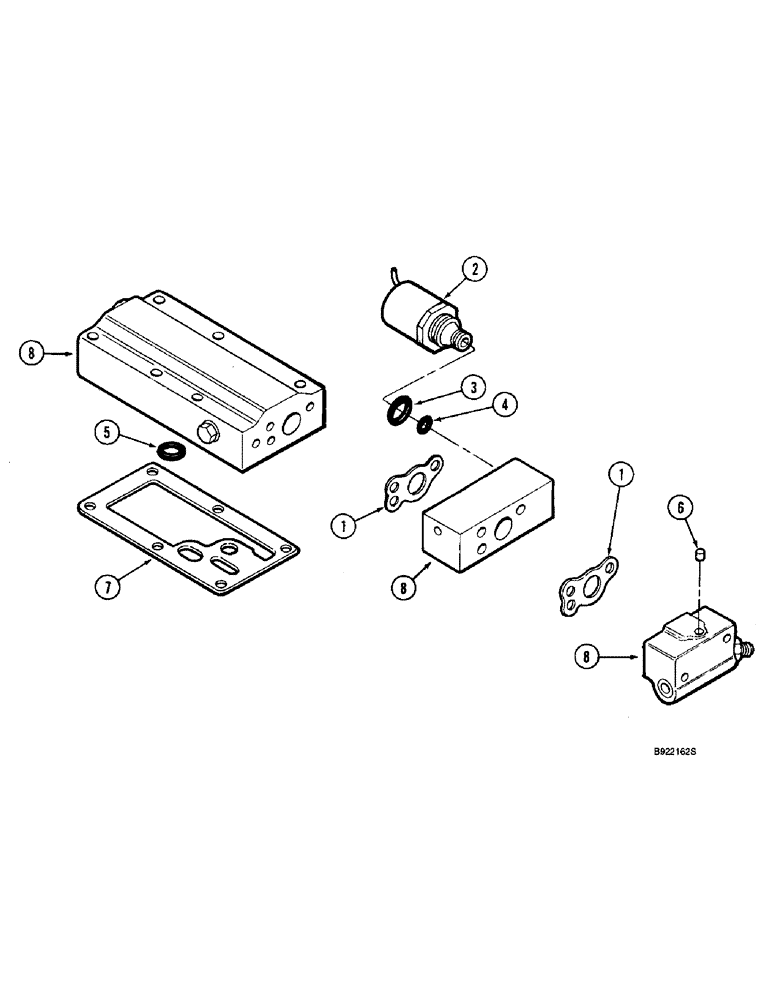

Запчасти Case IH 2166 (6-42) - HYDROSTATIC MOTOR ASSEMBLY, CONTROL VALVE, TWO SPEED, PRIOR TO COMBINE P.I.N. JJC0182025 (03) - POWER TRAIN

192494A1

VALVE

ASSEMBLY - motor control, Includes: Ref. 1 - 8

1шт.

1

1272954C1

GASKET,0.43mm Thk

- valve body

2шт.

Part of control valve body plug service kit P/N 92649C1.

1шт.

2

145338C2

SOLENOID

ASSEMBLY - control valve, Includes: Ref. 3 & 4

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

5

1341840C1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- retaining, orifice (Replaces O-ring 92647C1)

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG - valve body, removed when diagnostic coupler is installed, See Ref. 33 & 34 on Figure 6-40

1шт.

Part of control valve body plug service kit P/N 92649C1.

1шт.

7

145337C1

GASKET

- control valve

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - valve, 3 piece, order valve assembly 192494A1

1шт.

9

226149A1

DIODE

ASSEMBLY - motor, solenoid to lower harness, not included with valve assembly, not shown, See Figure 4-24, Ref. 19 & 20 for illustration, if used, Includes: Ref. 10

1шт.

10

113699A1

RECTIFIER

- locking, 2-5/8 inch long, not shown

1шт.

92649C1

KIT

- service, control valve body plug, Includes: Ref. 1 & 6

1шт.
