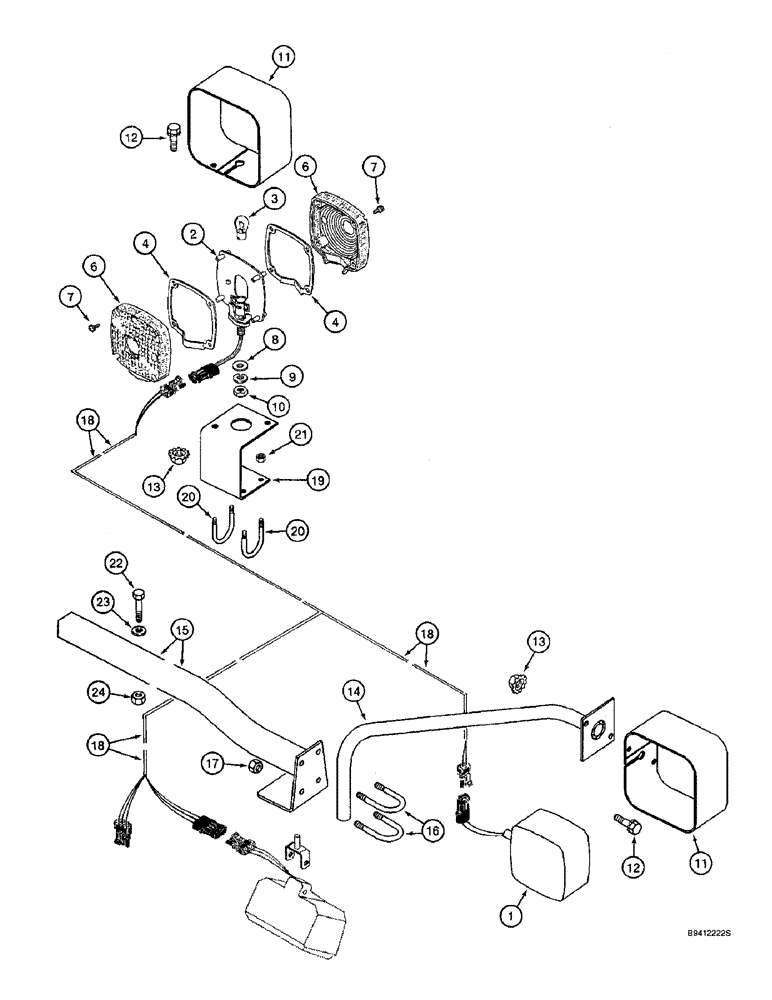

Запчасти Case IH 2166 (4-70) - WIDE AXLE SIDE FLASHERS, 144 INCH & 180 INCH AXLES & EXTENDED DECKS (06) - ELECTRICAL

1

134454A1

LAMP,Halogen, 12V, 32W, Clear

ASSEMBLY - marker, Includes: Ref. 2 - 10

2шт.

2

NSS

NOT SOLD SEPARAT

BODY - lamp, order lamp assembly 134454A1

1шт.

3

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

4

A43731

GASKET

- sealing, lens

2шт.

A44202

KIT

- lens, Includes: Ref. 6 & 7

1шт.

6

NSS

NOT SOLD SEPARAT

LENS - lamp, amber, order kit A44202

2шт.

7

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - self-tapping, round head Phillips, No. 8 NC x 5/8 inch

8шт.

8

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

10

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

1шт.

11

126890A1

SHIELD

- marker lamp

2шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

14

191919A1

SUPPORT

BRACKET - lamp extension, right-hand marker lamp

1шт.

15

192112A1

SUPPORT

BRACKET - lamp mounting, right-hand aftercut lamp, See Figure 4-08 for aftercut lamp

1шт.

16

140374A1

U-BOLT,5/16" - 18 x 41mm W x 47mm L

- marker lamp bracket to aftercut lamp bracket

2шт.

17

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

18

192474A1

WIRE HARNESS

HARNESS - extension, flasher lamps

1шт.

19

192093A1

SUPPORT

BRACKET - lamp mounting, left-hand marker lamp

1шт.

20

188528A1

U-BOLT,1/4" - 20 x 34.80mm W x 44mm L, Gr 5

- special, spring retainer

2шт.

21

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

4шт.

22

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

23

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

24

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.
