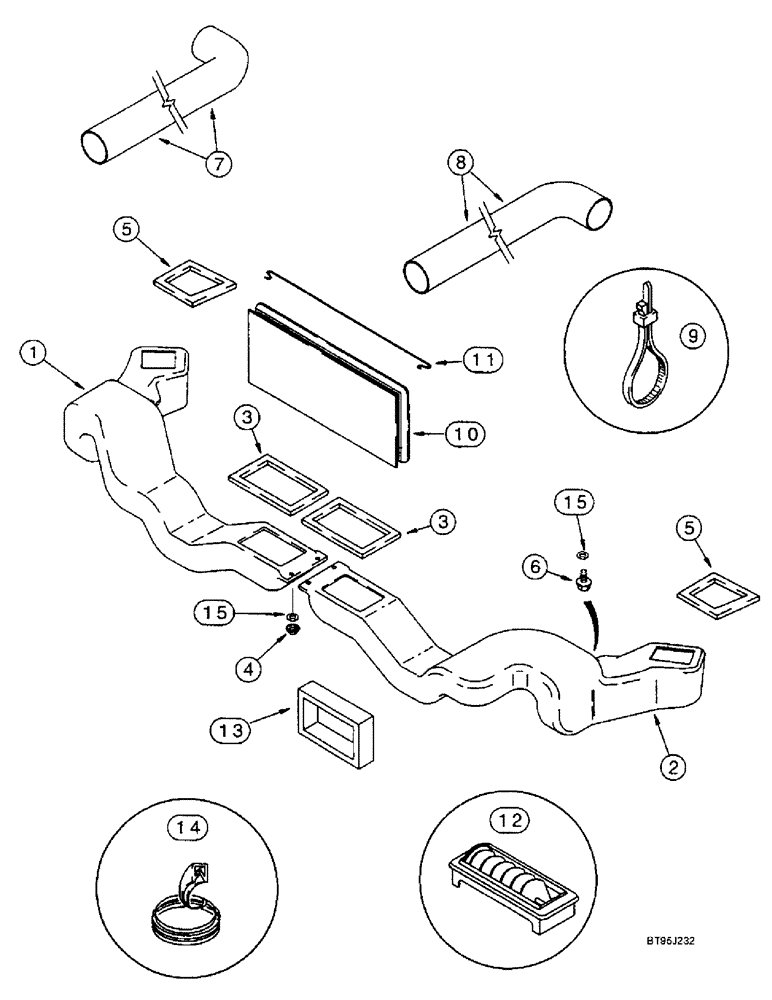

Запчасти Case IH 2166 (9G-40) - HEATING & AIR CONDITIONING SYSTEM, LOUVERS & AIR DUCTS (10) - CAB & AIR CONDITIONING

1

129225A2

AIR DUCT

DUCT, AIR, LH

1шт.

2

129227A2

AIR DUCT

DUCT, AIR, RH

1шт.

3

129228A4

FOAM INSULATION

- air duct

2шт.

4

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

5

196542A1

SEAL

GASKET - air duct, air duct

2шт.

7

1999754C1

AIR HOSE

HOSE - 21-1/16 inch (535 mm) long, prior to combine P.I.N. JJC0182025, cut from 236559A1 bulk hose below

1шт.

7

236561A1

AIR HOSE,63.50 mm ID x 545.00 mm

- Combine P.I.N. JJC0182025, Cut from 236559A1 bulk hose below 63.50 mm ID x 545.00 mm

1шт.

8

179641A1

HOSE

- 27-9/16 inch 700 mm) long, cut from 236559A1 bulk hose below

1шт.

9

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

4шт.

10

120486A2

FILTER

- recirculation

1шт.

11

143486A1

SUPPORT

- recirculation filter

2шт.

12

1990950C1

VENT

LOUVER - bezel

11шт.

13

124999A1

GASKET

- louver, below seat

2шт.

14

1545944C1

SEAL

TRIM - edge, 5 inch (127 mm) long, cut from 1330108CX bulk trim below

2шт.

15

495-81101

WASHER,5.56mm ID x 19.05mm OD x 1.7mm Thk

Flat 7/32" x 3/4" x .060"

6шт.

236559A1

HOSE,63.5mm ID x 1270mm L

63.50 mm ID x 15240.00 mm Bulk

1шт.

1330108CX

SEAL,304.8mm L

TRIM - edge, bulk, 600 inch (15240 mm) long

1шт.

6

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10 x 5/8"

2шт.
