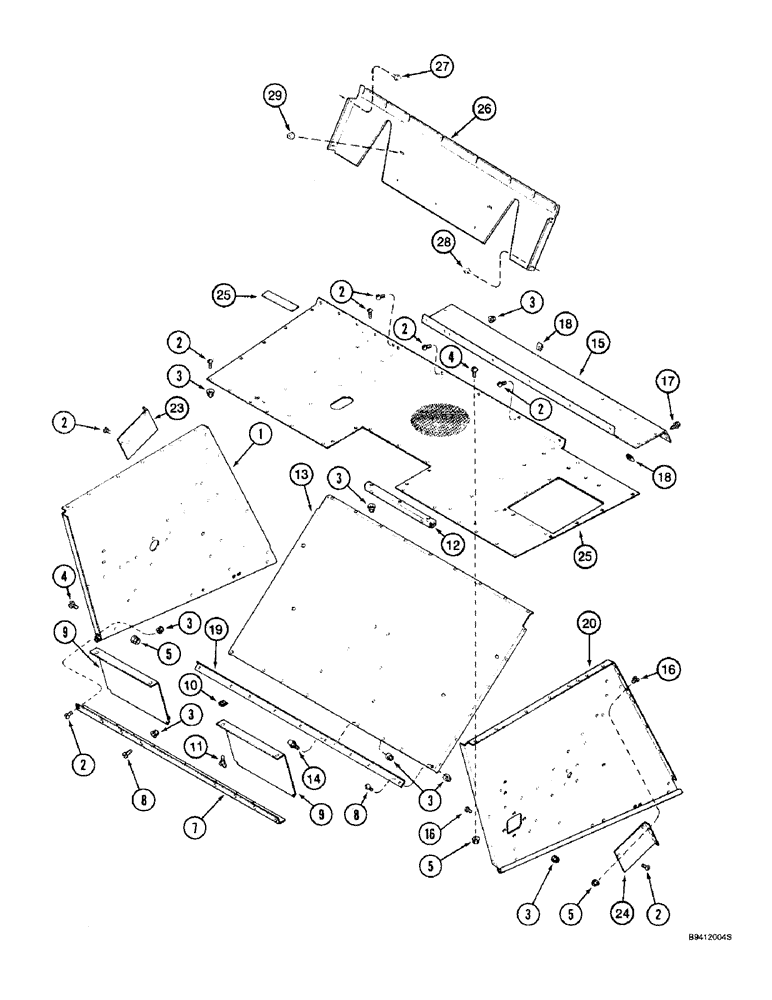

Запчасти Case IH 2166 (9H-08) - SEPARATOR HOOD AND SIDES (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
189800A1
PROTECTION PLATE
SIDE - separator, left-hand, Includes: decals, See Figures 9H-37 and 9H-39 for decals
1шт.
2
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
- serrated slotted truss head, 5/16 NC x 3/4"
1шт.
3
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
1шт.
9
189798A2
COVER
SUPPORT - hood rear access, Includes: decals, See Figures 9H-37 and 9H-39 for decals
2шт.
11
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
- hex serrated flange, 5/16 NC x 3/4 inch
4шт.
14
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
- hex serrated flange, 5/16 NC x 3/4 inch
9шт.
16
SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"
BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch
6шт.
17
199953C1
SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"
SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"
4шт.
27
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
- hex serrated flange, 5/16 NC x 3/4 inch
3шт.
29
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
4шт.
4
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
BOLT - serrated slotted truss head, 3/8 NC x 1 inch
6шт.
