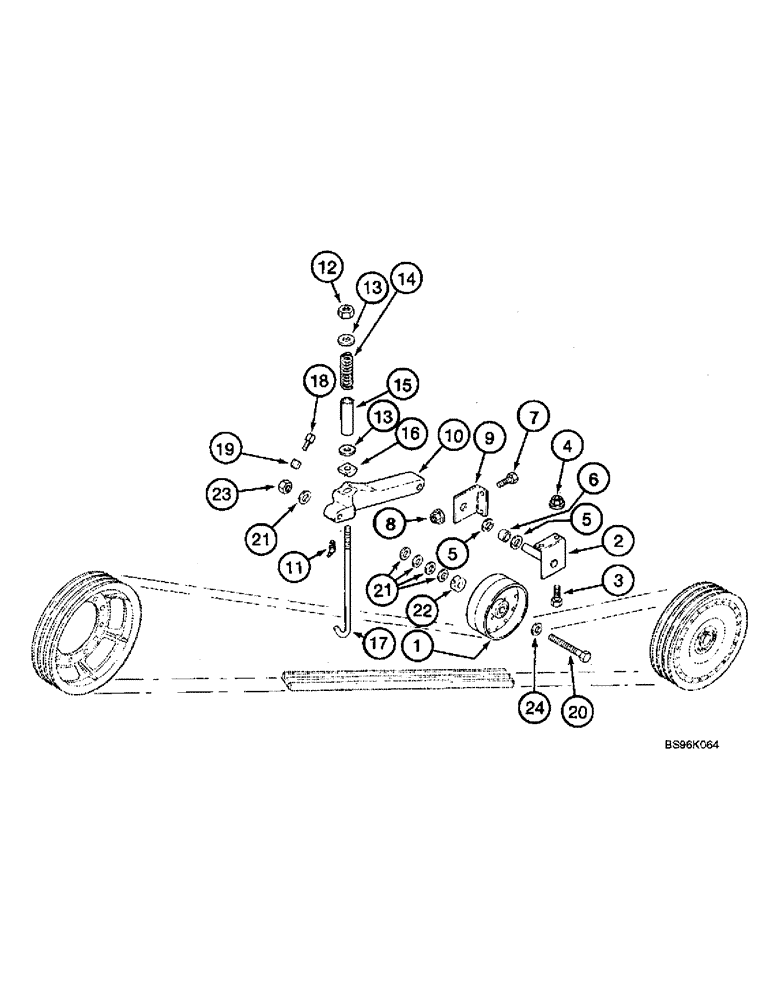

Запчасти Case IH 2166 (9A-28) - FEEDER, JACKSHAFT IDLER PIVOT (13) - FEEDER

1

176579C1

IDLER

- drive tightener, 8 inch OD

1шт.

2

182322C1

SUPPORT

- pivot, idler

1шт.

3

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

2шт.

4

231-5146

FLANGE NUT,3/8"-16

2шт.

5

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

1шт.

6

M74461

SPACER,26.6mm ID x 33.4mm OD x 19mm L

1шт.

7

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

2шт.

8

231-5146

FLANGE NUT,3/8"-16

2шт.

9

182323C1

SUPPORT

- idler

1шт.

10

1321982C1

ARM

- tightener

1шт.

11

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

FITTING - grease, 45 degree, 1/4-28 special taper x 13/16 inch

1шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

13

495-71053

WASHER,13.49mm ID x 44.45mm OD x 2.54mm Thk

- flat, 17/32 x 1-3/4 x 3/32 inch

2шт.

14

PO3A

SPRING

- tightener bolt

1шт.

15

176581C1

SPACER

- spring, adjusting bolt

1шт.

16

194652C1

PIVOT

- rod

1шт.

17

197410C1

BOLT,1/2" - 13 x 17 1/2", Carbon Steel

- idler draw

1шт.

18

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

SCREW - set, square head, 5/16 NC x 1 inch, cup point

2шт.

19

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

20

135260A1

BOLT,Hex W/ Timing Mark, 5/8" - 11 x 5", Gr 5

BOLT - hex, special, 5/8 NC x 5 inch

1шт.

21

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, special, 41/64 x 1-1/2 x 1/8 inch

5шт.

22

1345410C1

BUSHING,16.7mm ID x 35mm OD x 15mm L

- pulley, 17 x 35 x 15 mm

1шт.

23

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

24

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

- flat, 21/32 x 1-1/2 x 3/16 inch, hardened

1шт.
