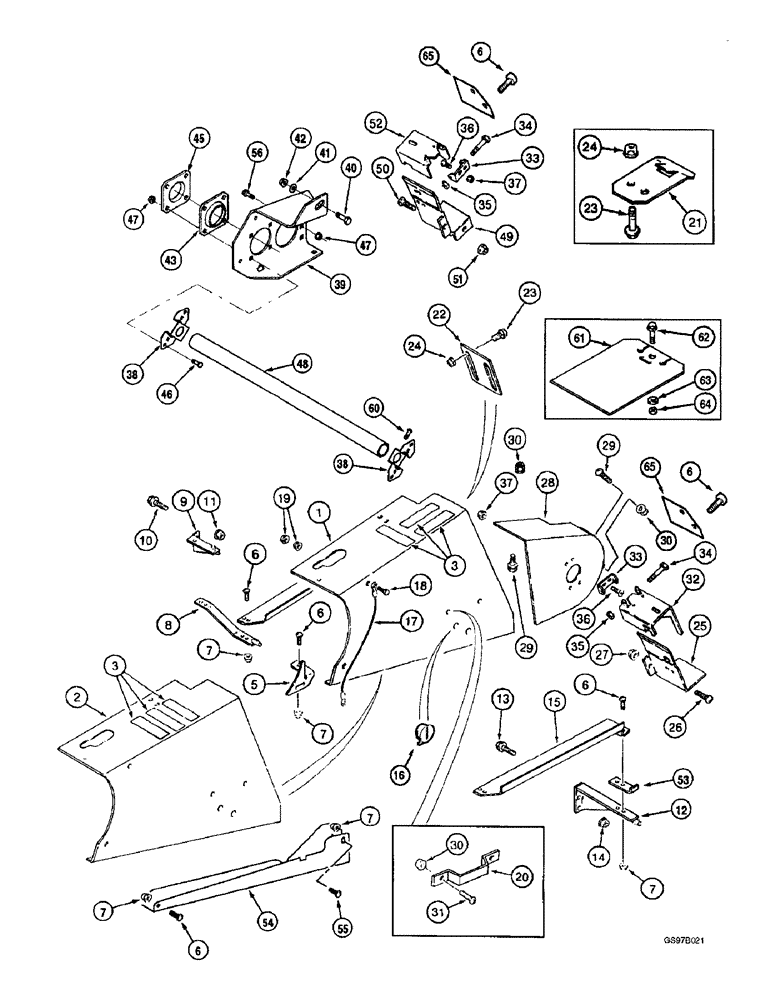

Запчасти Case IH 2166 (9A-31C) - FEEDER, JACKSHAFT DRIVE SHIELDS, COMBINE P.I.N. JJC0182025 & AFTER (13) - FEEDER

1

235863A1

GUARD

SHIELD ASSEMBLY - feeder jackshaft drive, rear, models with 60 inch feeder, Includes: (3) Ref. 3, anti-skid pads and decal 144379A1

1шт.

2

235862A1

GUARD

SHIELD ASSEMBLY - feeder jackshaft drive, rear, models with 54-1/2 inch feeder, Includes: (3) Ref. 3, anti-skid pads and decal 144379A1

1шт.

3

D55216

PAD,2" x 9"

PAD - anti-skid

3шт.

5

186675A2

GUARD

SHIELD - feeder jackshaft drive

1шт.

6

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

1шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

8

1321851C2

SUPPORT

- shield, lower rear

1шт.

9

1327779C1

SUPPORT

- shield, upper rear

1шт.

10

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

3шт.

11

231-5146

FLANGE NUT,3/8"-16

3шт.

12

1321853C2

SUPPORT

- shield, lower front

1шт.

13

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

15

139079A2

SUPPORT

- shield, feeder jackshaft drive, rear, if used

1шт.

16

138699A1

LOCK

LATCH - shield

1шт.

17

132657A2

CABLE

- tether

1шт.

18

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

19

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

20

160638C1

HANDLE

- door, 60 inch feeder

1шт.

21

138179A3

LATCH

- jackshaft, Australia only

2шт.

22

139108A1

PLATE

- sliding shield

1шт.

23

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

25

129901A2

GUARD

SUPPORT - shield, right-hand rear

1шт.

26

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

2шт.

27

231-5146

FLANGE NUT,3/8"-16

2шт.

28

129707A3

PROTECTION PLATE

SHIELD - jackshaft drive, front

1шт.

29

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

31

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

4шт.

32

129714A2

GUARD

SUPPORT - shield, right-hand front

1шт.

33

1345199C1

SUPPORT

HINGE - shield

2шт.

34

413-472

BOLT,Hex, 1/4" - 20 x 4-1/2", Gr 5

- hex, 1/4 NC x 4-1/2 inch

2шт.

35

231-4144

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

36

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

4шт.

37

231-5146

FLANGE NUT,3/8"-16

4шт.

38

240436A2

SUPPORT

BRACKET - jackshaft cover

2шт.

39

239240A2

SUPPORT

- jackshaft bearing, left-hand

1шт.

40

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

41

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

- flat, 21/32 x 1-1/2 x 3/16 inch, hardened

1шт.

42

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

Models with field tracker Flg, USR, 5/8"-11

1шт.

43

241578A1

FLANGE

- bearing, models without field tracker

1шт.

45

241577A1

FLANGE

- bearing, with lubricator

1шт.

46

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch

4шт.

47

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

7шт.

48

240438A2

PLASTIC-RUBBER TUBE,60.3 mm OD

COVER - drive shaft, 1310 mm

1шт.

49

129903A2

GUARD

SUPPORT - shield, left-hand rear

1шт.

50

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

2шт.

51

231-5146

FLANGE NUT,3/8"-16

2шт.

52

129717A1

GUARD

SUPPORT - shield, left-hand front

1шт.

53

235885A1

SUPPORT

- jackshaft shield, latch

2шт.

54

235873A1

SHIELD

- feeder jackshaft, lower, models with 54-1/2 inch feeder

1шт.

54

235874A1

SHIELD

- feeder jackshaft, lower, models with 60 inch feeder

1шт.

55

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

2шт.

56

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch

3шт.

60

282-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW - self-drilling tapping, hex washer head, No. 8-18 x 1 inch

2шт.

61

138180A1

COVER

- rubber, jackshaft end, Australia only

1шт.

62

409-7612

BOLT,3/8"-16 x 1.09" OAL

Australia only Hex Flg, 3/8"-16 x 3/4", Serr

2шт.

63

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), Australia only 3/8"

2шт.

64

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC, Australia only

2шт.

65

138629A1

COVER

- Jackshaft shield, Australia only

2шт.
