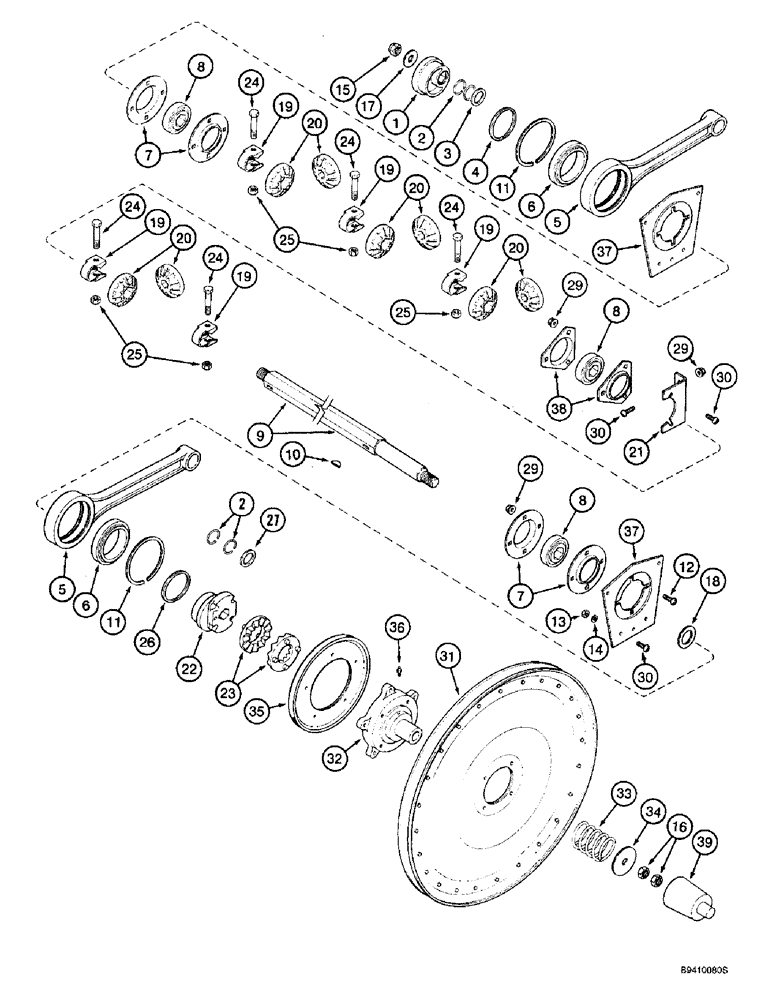

Запчасти Case IH 2166 (9B-34) - SHAKER SHAFT AND AUGER DRIVE (14) - ROTOR, CONCANVES & SIEVE

1

1322573C1

CAM

- shaker shaft, pitman drive, left-hand

1шт.

REF 1 1322573C1. TSG GAVE US THIS NOTE: "KEYWAY IS 5/16 IN THIS CAM. THE WIDTH AND DEPTH HAVE BEEN INCREASED. THE 1/4 INCH KEY PART NO DID NOT CHANGE. THE KEY IS USED FOR TIMIN GONLY AND THE STD KEYWAY TOLERANCES ARE NOT REQUIRED." CNS/CAM 6/19/98

1шт.

2

1322623C1

RETAINER

RING - retaining, internal, 1-13/64 inch

4шт.

3

1330336C1

WASHER,24mm ID x 31.65mm OD x 3mm Thk

- flat, special, 29/32 x 1-1/4 x 1/8 inch

1шт.

4

1979190C1

RETAINER

RING - retaining

1шт.

5

1989251C1

ARM

PITMAN ASSEMBLY - shaker shaft, parts list Figure 9B-36, Ref. 24

2шт.

6

1345226C1

BALL BEARING,80mm ID x 125mm OD x 22mm W

BEARING - ball, shaker shaft, pitman

2шт.

7

181383C1

FLANGED BEARING,72.01mm ID x 122.24mm OD

FLANGE - bearing, shaker shaft

4шт.

8

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING - ball, shaker shaft

3шт.

9

1970192C1

SHAFT

- shaker

1шт.

10

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

11

1322624C1

SNAP RING

RING - retaining, internal, 5-1/8 inch, pitman bearing

2шт.

13

425-106

NUT,3/8"-16, Cl 5

8шт.

14

492-11038

LOCK WASHER,3/8"

16шт.

15

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

16

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NC

2шт.

17

1979580C1

WASHER,19.05mm ID x 44.5mm OD x 11mm L

- shaker cam

1шт.

18

495-81215

WASHER,35.71mm ID x 57.15mm OD x 3.4mm Thk

- flat, 1-13/32 x 2-1/4 x 7/64 inch

1шт.

19

225265R1

CLAMP

- auger bed gear

5шт.

20

1300639C1

GEAR-SET

GEAR SET - auger drive, 14 tooth, no longer available as a unit, order gears separately, Includes: Ref. 20A & 20B

4шт.

20a

191677C1

GEAR

- auger drive, 14 tooth, not shown

4шт.

20b

194194C1

GEAR

- auger drive, 14 tooth, not shown

4шт.

21

186589C1

SUPPORT

- center bearing, auger drive

1шт.

22

1322574C1

CAM

- shaker shaft, pitman drive, right-hand

1шт.

23

B12170

RATCHET,Clutch Slip, 94.49mm

- clutch, shaker shaft drive

2шт.

24

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

5шт.

25

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

5шт.

26

1979190C1

RETAINER

RING - retaining

1шт.

27

1979191C1

WASHER,27mm ID x 31.65mm OD x 3mm Thk

- flat, 1-1/16 x 1-1/4 x 1/8 inch

1шт.

29

231-5146

FLANGE NUT,3/8"-16

5шт.

30

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

8шт.

31

193682C1

PULLEY

- driven, 25 inch OD, shaker shaft, See Figure 9A-04

1шт.

32

1303136C1

HUB

- drive slip clutch, shaker shaft

1шт.

33

19302K

SPRING

- shaker shaft drive slip clutch

1шт.

34

388418C1

SPECIAL WASHER,19.84mm ID x 81.28mm OD x 6.35mm Thk

- special, slip clutch retainer (Replaces washer 167521H1)

1шт.

35

566516R92

PULLEY,256.46mm OD

- drive, 9-3/4 inch OD

1шт.

36

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

37

1302221C1

PLATE

- shaker shaft

2шт.

38

180955C1

FLANGED BEARING,0.375"

FLANGE - bearing, center shaker shaft

2шт.

39

182544C1

SHIELD

- shaker shaft spring

1шт.

12

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

8шт.
