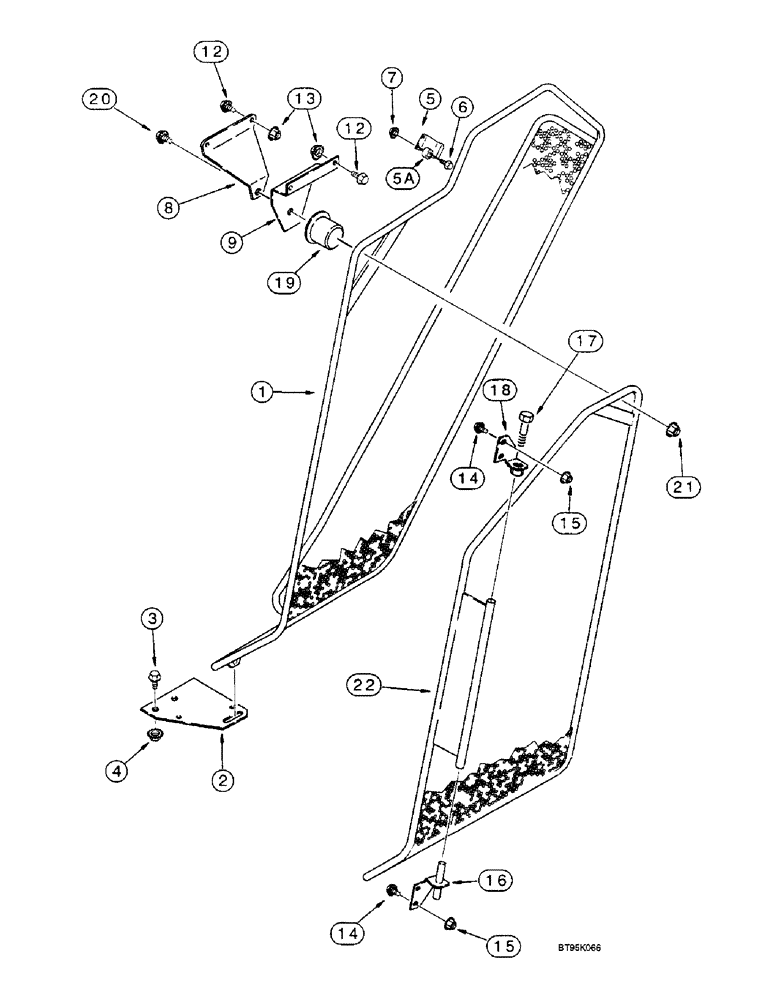

Запчасти Case IH 2166 (9C-16) - RIGHT-HAND FAN INLET SHIELD AND DOOR (15) - BEATER & CLEANING FANS

1

143651A1

SHIELD

- inlet, right-hand

1шт.

2

142450A2

SUPPORT

BRACKET - fan inlet shield, lower

1шт.

3

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch

2шт.

4

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

5

142451A2

SUPPORT

BRACKET - fan inlet shield, side

1шт.

5a

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

2шт.

6

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

- hex serrated flange, 5/16 NC x 1-1/4 inch

2шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

8

143664A2

SUPPORT

BRACKET - fan inlet shield, outer

1шт.

9

143666A2

SUPPORT

BRACKET - fan inlet shield, inner

1шт.

12

409-7612

BOLT,3/8"-16 x 1.09" OAL

6шт.

13

231-5146

FLANGE NUT,3/8"-16

6шт.

14

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

16

143680A2

SUPPORT

- door, lower hinge

1шт.

17

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

18

143676A2

SUPPORT

- door, upper hinge

1шт.

19

142455A1

TUBE,13.5 mm ID

SUPPORT - shield, right hand

1шт.

20

409-7812

BOLT,Hex Flg, 1/2" - 13 x 3/4", Spcl

- hex serrated flange, 1/2 NC x 3/4 inch

1шт.

21

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

22

189391A1

GUARD

SHIELD - door, right-hand, Includes: decals, See Figure 9H-37 for decals

1шт.
