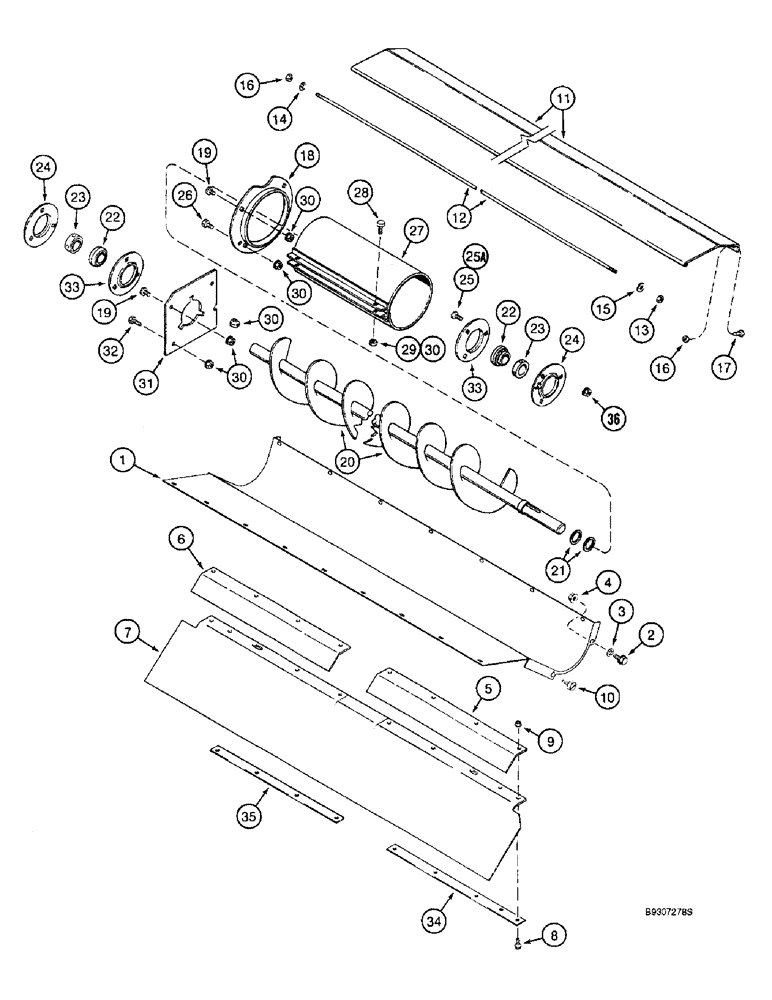

Запчасти Case IH 2166 (9D-26) - TAILINGS AUGER TROUGH (16) - GRAIN ELEVATORS & AUGERS

1

1346956C1

TROUGH

- auger

1шт.

2

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

6шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

7шт.

3

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

15шт.

5

1347436C2

ANGLE

RETAINER - rear chaffer seal, left-hand, upper

1шт.

6

1347437C2

ANGLE

RETAINER - rear chaffer seal, right-hand, upper

1шт.

7

1346999C1

RUBBER SEAL,3.05mm Thk

- chaffer

1шт.

8

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

9

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

8шт.

10

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

4шт.

11

185195C1

DOOR

- trough

1шт.

12

185198C1

ROD

- door

1шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

15

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

16

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, Flg, 5/16"-18

10шт.

17

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

9шт.

18

160324C2

FLANGE

- mounting

1шт.

19

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

5шт.

20

144021A1

AUGER

- tailings

1шт.

21

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

- flat, 1-9/32 x 1-3/4 x 1/16 inch, if used

1шт.

22

156011C92

BALL BEARING

BEARING - ball, auger

2шт.

23

557995R11

COLLAR

- bearing, with set screw

2шт.

24

939460R91

FLANGE

- bearing

2шт.

25a

477-73832

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 2"

BOLT - serrated slotted truss head, 3/8 NC x 2 inch (Replaces screw 117657A1)

1шт.

26

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

2шт.

27

192693C1

CLAMP

- extension, non-perforated

1шт.

27

195078C1

SCREEN

- extension, perforated

1шт.

28

424-516

BOLT,Hex, 5/16" - 18 x 1", Gr 2

- hex, 5/16 NC x 1 inch, grade 2, used with 192693C1 non-perforated clamp

2шт.

28

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch, used with 195078C1 perforated clamp

2шт.

29

231-4115

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC, Used with 192693C1 non-perforated clamp

2шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, Two used with 195078C1 perforated clamp

10шт.

31

183158C1

COVER

PLATE - bearing support

1шт.

32

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

33

939461R1

FLANGE

- bearing

2шт.

34

1338343C2

RETAINER

- rear chaffer seal, lower left-hand

1шт.

35

1338344C2

RETAINER

- rear chaffer seal, lower right-hand

1шт.

36

231-5146

FLANGE NUT,3/8"-16

6шт.

25

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

5шт.
