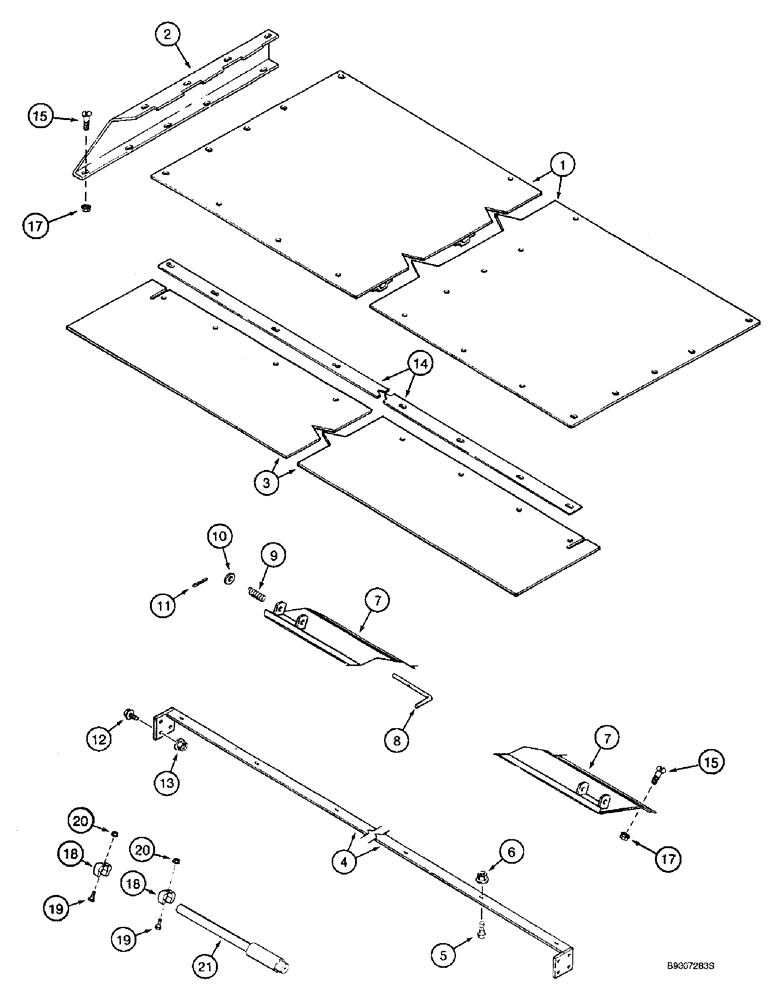

Запчасти Case IH 2166 (9D-28) - TAILINGS AUGER TROUGH PANEL AND GATE, MODELS WITH STRAW SPREADER (16) - GRAIN ELEVATORS & AUGERS

1

1970519C1

SHEET ASSY.

PANEL - tailings return

1шт.

2

1346963C1

SUPPORT

- tailings support pan

1шт.

3

1347000C1

SEAL

- tailings panel

1шт.

4

1970532C1

SUPPORT

- tailings door

1шт.

5

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

7

186909C2

HOOD

GATE - trough

1шт.

8

186736C3

ROD

PIN - latch

2шт.

9

540815R2

SPRING

- latch pin

2шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

11

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

6шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

7шт.

14

122850A1

STRAP

- retainer, panel seal

1шт.

15

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

14шт.

15

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

13шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

34шт.

18

106744A1

CLIP

- retainer

2шт.

19

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch

2шт.

20

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

21

106743A1

HANDLE

- extension

1шт.
