(9E-06) - GRAIN TANK EXTENSIONS

Запчасти Case IH 2166 (9E-06) - GRAIN TANK EXTENSIONS (17) - GRAIN TANK & UNLOADER

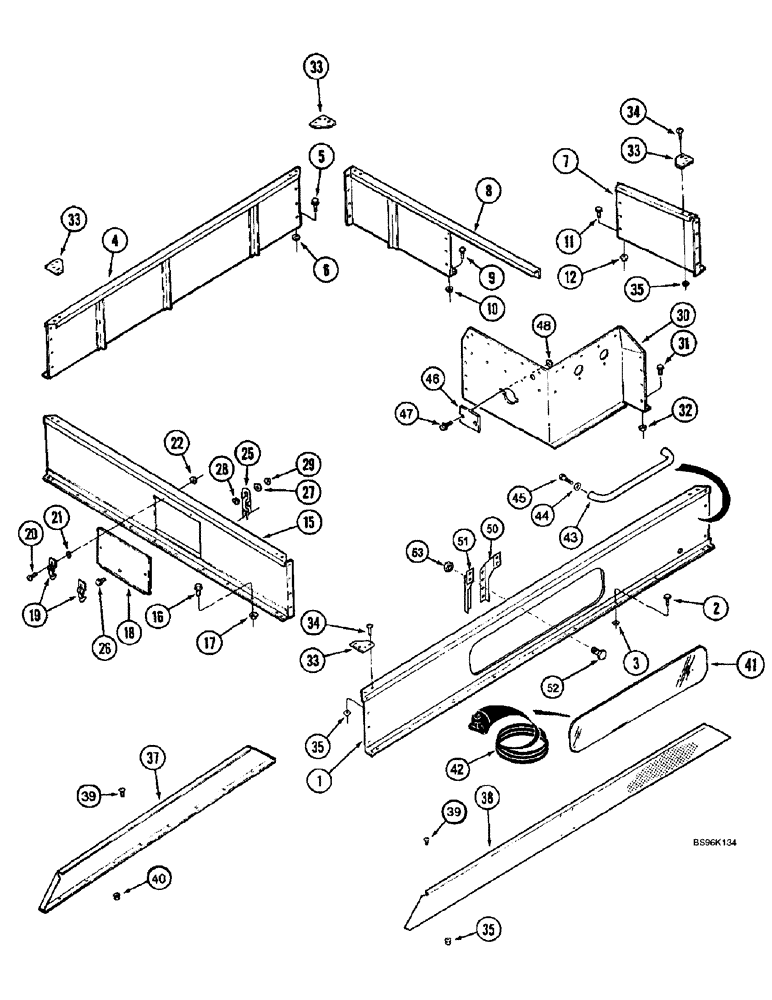

Схема запчастей Case IH 2166 - (9E-06) - GRAIN TANK EXTENSIONS (17) - GRAIN TANK & UNLOADER
34
42
35
2
52
5
3
33
26
39
20
45
12
37
25
15
1
35
34
9
26
39
29
27
18
33
53
48
33
7
40
4
17
19
46
22
10
11
41
38
51
8
31
35
6
32
16
47
21
30
33
44
50
43
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

189460A2

SUPPORT

- grain tank, front

1шт.

2

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

23шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

23шт.

4

1327590C5

SHIELD

EXTENSION - grain tank, rear

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

19шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

19шт.

7

1321813C2

GUARD

EXTENSION - grain tank, left-hand front

1шт.

8

1321810C1

EXTENSION

- grain tank, left-hand rear

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

20шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

20шт.

11

409-7612

BOLT,3/8"-16 x 1.09" OAL

5шт.

12

231-5146

FLANGE NUT,3/8"-16

5шт.

15

1327639C2

EXTENSION

- grain tank, right-hand

1шт.

16

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

12шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

12шт.

18

1327644C2

PLATE

DOOR - extension

1шт.

19

167800C1

CLIP

- door retaining clip

2шт.

20

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

- machine, pan head slotted, No. 10 NC x 3/4 inch

2шт.

21

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

22

225-14110

NUT,#10-24

2шт.

25

167570C1

CHAIN,203.2mm L

- latch

1шт.

26

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

2шт.

27

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

28

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

29

231-4144

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

30

1317644C2

SUPPORT

- center extension

1шт.

31

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

6шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

33

1321757C1

PLATE

BAR - extension

4шт.

34

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

16шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

16шт.

37

183157C3

SUPPORT

- front extension, rice

1шт.

38

183276C2

SUPPORT

- rear extension, rice

1шт.

39

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

15шт.

40

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

15шт.

41

184957A1

GLASS

- window, grain tank

1шт.

42

188214A1

SEAL, GLASS

MOULDING - glass, grain tank

1шт.

43

178621A1

RAMP

HANDRAIL - grain tank

1шт.

44

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

- flat, 11/32 x 1-1/4 x 1/16 inch

2шт.

45

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

46

1317645C2

PLATE

COVER - bearing hole

1шт.

47

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

48

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

49

198820C1

GROMMET

- plug, if used, not shown

2шт.

50

241682A1

SUPPORT

BRACKET - level sensor, left-hand

1шт.

51

241683A1

SUPPORT

BRACKET - level sensor, right-hand

1шт.

52

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

53

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.
