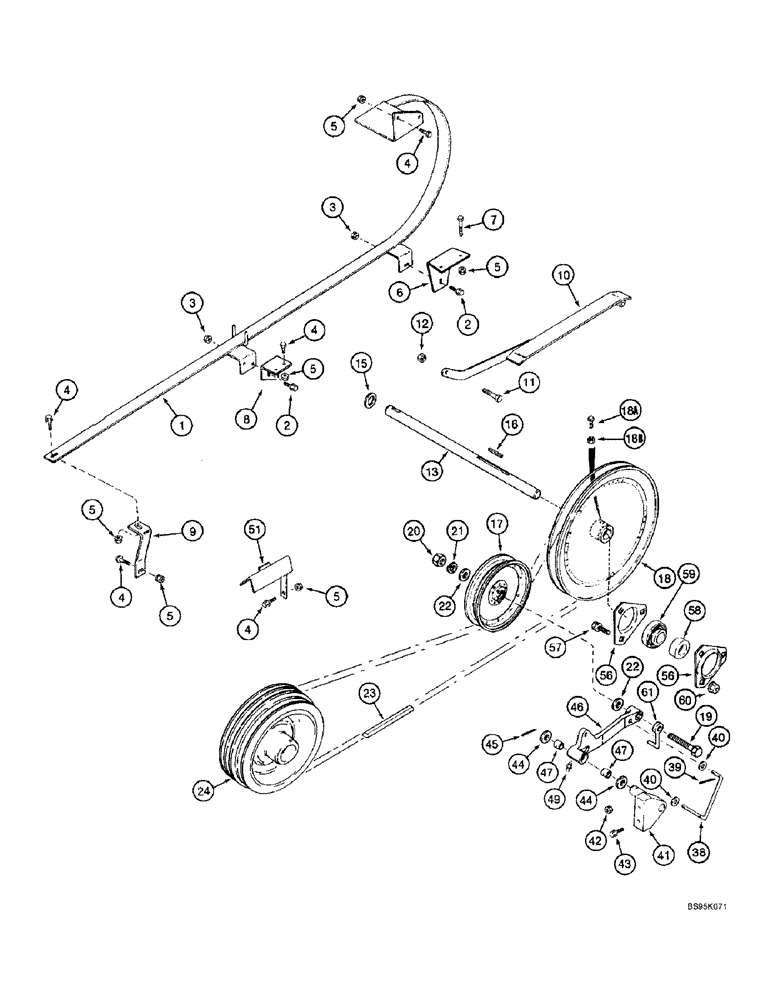

Запчасти Case IH 2166 (9E-12) - GRAIN TANK UNLOADER, BELT DRIVE (17) - GRAIN TANK & UNLOADER

1

126536A2

GUIDE

- belt, unloader

1шт.

2

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

4

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

5

231-5146

FLANGE NUT,3/8"-16

8шт.

6

192870C2

SUPPORT

ANGLE - support, front

1шт.

7

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

2шт.

8

126540A1

SUPPORT

ANGLE - center support, belt guide

1шт.

9

126542A1

SUPPORT

ANGLE - lower rear support, belt guide

1шт.

10

196917A1

GUIDE

- belt

1шт.

11

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

12

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

1шт.

13

1347494C1

SHAFT

- unloader jackshaft pulley

1шт.

14

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2", Not shown

1шт.

15

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

- flat, 1-9/32 x 1-3/4 x 1/16 inch

1шт.

16

586879R1

KEY

- square parallel, 5/16 x 2 inch

1шт.

17

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

- drive, 8 inch OD

1шт.

18

1994762C2

PULLEY

- driven, unloader jackshaft

1шт.

18a

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

SCREW - set, square head, 5/16 NC x 1 inch, cup point

2шт.

18b

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

19

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

- hex, 5/8 NC x 3-1/4 inch

1шт.

20

425-1010

NUT,5/8"-11, G5

1шт.

21

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

22

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

2шт.

23

191290C1

V-BELT,22.32 mm W x 3409.89 mm L

V-BELT , Drive, Unloader 22.32 mm W x 3409.89 mm L

1шт.

24

122949A1

PULLEY

- drive, auxiliary pump, See Figure 8-20 for related parts

1шт.

38

193820C1

ROD

- retainer

1шт.

39

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

40

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch

4шт.

41

191464C3

SUPPORT

- tightener arm

1шт.

42

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

43

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

- hex serrated flange, 5/16 NC x 1-1/4 inch

2шт.

44

495-81039

WASHER,25/32" x 1 1/4" x .120"

- flat, 25/32 x 1-1/4 x 7/64 inch

3шт.

45

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

46

112008A1

ARM

ASSEMBLY - belt tightener, Includes: Ref. 47

1шт.

47

382638R2

BUSHING,19.07mm ID x 22.24mm OD x 19.05mm L

- arm, 3/4 ID x 7/8 OD x 3/4 inch wide

2шт.

49

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

51

126549A1

SUPPORT

- belt guide, upper

1шт.

56

180955C1

FLANGED BEARING,0.375"

FLANGE - bearing

2шт.

57

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

58

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

BEARING - ball

1шт.

59

455104R11

COLLAR

- locking, bearing

1шт.

60

231-5146

FLANGE NUT,3/8"-16

3шт.

61

194894C1

ROD

- belt, tighener

1шт.
