(2-29A) - TURBOCHARGER ASSEMBLY, 6TA-830 EMISSIONS CERTIFIED ENGINE, COMBINE P.I.N. JJC0180000 AND AFTER

Запчасти Case IH 2166 (2-29A) - TURBOCHARGER ASSEMBLY, 6TA-830 EMISSIONS CERTIFIED ENGINE, COMBINE P.I.N. JJC0180000 AND AFTER (01) - ENGINE

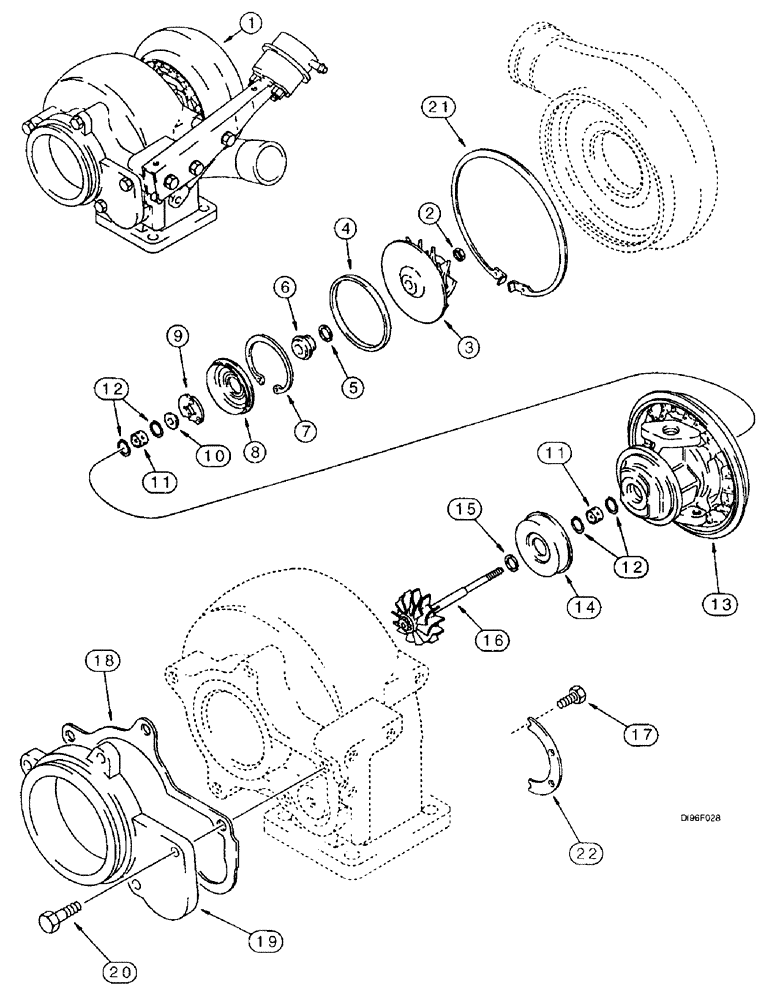

Схема запчастей Case IH 2166 - (2-29A) - TURBOCHARGER ASSEMBLY, 6TA-830 EMISSIONS CERTIFIED ENGINE, COMBINE P.I.N. JJC0180000 AND AFTER (01) - ENGINE
11
14
4
19
7
8
13
18
9
12
1
2
12
10
17
20
16
3
5
11
15
22
21
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

JR537127

REMAN-TURBOCHARGER

TURBOCHARGER ASSEMBLY - engine, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 2 - 22

1шт.

JC537127

CORE-TURBOCHARGER

RETURN NUMBER - use this part number to return turbocharger core for credit when using a remanufactured assembly

1шт.

1

J537127

TURBOCHARGER

ASSEMBLY - engine, new, Includes: Ref. 2 - 22

1шт.

J535324

CARTRIDGE

CENTER HOUSING ASSEMBLY - turbocharger, Includes: Ref. 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

NUT - lock

1шт.

Part of turbocharger overhaul kit P/N J575169.

1шт.

3

NSS

NOT SOLD SEPARAT

IMPELLER - turbocharger

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - O-ring

1шт.

Part of turbocharger overhaul kit P/N J575169.

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - split ring

1шт.

Part of turbocharger overhaul kit P/N J575169.

1шт.

6

NSS

NOT SOLD SEPARAT

SLINGER - oil

1шт.

7

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Part of turbocharger overhaul kit P/N J575169.

1шт.

8

NSS

NOT SOLD SEPARAT

BAFFLE - oil

1шт.

Part of turbocharger overhaul kit P/N J575169.

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING - turbocharger thrust

1шт.

Part of turbocharger overhaul kit P/N J575169.

1шт.

10

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING - turbocharger

2шт.

Part of turbocharger overhaul kit P/N J575169.

1шт.

12

NSS

NOT SOLD SEPARAT

RING - retaining

4шт.

Part of turbocharger overhaul kit P/N J575169.

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - bearing turbine

1шт.

14

NSS

NOT SOLD SEPARAT

SHIELD - turbine heat

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - split ring

1шт.

Part of turbocharger overhaul kit P/N J575169.

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR AND SHAFT - turbocharger

1шт.

17

J759917

SET SCREW

SCREW - set, hex head

6шт.

Part of turbocharger overhaul kit P/N J575169.

1шт.

18

J535243

GASKET,0.25mm Thk

- adapter

1шт.

19

J528010

ADAPTER

- connection (Replaces adapter J533030)

1шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

5шт.

21

J533163

SNAP RING

RING - retaining

1шт.

22

J534309

PLATE

- clamping

2шт.

J575169

REPAIR KIT

KIT - overhaul, turbocharger, Includes: Ref. 2, 4, 5, 7 - 9, 11, 12, 15 and 17

1шт.
